Toyota Camry

1982-10 → 1986-10 · chassis SV1#,CV1# · catalogue 281220 · Europe

Discontinued model Data version 1987-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Vacuum Piping

7 part groups · 5 illustrations

Illustrations

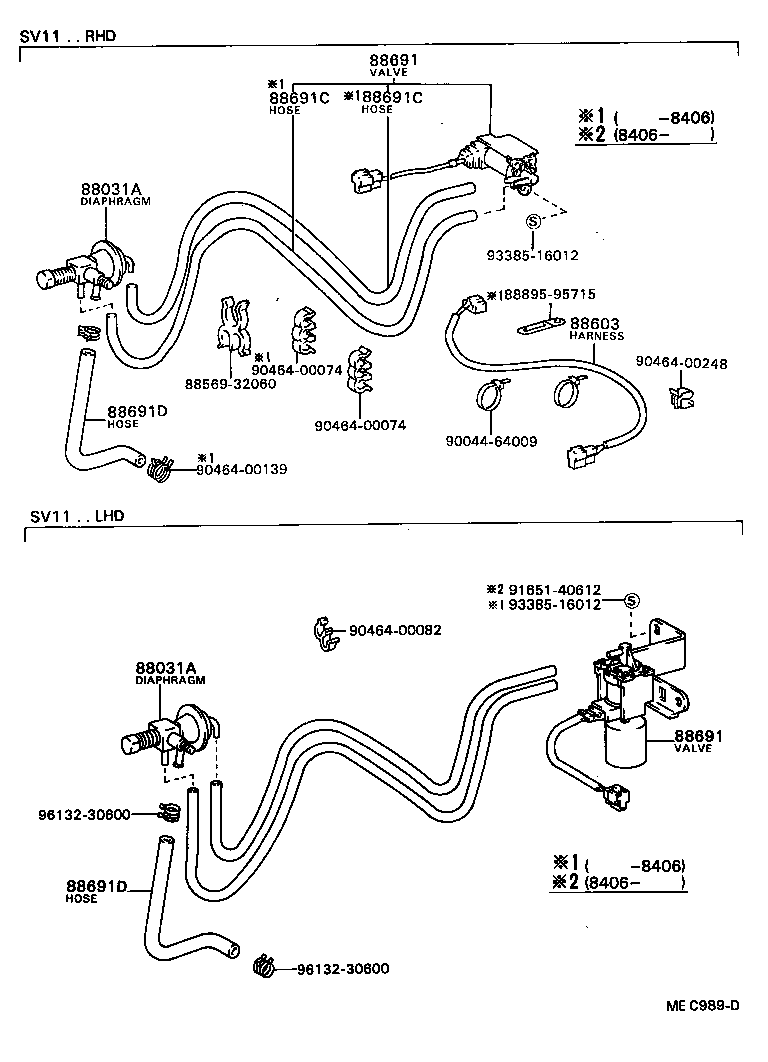

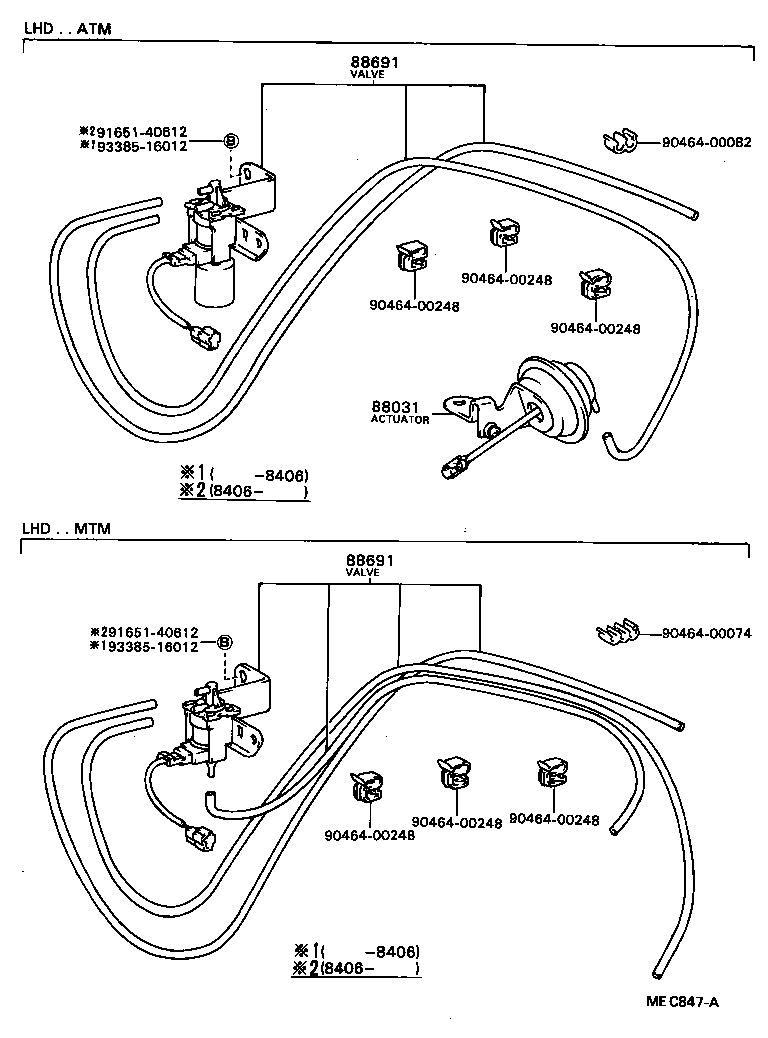

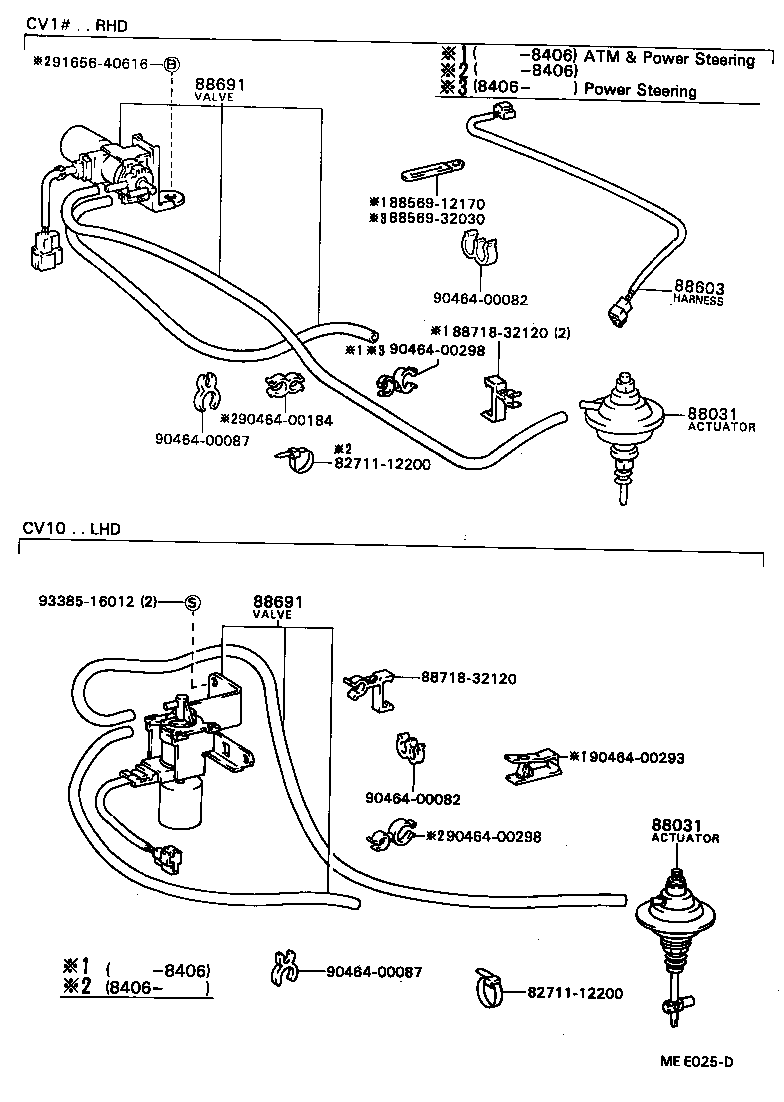

Figure MEC273C MEC273C 1982-10 → — Figure MEC847A MEC847A 1982-10 → — Figure MEC989D MEC989D 1982-10 → — Figure MEE025D MEE025D 1983-08 → — Figure MEG207A MEG207A 1985-08 → —

Part groups

PNCDescription
88031 Actuator Set, Idle-up
88031A Diaphragm Sub-assy, Idle-up Actuator
88603 Wire, Idle UP Device
88645B Joint, NO.1 (FOR IDLE UP DIVICE)
88691 Valve, Magnet (FOR IDLE UP DEVICE)
88691C Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
88691D Hose, Vacuum (FOR IDLE UP DIVICE), NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
