Toyota Camry
1982-10 → 1986-10 · chassis SV1#,CV1# · catalogue 281220 · Europe
Discontinued model
Data version 1987-03
Heating & Air Conditioning - Compressor
32 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|

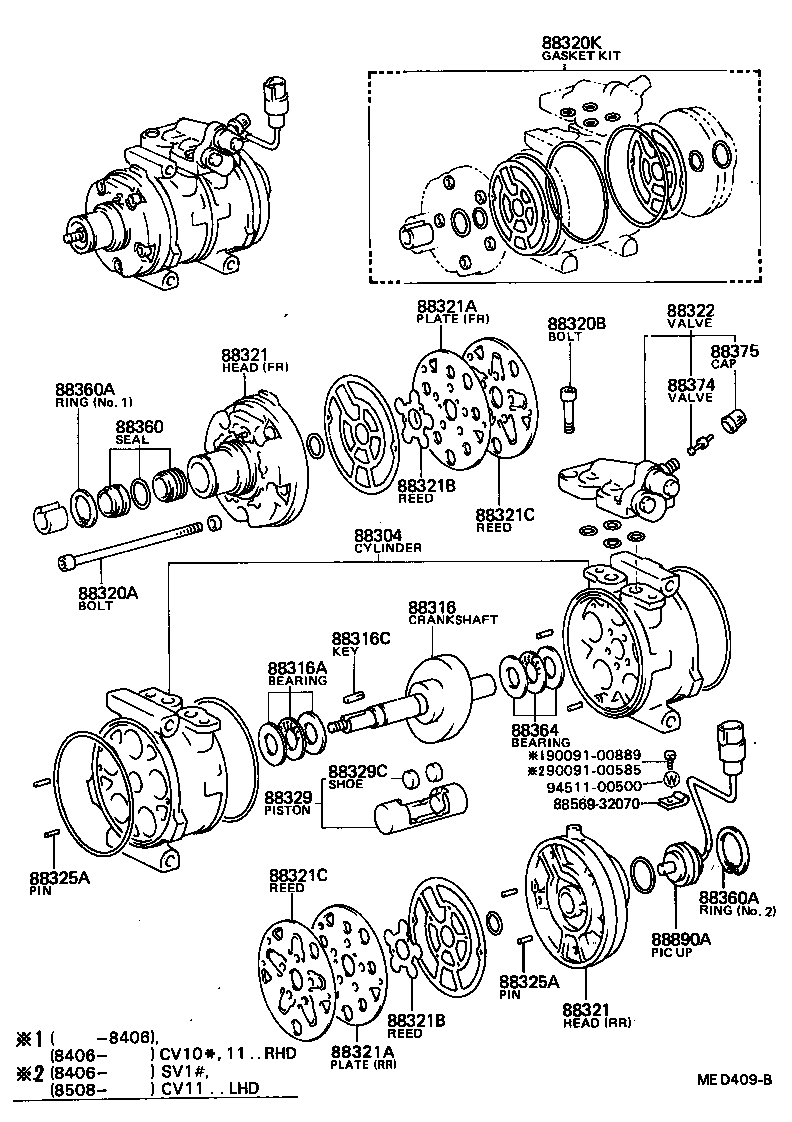

| 88301 | Rotor Sub-assy, Magnet Clutch |
| 88302 | Stator Sub-assy, Magnet Clutch |
| 88304 | Cylinder Sub-assy, Cooler Compressor |
| 88316 | Crankshaft, Cooler Compressor |
| 88316A | Bearing, Compressor Crankshaft, Front |
| 88316C | Key, Compressor Crankshaft |
| 88320 | Compressor Assy, Cooler |
| 88320A | Bolt, Through |
| 88320B | Bolt, Service Valve |
| 88320K | Gasket Kit, Cooler Compressor Overhaul |
| 88321 | Head, Cooler Compressor Cylinder |
| 88321A | Plate Sub-assy, Valve |
| 88321B | Reed Sub-assy, Valve |
| 88321C | Reed, Suction Valve |
| 88322 | Valve, Cooler Compressor Suction Service |
| 88325A | Pin, Cylinder Block |
| 88329 | Piston Sub-assy, Cooler Compressor |
| 88329C | Shoe, Piston |
| 88330 | Clutch Assy, Magnet |
| 88330B | Bearing, Magnet Clutch |
| 88330C | Ring, Snap (FOR MAGNET CLUTCH) |
| 88360 | Seal Assy, Cooler Compressor Shaft |
| 88360A | Ring, Compressor Seal Plate Snap |
| 88364 | Bearing, Compressor Crankshaft, Rear |
| 88374 | Valve, Cooler Compressor Service |
| 88375 | Cap, Cooler Compressor Service Valve |
| 88403 | Hub Sub-assy, Magnet Clutch |

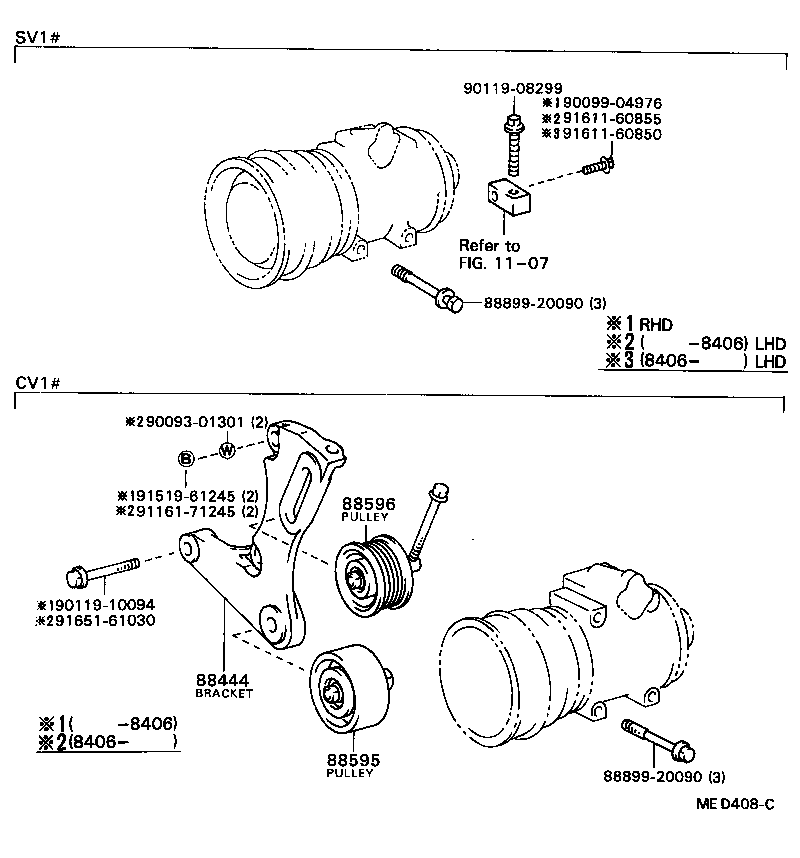

| 88444 | Bracket, Idle Pulley |
| 88595 | Pulley, Cooler Compressor Idle |
| 88596 | Pulley Assy, Idle, NO.2 |
| 88648F | Wire, Magnet Clutch |
| 88890A | Pick UP, Assy |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
