Toyota Camry

1983-01 → 1986-07 · chassis SV1#,CV1# · catalogue 281420 · Europe

Discontinued model Data version 1987-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

13 part groups · 2 illustrations

Illustrations

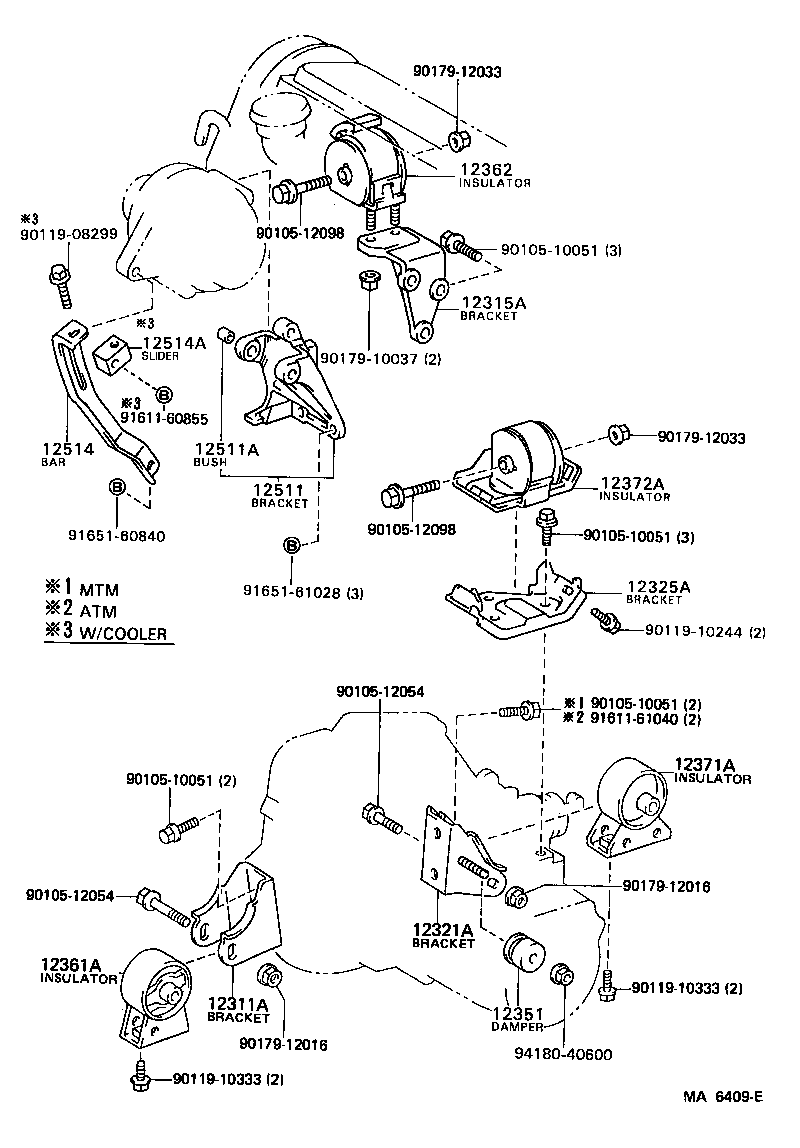

Figure MA6911F MA6911F 1983-08 → — Figure MA6409E MA6409E 1983-01 → —

Part groups

PNCDescription
12311A Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
12315A Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
12321A Bracket, Engine Mounting, Rear(FOR TRANSVERSE ENGINE)
12325A Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
12351 Damper, Engine Mounting
12361A Insulator, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
12362 Insulator, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
12371A Insulator, Engine Mounting, Rear
12372A Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
12511 Bracket, Alternator, NO.1
12511A Bush, Alternator Bracket
12514 Bar, Alternator Belt Adjusting
12514A Slider, Fan Belt Adjusting
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
