Toyota Camry

1983-01 → 1986-07 · chassis SV1#,CV1# · catalogue 281420 · Europe

Discontinued model Data version 1987-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

23 part groups · 4 illustrations

Illustrations

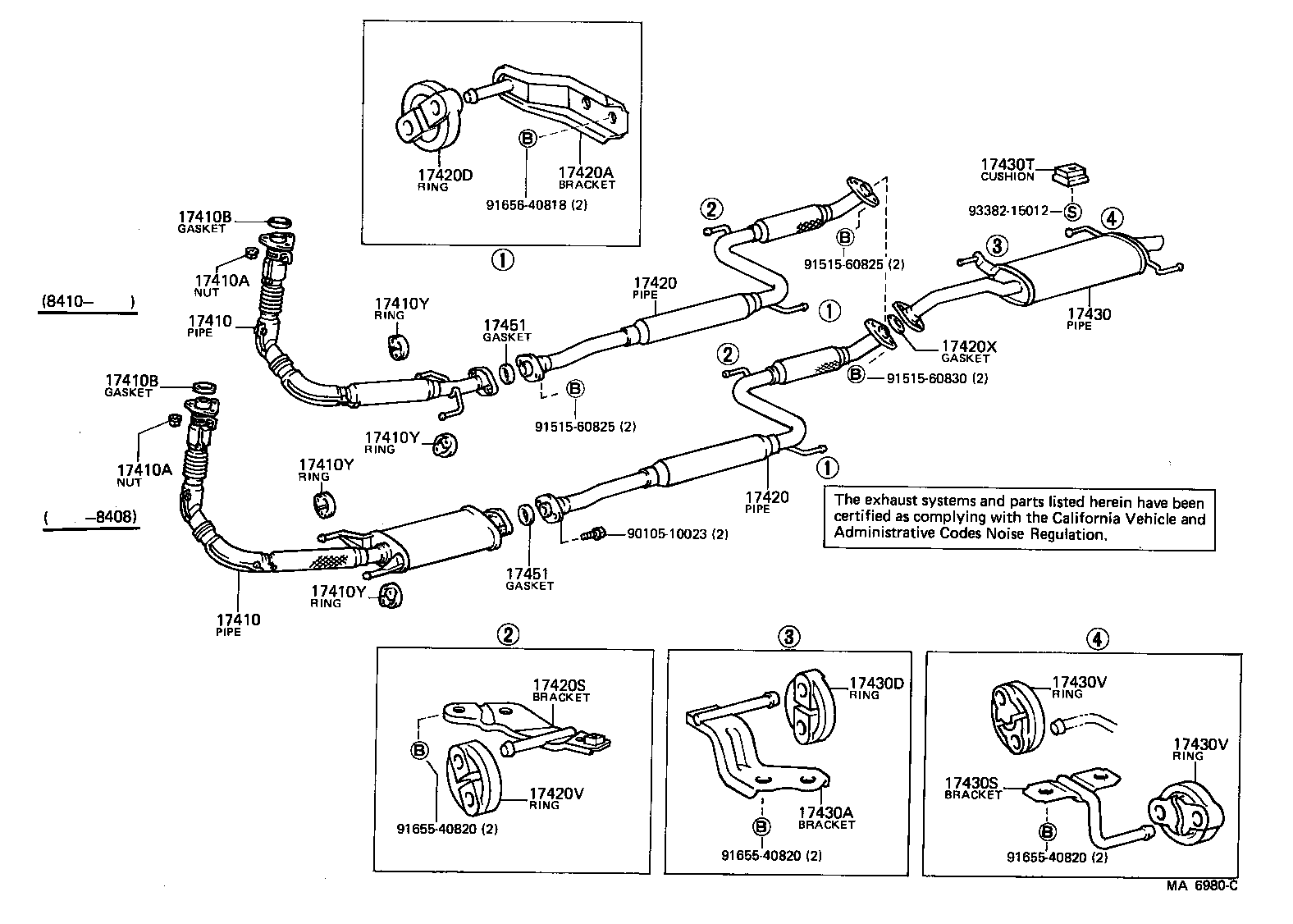

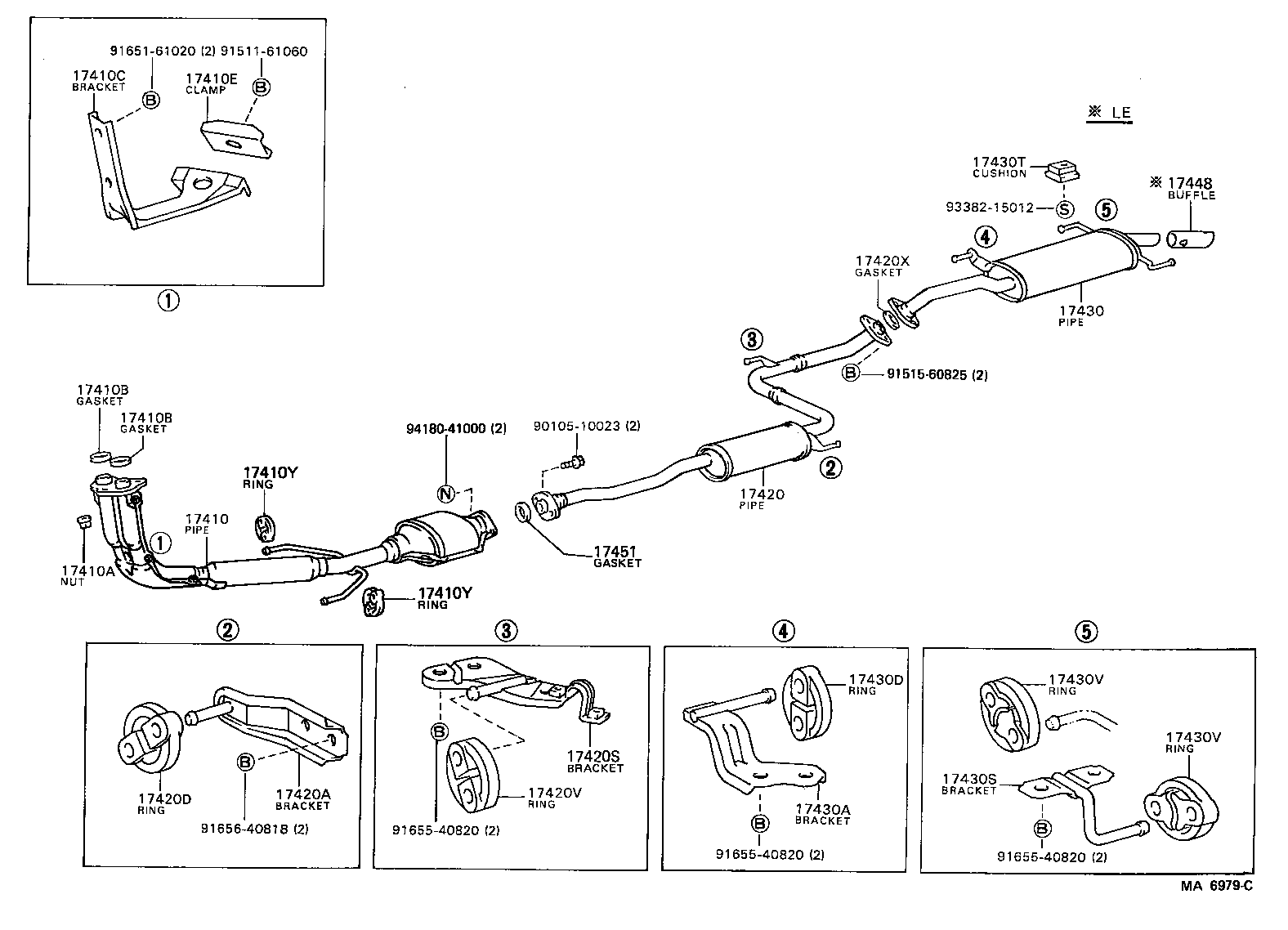

Figure MA6414D MA6414D 1983-01 → 1983-08 Figure MA6414D MA6414D 1983-08 → — Figure MA6979C MA6979C 1983-08 → — Figure MA6980C MA6980C 1983-08 → —

Part groups

PNCDescription
17400 Converter Assy, W/Catalyst
17410 Pipe Assy, Exhaust, Front
17410A Nut, Exhaust Pipe Set Stud Bolt
17410B Gasket, Exhaust Pipe
17410C Bracket, Exhaust Pipe Front (FOR FRONT)
17410E Clamp NO.1, Exhaust Pipe Front (FOR FRONT)
17410V Bracket, Exhaust Pipe Front (FOR REAR)
17410Y Bolt OR Ring, Exhaust Pipe Front (FOR REAR)
17420 Pipe Assy, Exhaust, Center
17420A Bracket, Exhaust Pipe Center, Front
17420D Bolt OR Ring, Exhaust Pipe Center, Front
17420S Bracket, Exhaust Pipe Center, Rear
17420V Bolt OR Ring, Exhaust Pipe Center, Rear
17420X Gasket, Exhaust Pipe, Center
17430 Pipe Assy, Exhaust, Tail
17430A Bracket, Exhaust Tailpipe(FOR FRONT)
17430D Bolt OR Ring, Exhaust Tailpipe (FOR FRONT)
17430S Bracket, Exhaust Tailpipe (FOR REAR)
17430T Cushion, Exhaust Tailpipe (FOR REAR)
17430V Bolt OR Ring, Exhaust Tailpipe (FOR REAR)
17448 Baffle, Tailpipe
17451 Gasket, Exhaust Pipe
17597 Protector, Exhaust Pipe Splash
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
