Toyota Camry

1983-01 → 1986-07 · chassis SV1#,CV1# · catalogue 281420 · Europe

Discontinued model Data version 1987-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

14 part groups · 2 illustrations

Illustrations

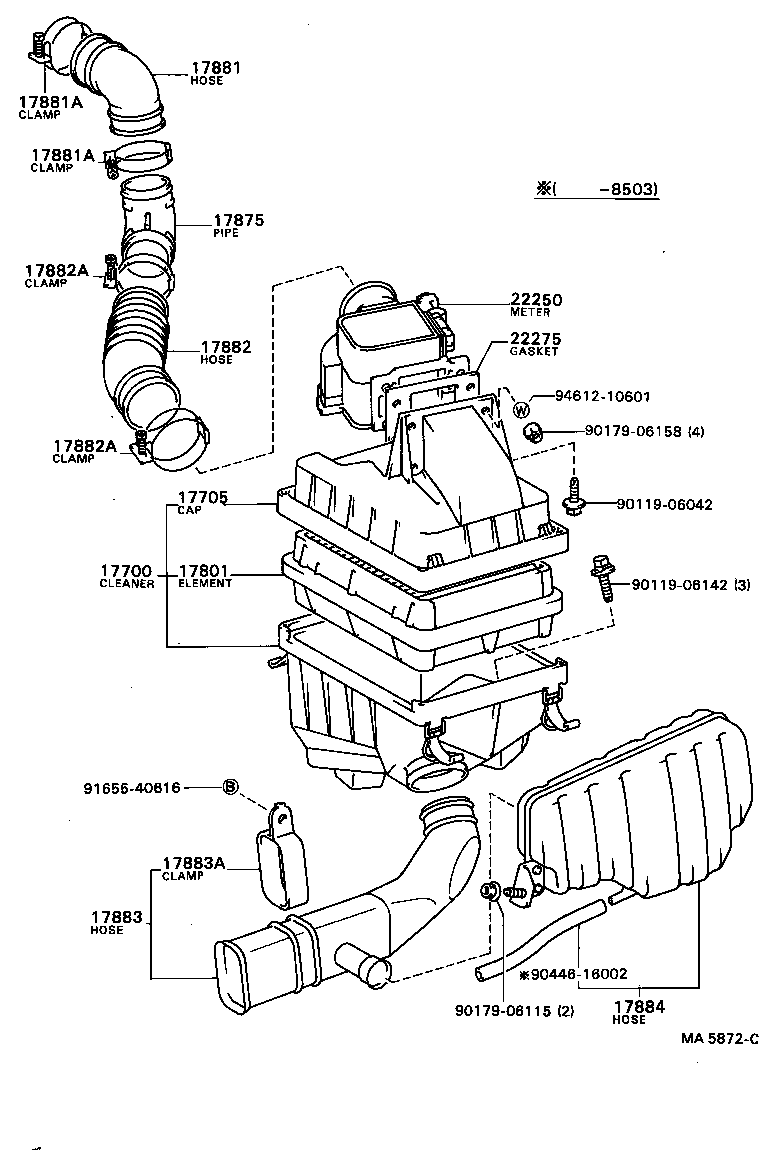

Figure MA6896C MA6896C 1983-08 → — Figure MA5872C MA5872C 1983-01 → —

Part groups

PNCDescription
17700 Cleaner Assy, Air
17705 Cap Sub-assy, Air Cleaner
17801 Element Sub-assy, Air Cleaner Filter
17875 Pipe, Intake Air Connector
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882 Hose, Air Cleaner, NO.2
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17882C Bracket(FOR COOL AIR INTAKE)
17883 Hose, Air Cleaner, NO.3
17883A Clamp(FOR AIR CLEANER HOSE, NO.3)
17884 Hose, Air Cleaner, NO.4
22250 Meter Assy, Intake Air Flow
22275 Gasket, Air Flow Meter
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
