Toyota Camry

1983-01 → 1986-07 · chassis SV1#,CV1# · catalogue 281420 · Europe

Discontinued model Data version 1987-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

21 part groups · 7 illustrations

Illustrations

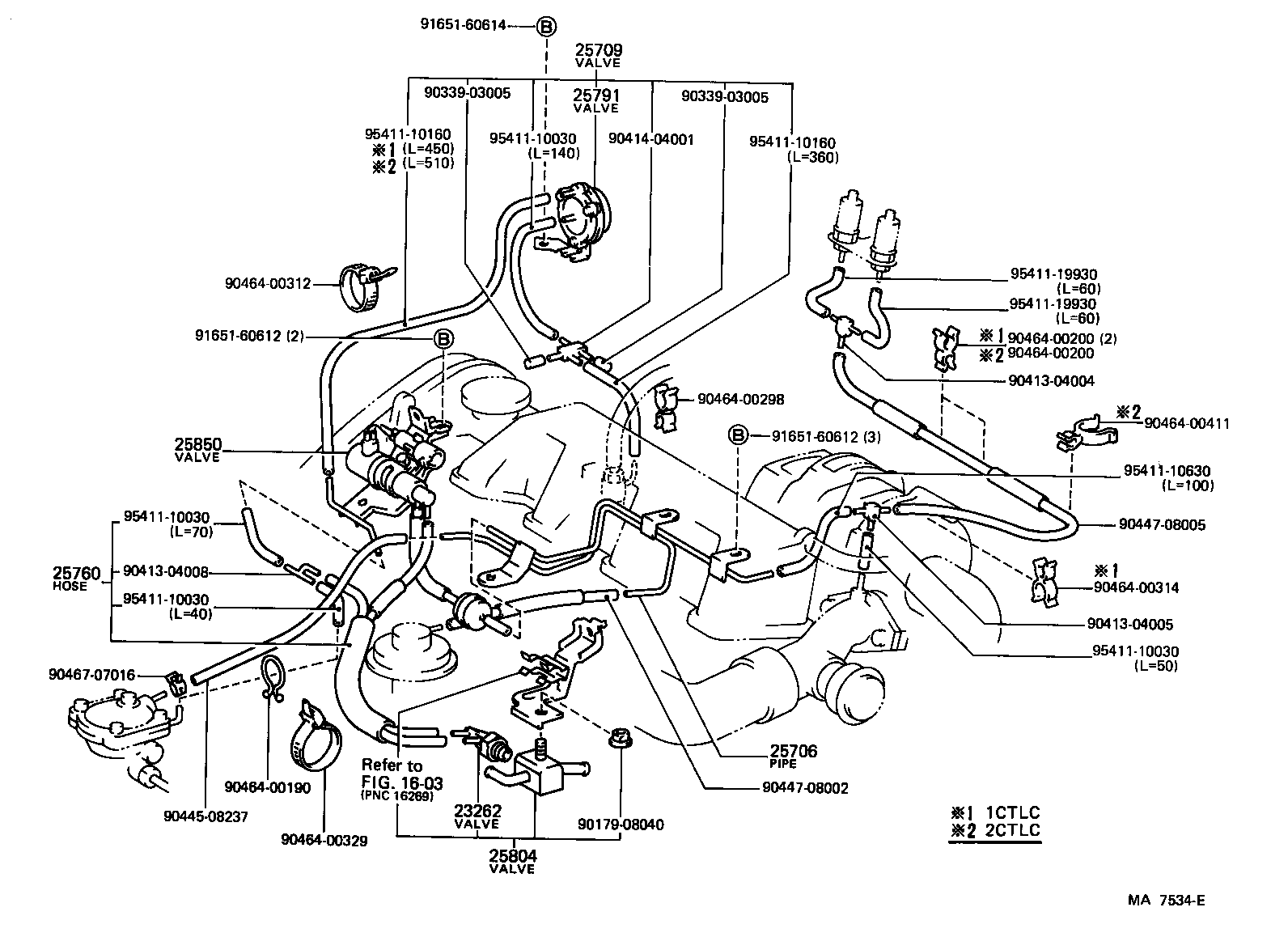

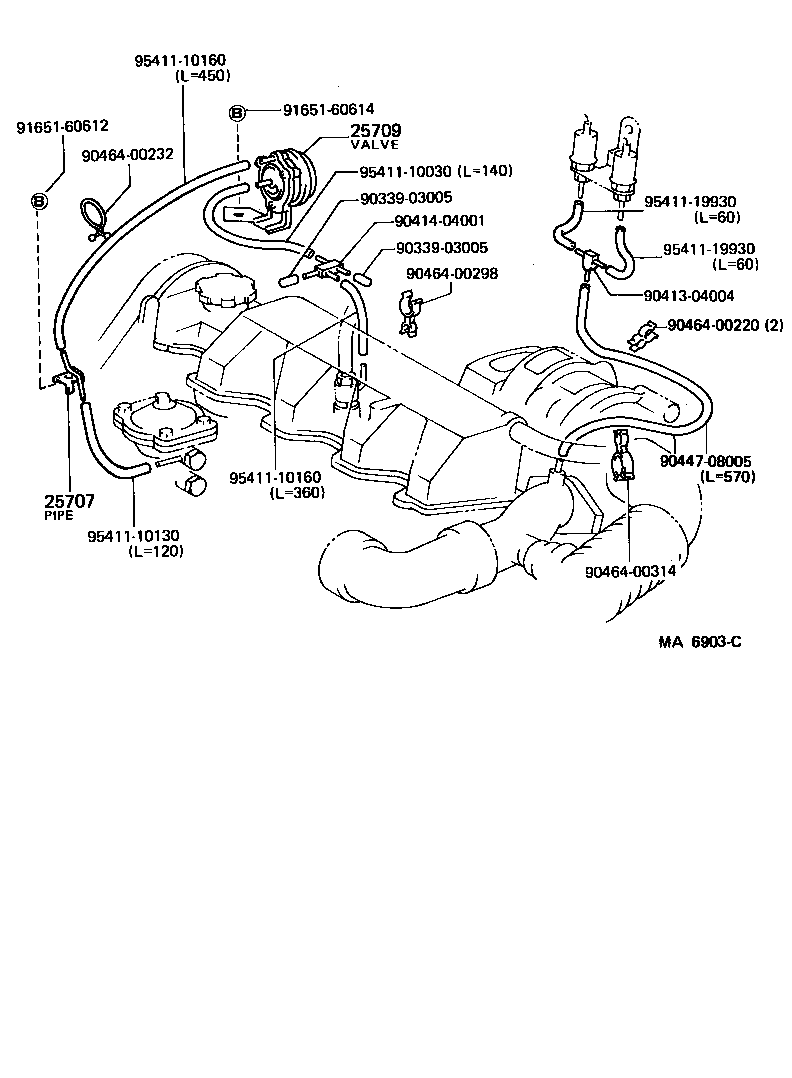

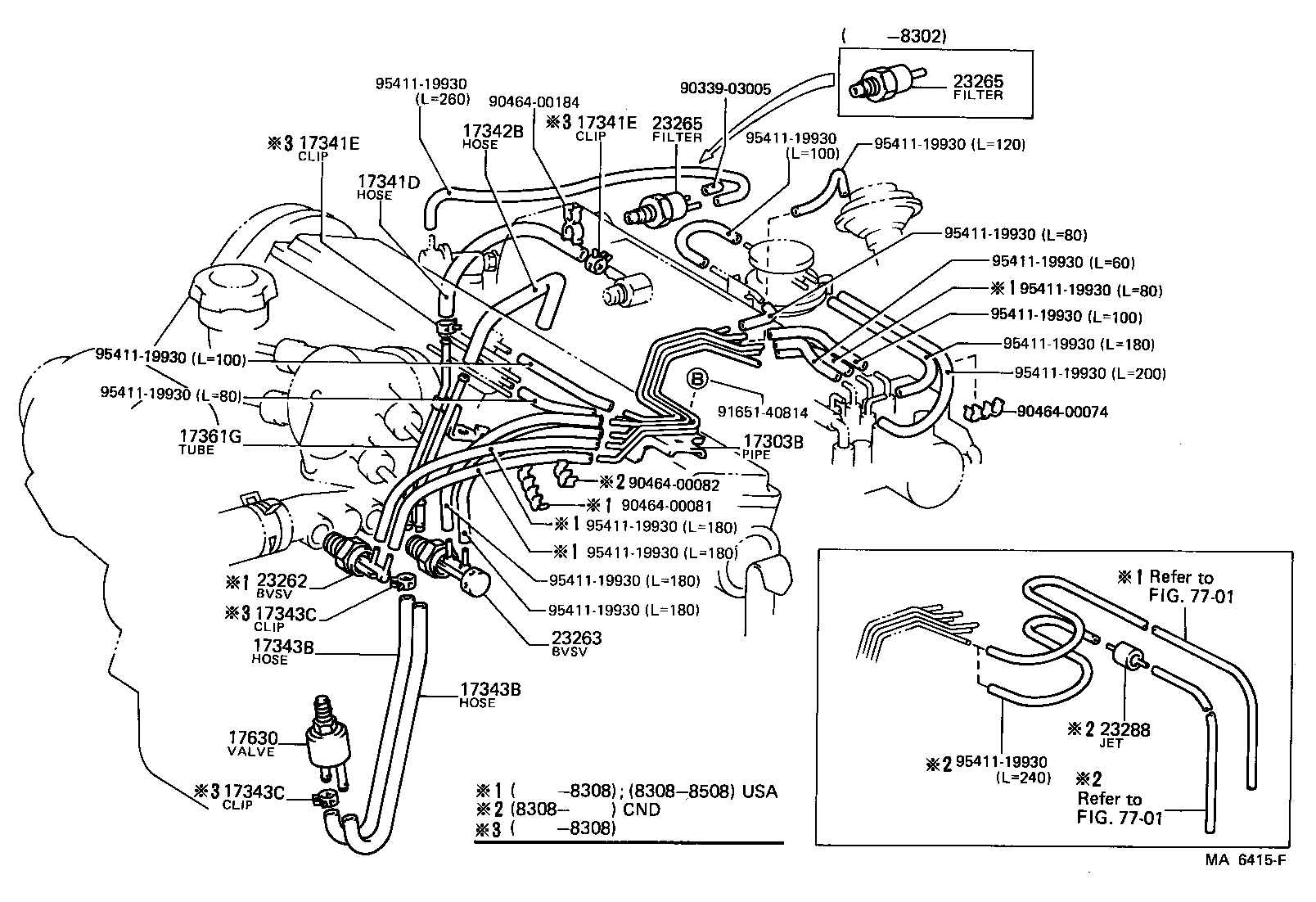

Figure MA9504A MA9504A 1983-01 → — Figure MA6903C MA6903C 1983-08 → 1984-08 Figure MA7534E MA7534E 1984-10 → — Figure MA9504A MA9504A 1983-01 → — Figure MA6415F MA6415F 1983-01 → 1985-08 Figure MA6415F MA6415F 1985-08 → — Figure MA8394 MA8394 1985-08 → —

Part groups

PNCDescription
17303B Pipe Sub-assy, Air, NO.1
17341D Hose, NO.1(FOR IDLE-UP)
17341E Clip, NO.1(FOR IDLE-UP HOSE)
17342B Hose, NO.2(FOR IDLE-UP)
17343B Hose, NO.3(FOR IDLE-UP)
17343C Clip, NO.3(FOR IDLE-UP HOSE)
17360 Tube Assy, Air
17361G Tube, Air(FOR IDLE-UP)
17630 Valve Assy, Air Control
17650 Valve Assy, Vacuum Switching
23262 Valve, Bimetal Vacuum Switching, NO.1
23263 Valve, Bimetal Vacuum Switching, NO.2
23265 Filter, Gas, NO.1
23288 Jet, NO.1
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25707 Pipe Sub-assy, Vacuum Transmitting, NO.2
25709 Valve Sub-assy, High Altitude Compensator
25760 Hose Assy, Vacuum Transmitting
25791 Valve, High Altitude Compensator
25804 Valve Set, Vacuum Control
25850 Valve Assy, Electric Vacuum Regulating
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
