Toyota Camry

1983-01 → 1986-07 · chassis SV1#,CV1# · catalogue 281420 · Europe

Discontinued model Data version 1987-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Distributor

22 part groups · 3 illustrations

Illustrations

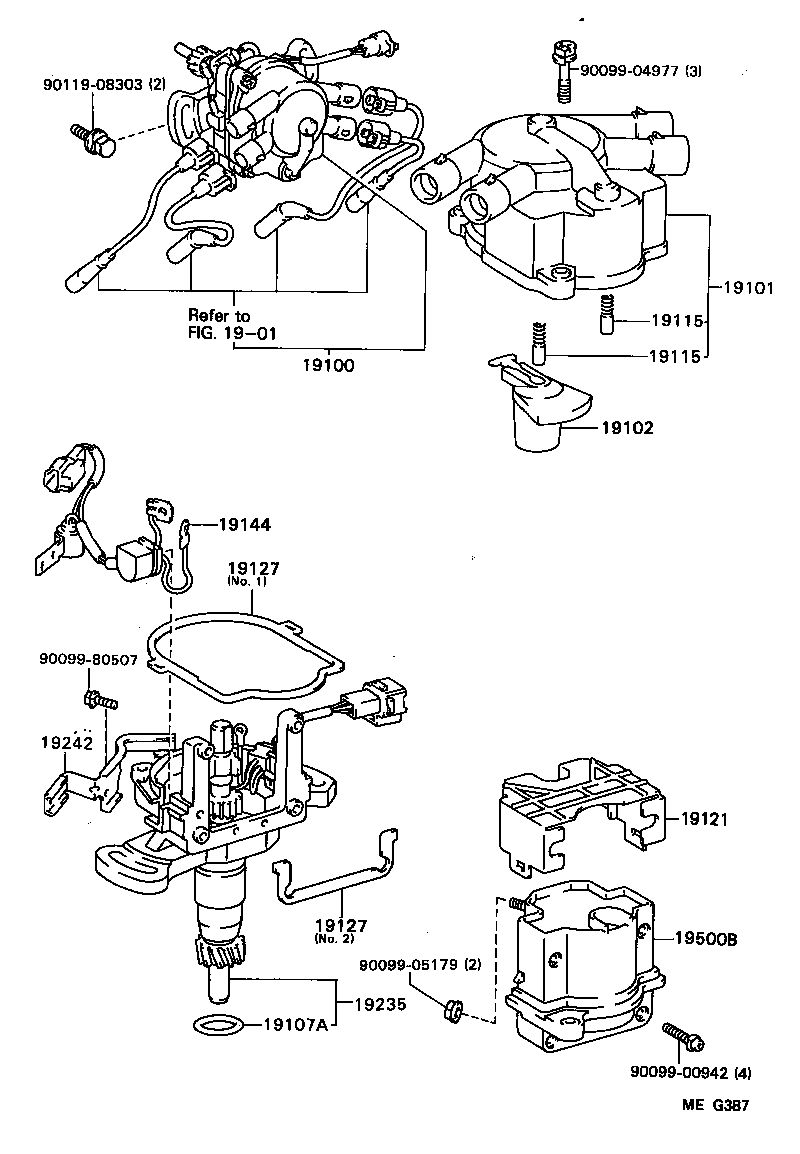

Figure MEC633D MEC633D 1983-01 → 1985-08 Figure MEC633D MEC633D 1985-08 → — Figure MEG387 MEG387 1985-08 → —

Part groups

PNCDescription
19100 Distributor Assy
19101 Cap Sub-assy, Distributor
19102 Rotor Sub-assy, Distributor
19107A Ring, O, Distributor Housing
19115 Piece, Distributor Cap, Center
19121 Cover, Dust Proof
19127 Packing, Dust Proof
19144 Lead, Distributor Breaker
19152 Weight, Governor
19152A Ring, Snap(FOR GOVERNOR WEIGHT)
19153 Spring, Governor, A
19154 Spring, Governor, B
19169 Stopper, Cam Grease
19181 Rotor, Distributor, Signal
19183 Rotor, Signal
19184 Spring, Rotor Set
19201 Igniter
19220 Advancer Assy, Vacuum, Distributor
19235 Housing, Distributor
19242 Clamp, Cord
19250 Generator Assy, Signal
19500B Coil Assy, Ignition
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
