Toyota Camry
1983-01 → 1986-07 · chassis SV1#,CV1# · catalogue 281420 · Europe
Discontinued model
Data version 1987-03

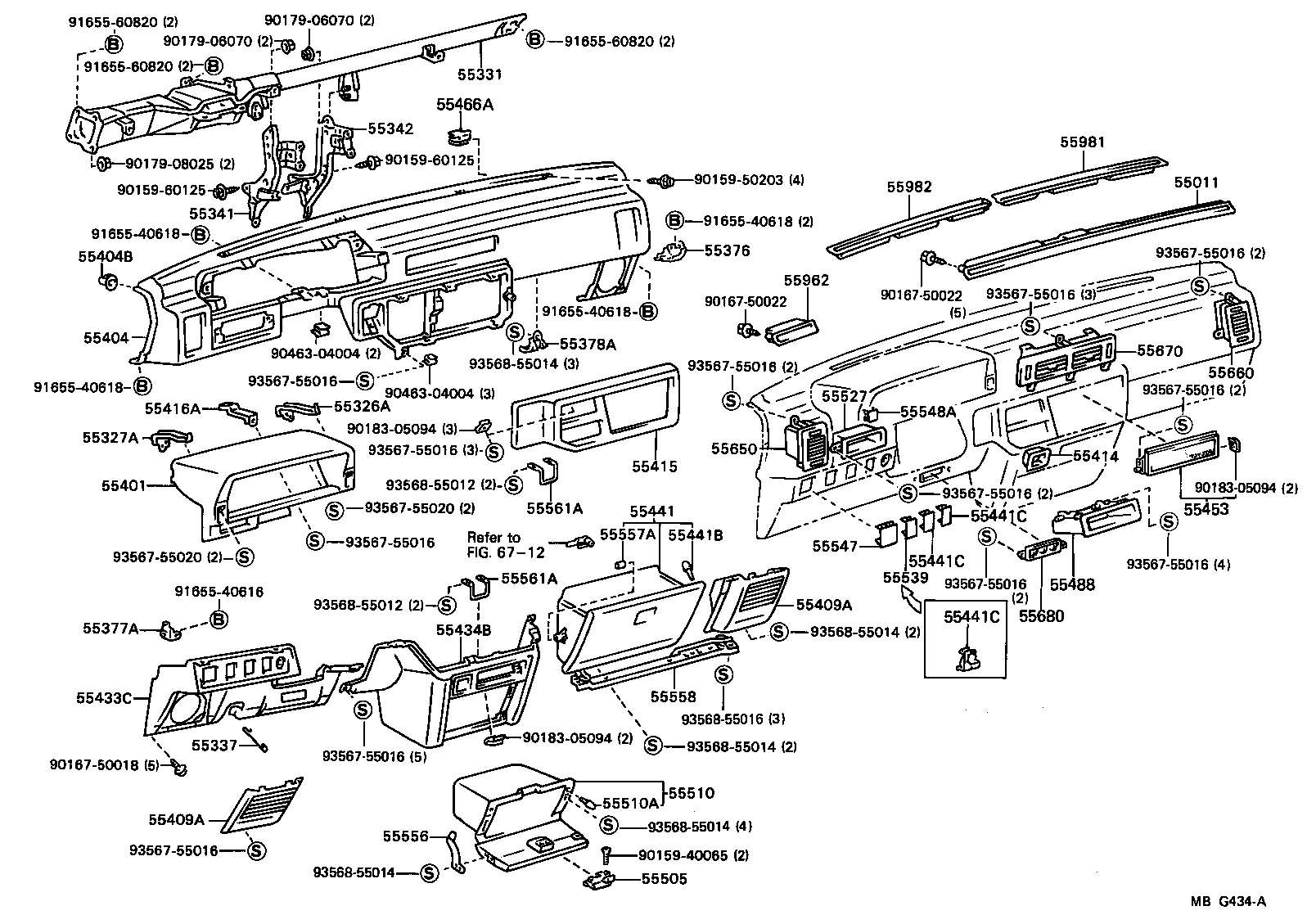

Instrument Panel & Glove Compartment
46 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 55011 | Garnish Sub-assy, Instrument Panel Safety Pad |
| 55326A | Stay, Instrument Panel, NO.1 |
| 55327A | Stay, Instrument Panel, NO.2 |
| 55331 | Reinforcement, Instrument Panel |
| 55337 | Reinforcement, Instrument Panel Sub |
| 55341 | Brace, Instrument Panel, NO.1 |
| 55342 | Brace, Instrument Panel, NO.2 |
| 55356A | Plate, Instrument Panel, Lower |
| 55376 | Bracket, Instrument Panel Mounting, NO.1 |
| 55377A | Bracket, Instrument Panel Mounting, NO.2 |
| 55378A | Bracket, Glove Compartment Door Lock Mounting |
| 55401 | Panel Sub-assy, Instrument Cluster Finish |
| 55404 | Safety Pad Sub-assy, Instrument Panel, Upper |
| 55404B | Clip, Safety Pad Set |
| 55409A | Panel Sub-assy, Instrument Panel Speaker |
| 55414 | Bezel, Cigar Lighter Hole |
| 55415 | Panel, Instrument Cluster Finish, Center |
| 55416A | Retainer, Meter Hood, NO.1 |
| 55433C | Panel, Instrument Panel Finish, Lower LH |
| 55434B | Panel, Instrument Panel Finish, Lower Center |
| 55441 | Box, Instrument Panel |
| 55441B | Cushion, Instrument Panel Box |
| 55441C | Box, Instrument Panel Coin |
| 55453 | Cover, Radio Tuner Opening |
| 55466A | Retainer, Instrument Panel Safety Pad |
| 55488 | Cover, Stereo Opening |
| 55505 | Lock Sub-assy, Glove Compartment Door |
| 55507 | Hinge Sub-assy, Glove Compartment Door |
| 55510 | Door Assy, Glove Compartment |
| 55510A | Cushion(FOR GLOVE COMPARTMENT DOOR) |
| 55524 | Cover, Switch Bace Hole |
| 55527 | Cover, Transmission Control Switch Hole |
| 55539 | Cover, Spare Switch Hole |
| 55547 | Cover, Remote Control Mirror Hole |
| 55548A | Cover, Instrument Panel Hole |
| 55556 | Arm, Glove Compartment Door Check |
| 55557A | Cushion, Glove Compartment Door Check |
| 55558 | Reinforcement, Glove Compartment Door |
| 55561A | Striker, Glove Compartment Door Lock |
| 55650 | Register Assy, Instrument Panel, NO.1 |
| 55660 | Register Assy, Instrument Panel, NO.2 |
| 55670 | Register Assy, Instrument Panel, NO.3 |
| 55680 | Register Assy, Instrument Panel, Lower NO.1 |
| 55962 | Nozzle, Side Defroster, NO.2 |
| 55981 | Garnish, Defroster Nozzle, NO.1 |
| 55982 | Garnish, Defroster Nozzle, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
