Toyota Camry

1983-01 → 1986-07 · chassis SV1#,CV1# · catalogue 281420 · Europe

Discontinued model Data version 1987-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Pan & Lower Back Panel

19 part groups · 2 illustrations

Illustrations

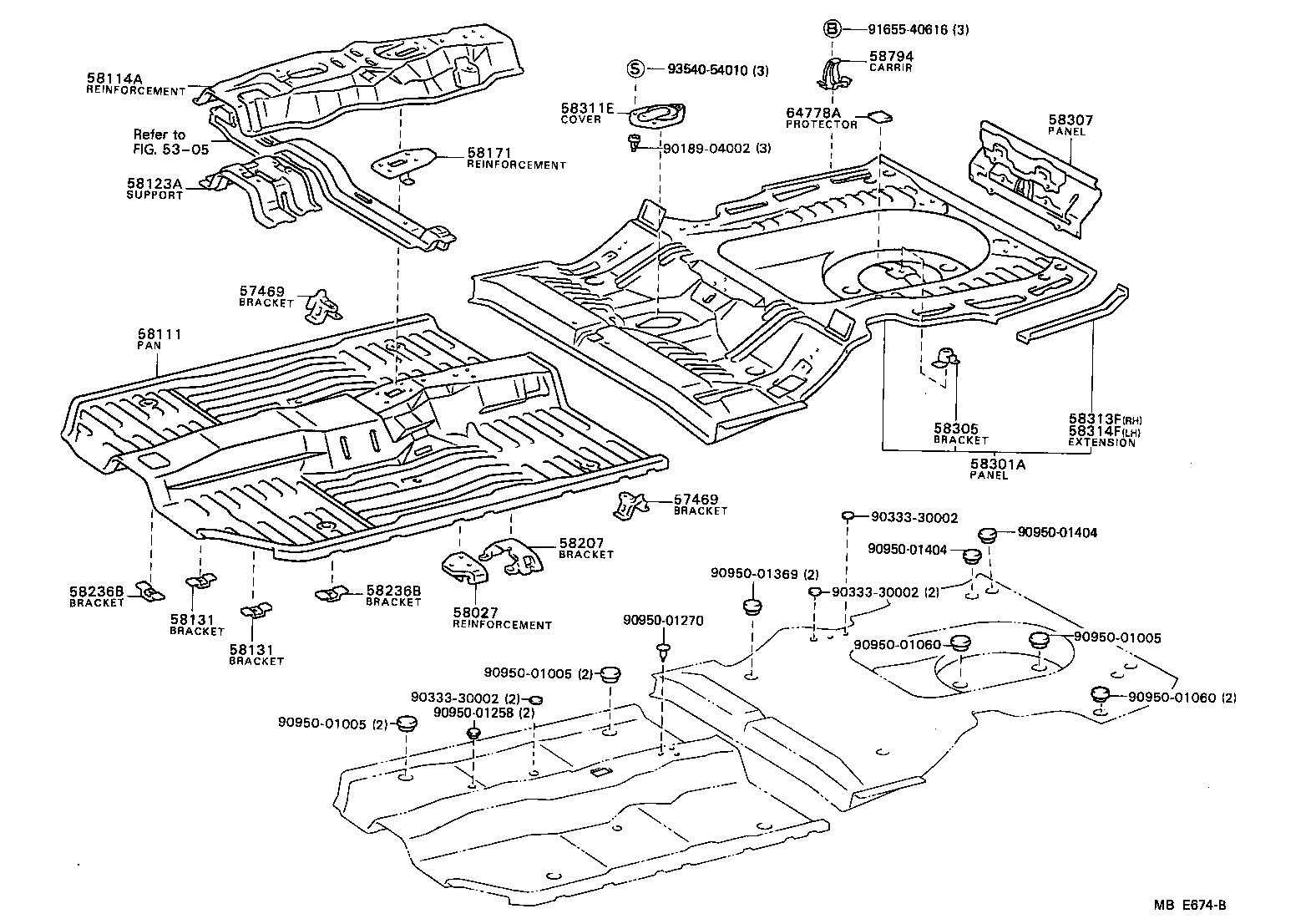

Figure MBE673C MBE673C 1983-01 → — Figure MBE674B MBE674B 1983-01 → —

Part groups

PNCDescription
57469 Bracket, Front Seat, Outside
58027 Reinforcement, Belt Anchor TO Floor Pan, NO.1
58111 Pan, Front Floor
58114A Reinforcement, Front Floor Panel
58123A Support, Shift & Select Lever
58131 Bracket, Front Floor Heat Insulator, NO.1
58171 Reinforcement, Parking Brake Base
58207 Bracket Sub-assy, Parking Brake Cable, NO.1
58236B Bracket, Center Floor Heat Insulator
58301A Panel Sub-assy, Rear Floor
58305 Bracket Sub-assy, Spare Wheel Clamp
58307 Panel Sub-assy, Body Lower Back
58311E Cover, Rear Floor Service Hole
58313 Panel, Rear Floor Side, RH
58313F Extension, Rear Floor Pan TO Quarter Panel, RH
58314 Panel, Rear Floor Side, LH
58314F Extension, Rear Floor Pan TO Quarter Panel, LH
58794 Carrier, Jack
64778A Protector, Spare Wheel
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
