Toyota Camry

1983-01 → 1986-07 · chassis SV1#,CV1# · catalogue 281420 · Europe

Discontinued model Data version 1987-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

16 part groups · 2 illustrations

Illustrations

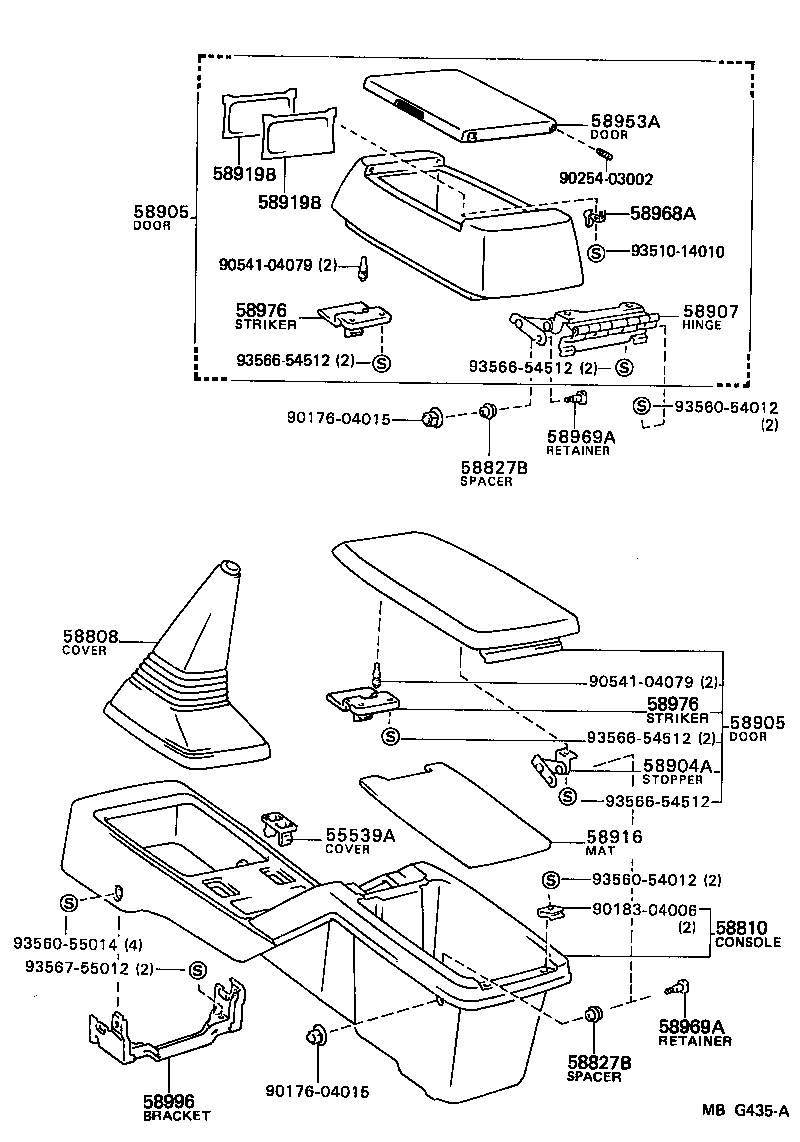

Figure MBD266C MBD266C 1983-01 → 1984-08 Figure MBG435A MBG435A 1984-08 → —

Part groups

PNCDescription
55539A Cover, Spare Switch Hole
58808 Cover Sub-assy, Shifting Hole
58810 Console Assy
58827B Spacer, Console Compartment Door Stopper
58904A Stopper Sub-assy, Console Compartment Door
58905 Door Sub-assy, Console Compartment
58907 Hinge Sub-assy, Console Compartment Door
58908A Lock Sub-assy, Console Compartment Door
58916 Mat, Box Bottom
58919B Plate, Console Box
58953A Door, Console Compartment, Upper
58968A Bracket, Console Door Stopper
58969A Retainer, Console Compartment Door Stopper
58971 Lock, Console Compartment Door
58976 Striker, Console Compartment Door Lock
58996 Bracket, Console Box Mounting, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
