Toyota Camry
1983-01 → 1986-07 · chassis SV1#,CV1# · catalogue 281420 · Europe
Discontinued model
Data version 1987-03

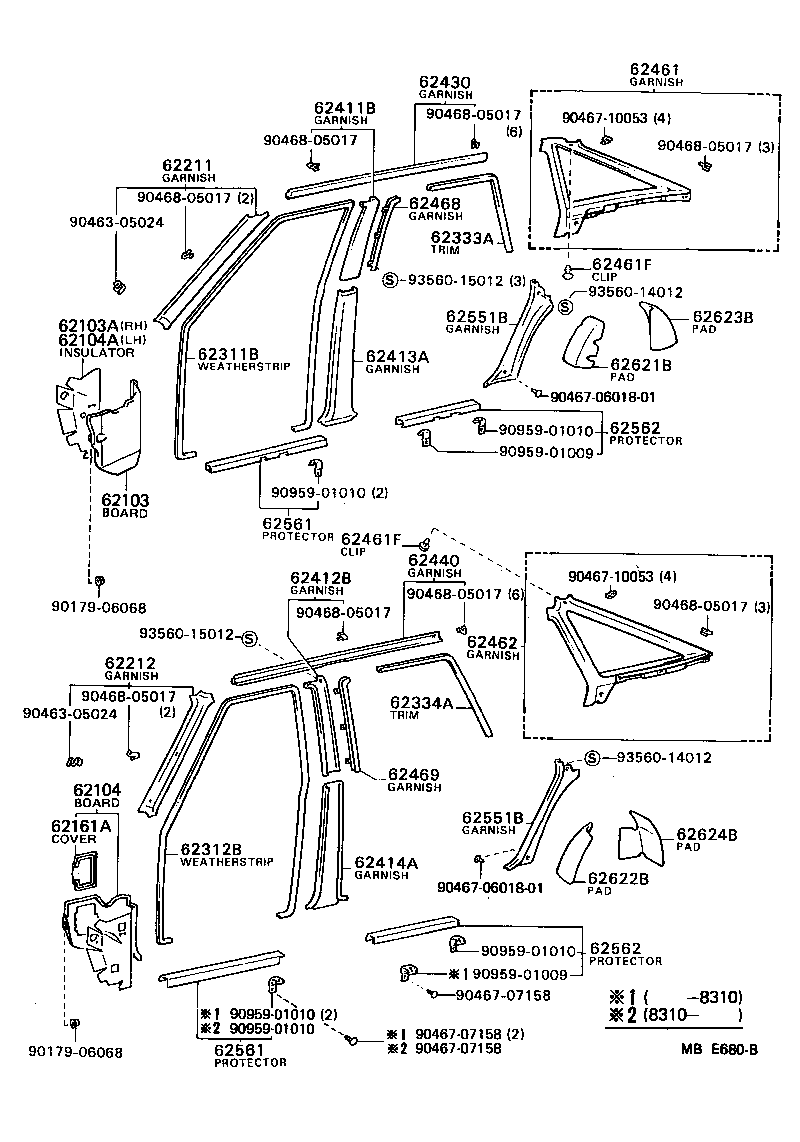

Inside Trim Board & Door Opening Trim Moulding
30 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 62103 | Board Sub-assy, Cowl Side Trim, RH |
| 62103A | Insulator Sub-assy, Cowl Side, RH |
| 62104 | Board Sub-assy, Cowl Side Trim, LH |
| 62104A | Insulator Sub-assy, Cowl Side, LH |
| 62161A | Cover, Cowl Side Trim Service Hole |
| 62211 | Garnish, Front Pillar, RH |
| 62212 | Garnish, Front Pillar, LH |
| 62311B | Weatherstrip, Front Door Opening Trim, RH |
| 62312B | Weatherstrip, Front Door Opening Trim, LH |
| 62333A | Trim, Rear Door Opening, RH |
| 62334A | Trim, Rear Door Opening, LH |
| 62411B | Garnish, Center Pillar, Upper RH |
| 62412B | Garnish, Center Pillar, Upper LH |
| 62413A | Garnish, Center Pillar, Lower RH |
| 62414A | Garnish, Center Pillar, Lower LH |
| 62430 | Garnish Assy, Roof Side Rail, RH |
| 62440 | Garnish Assy, Roof Side Rail, LH |
| 62461 | Garnish, Roof Side Trim, RH |
| 62461F | Clip (FOR ROOF SIDE TRIM GARNISH) |
| 62461J | Retainer, Roof Side Trim Garnish |
| 62462 | Garnish, Roof Side Trim, LH |
| 62468 | Garnish, Center Pillar, Rear RH |
| 62469 | Garnish, Center Pillar, Rear LH |
| 62551B | Garnish, Rear Seat Side |
| 62561 | Protector, Rocker Panel, Inner Front |
| 62562 | Protector, Rocker Panel, Inner Rear |
| 62621B | Pad, Quarter Wheel House, Inner Front RH |
| 62622B | Pad, Quarter Wheel House, Inner Front LH |
| 62623B | Pad, Quarter Wheel House, Inner Rear RH |
| 62624B | Pad, Quarter Wheel House, Inner Rear LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
