Toyota Camry

1983-01 → 1986-07 · chassis SV1#,CV1# · catalogue 281420 · Europe

Discontinued model Data version 1987-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

22 part groups · 3 illustrations

Illustrations

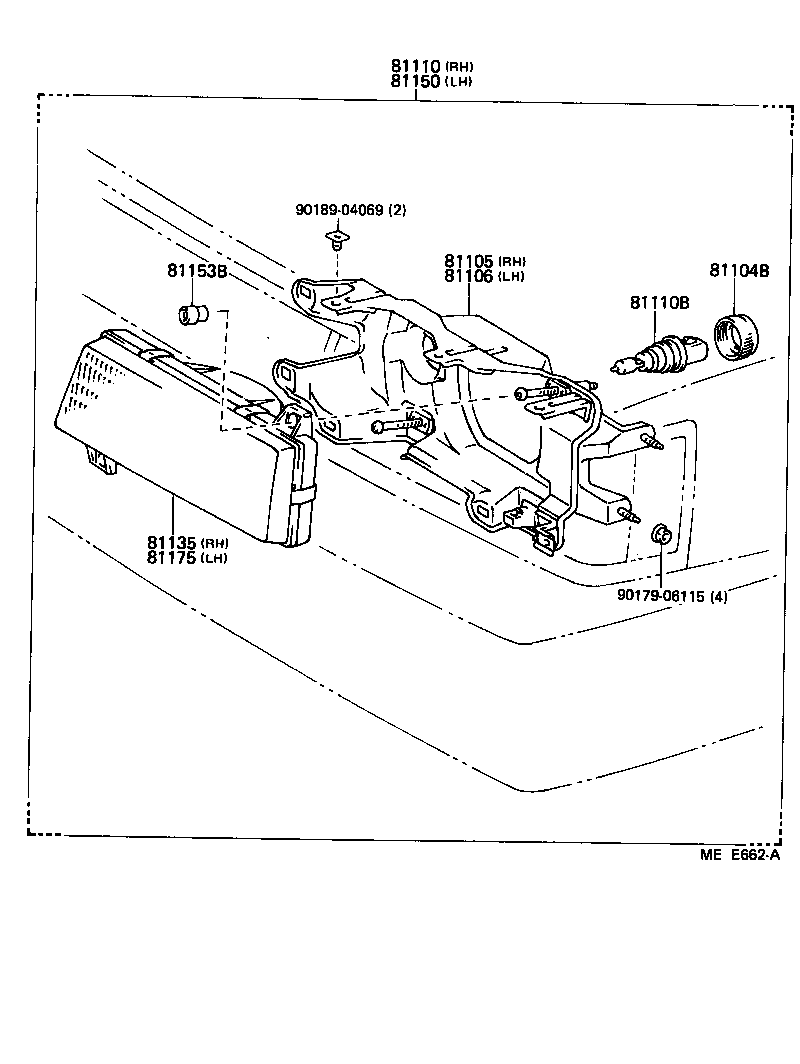

Figure MEC802B MEC802B 1983-01 → 1984-08 Figure MEE662A MEE662A 1984-08 → — Figure MEE663 MEE663 1984-08 → 1985-02

Part groups

PNCDescription
81104B Locking Cap, Headlamp
81105 Housing Sub-assy, Headlamp, RH
81106 Housing Sub-assy, Headlamp, LH
81110 Headlamp Assy, RH
81110B Bulb(FOR HEADLAMP, NO.1)
81110K Headlamp Kit, W/O Sealed Beam, RH
81110S Sealed Beam Unit, NO.1
81110T Sealed Beam Unit, NO.2
81111 Ring, Sealed Beam Retaining
81113 Ring, Sealed Beam Mounting, NO.1 RH
81114 Ring, Sealed Beam Mounting, NO.2 RH
81121 Spring, Headlamp Tension
81131 Screw, Headlamp Adjusting
81135 Unit Assy, Headlamp, RH
81148 Attchment, Headlamp Aimer, RH
81149 Attchment, Headlamp Aimer, LH
81150 Headlamp Assy, LH
81150K Headlamp Kit, W/O Sealed Beam, LH
81153 Ring, Sealed Beam Mounting, NO.1 LH
81153B Bearing, Headlamp
81154 Ring, Sealed Beam Mounting, NO.2 LH
81175 Unit Assy, Headlamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
