Toyota Camry

1983-01 → 1986-07 · chassis SV1#,CV1# · catalogue 281420 · Europe

Discontinued model Data version 1987-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

34 part groups · 8 illustrations

Illustrations

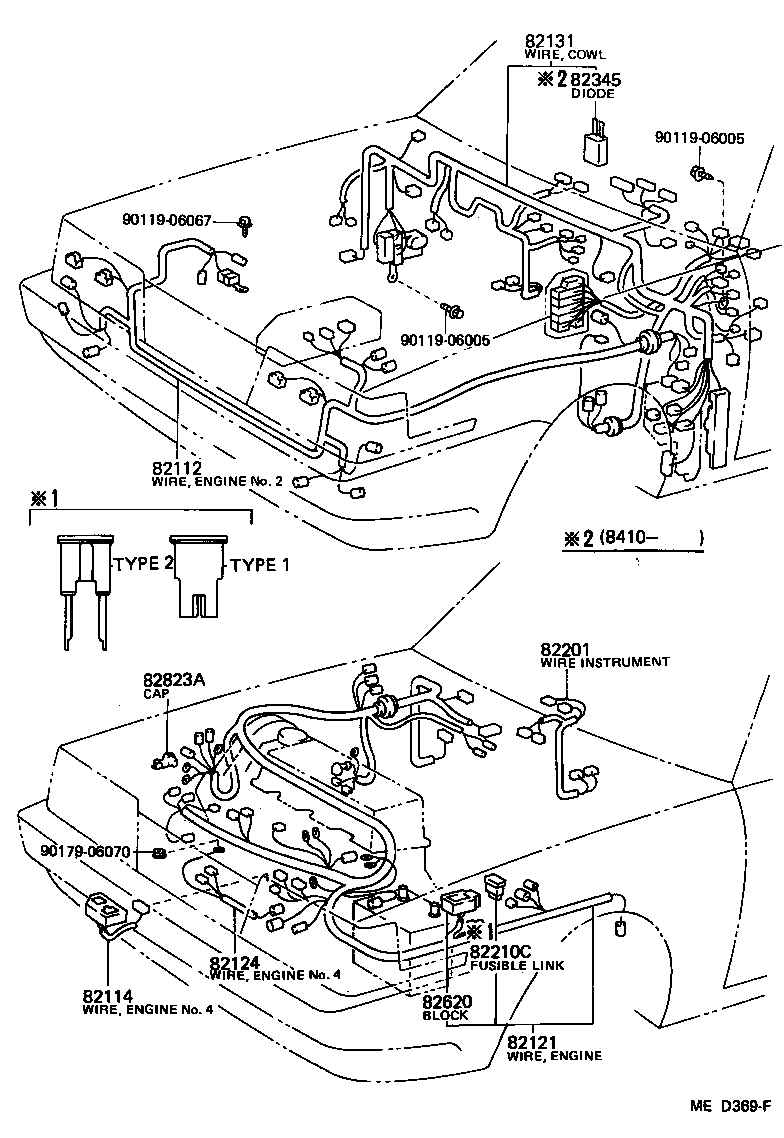

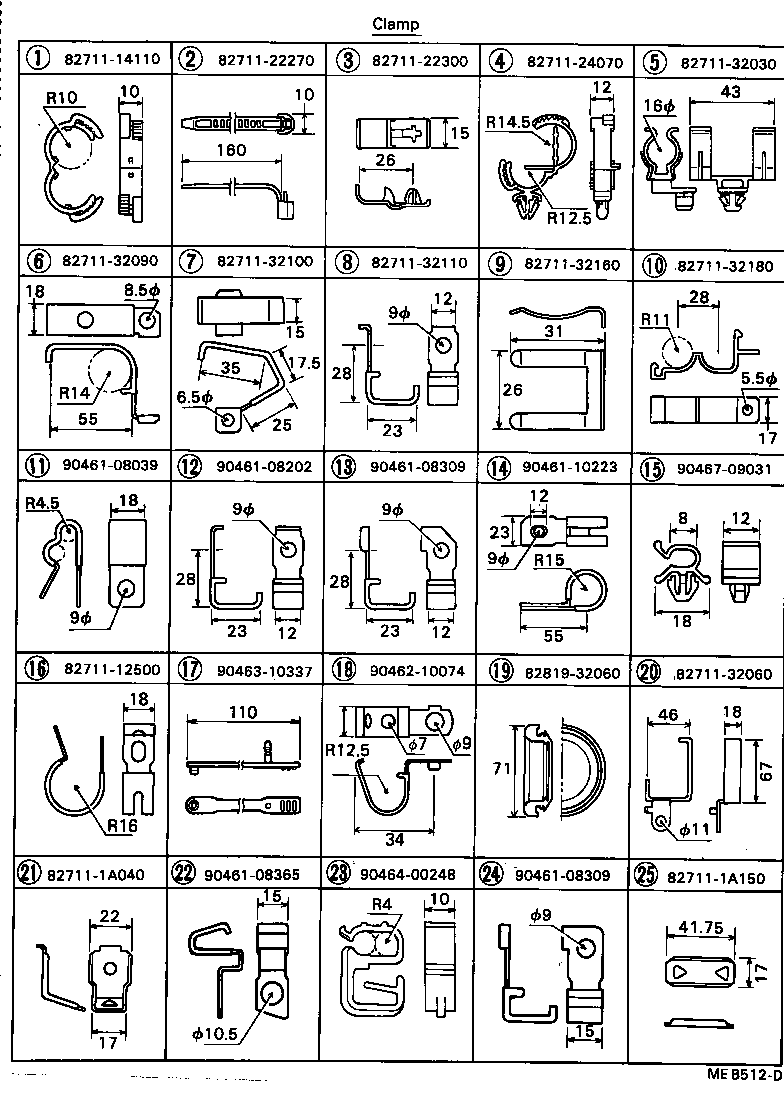

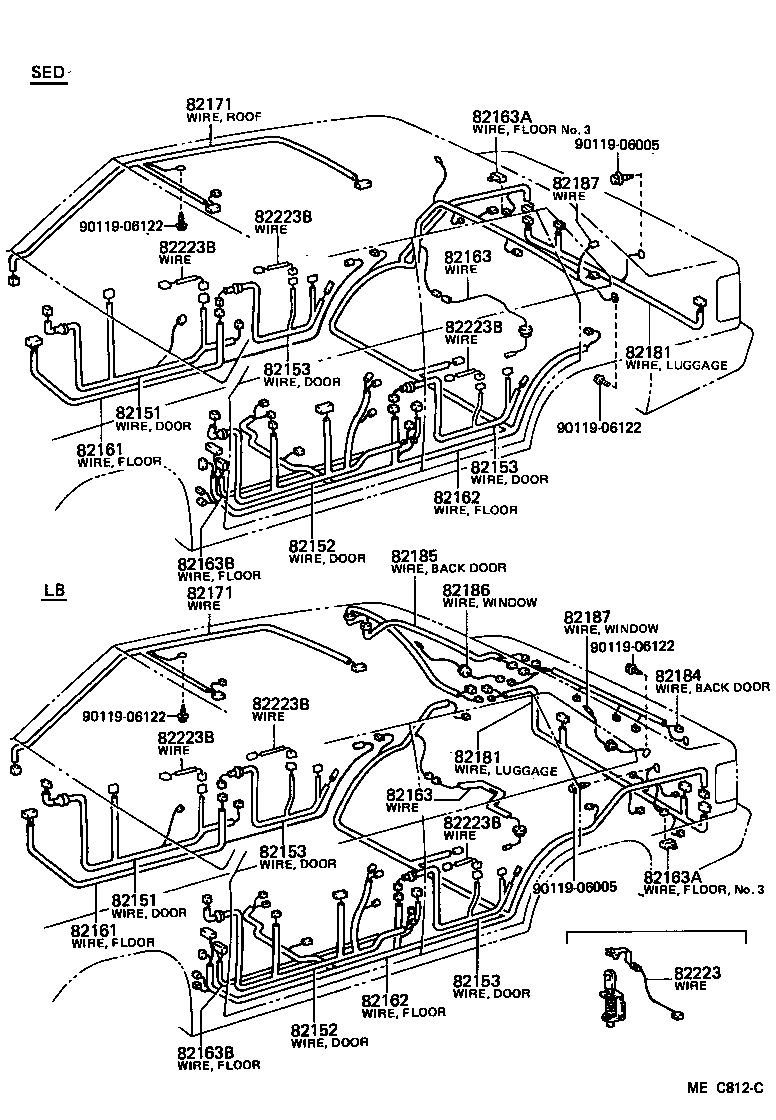

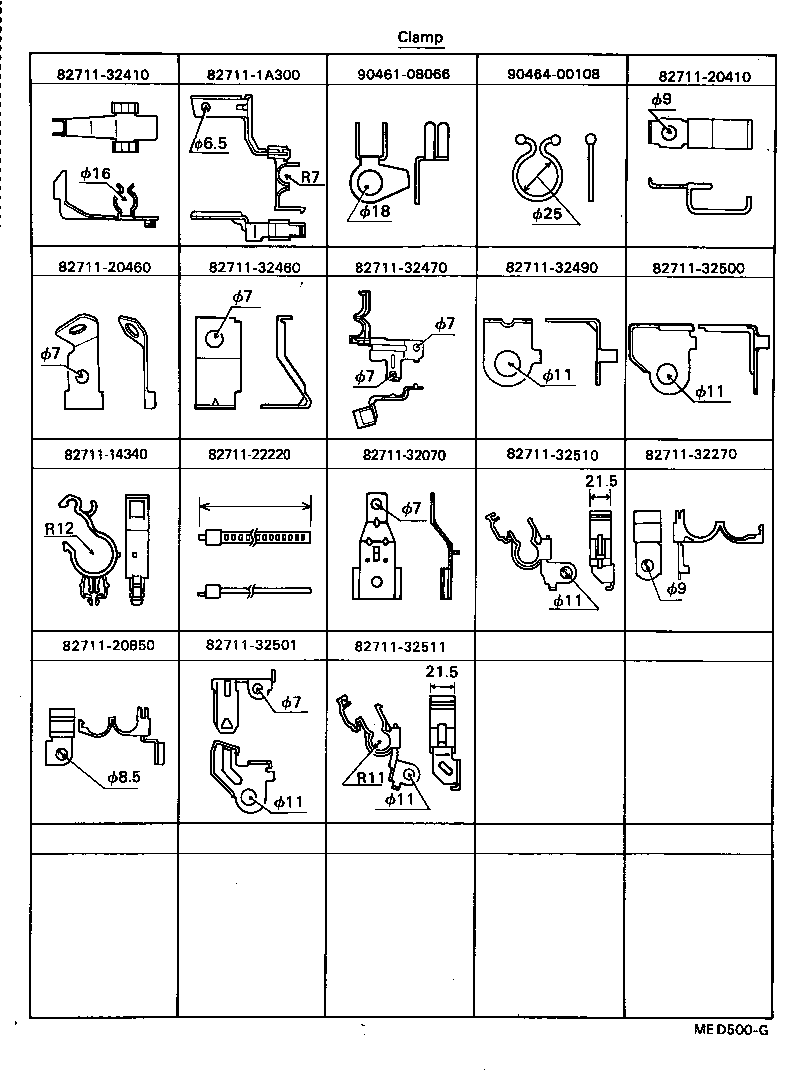

Figure MEC811G MEC811G 1983-01 → — Figure MED369F MED369F 1983-08 → — Figure MEC812C MEC812C 1983-01 → — Figure MEC813C MEC813C 1983-08 → — Figure MEB512D MEB512D 1983-01 → — Figure MED500G MED500G 1983-01 → — Figure MEG438 MEG438 1983-01 → — Figure MEG439 MEG439 1983-01 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82112 Wire, Engine Room, NO.2
82114 Wire, Engine Room, NO.4
82121 Wire, Engine
82122 Wire, Engine, NO.2
82124 Wire, Engine, NO.4
82131 Wire, Cowl
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82161 Wire, Floor
82162 Wire, Floor, NO.2
82163 Wire, Floor, NO.3
82163A Wire, Floor, NO.4
82163B Wire, Floor NO.5
82171 Wire, Roof, NO.1
82181 Wire, Luggage Room, NO.1
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82186 Wire, Rear Window, NO.1
82187 Wire, Rear Window, NO.2
82201 Wiring Sub-assy, Instrument Panel
82210C Fusible Link
82223 Wire, Switch
82223B Wire, Switch, NO.2
82345 Diode
82620 Block Assy, Fusible Link
82817 Protector, Wiring Harness, NO.1
82823A Cap, Terminal, NO.2
82823B Cap, Terminal, NO.3

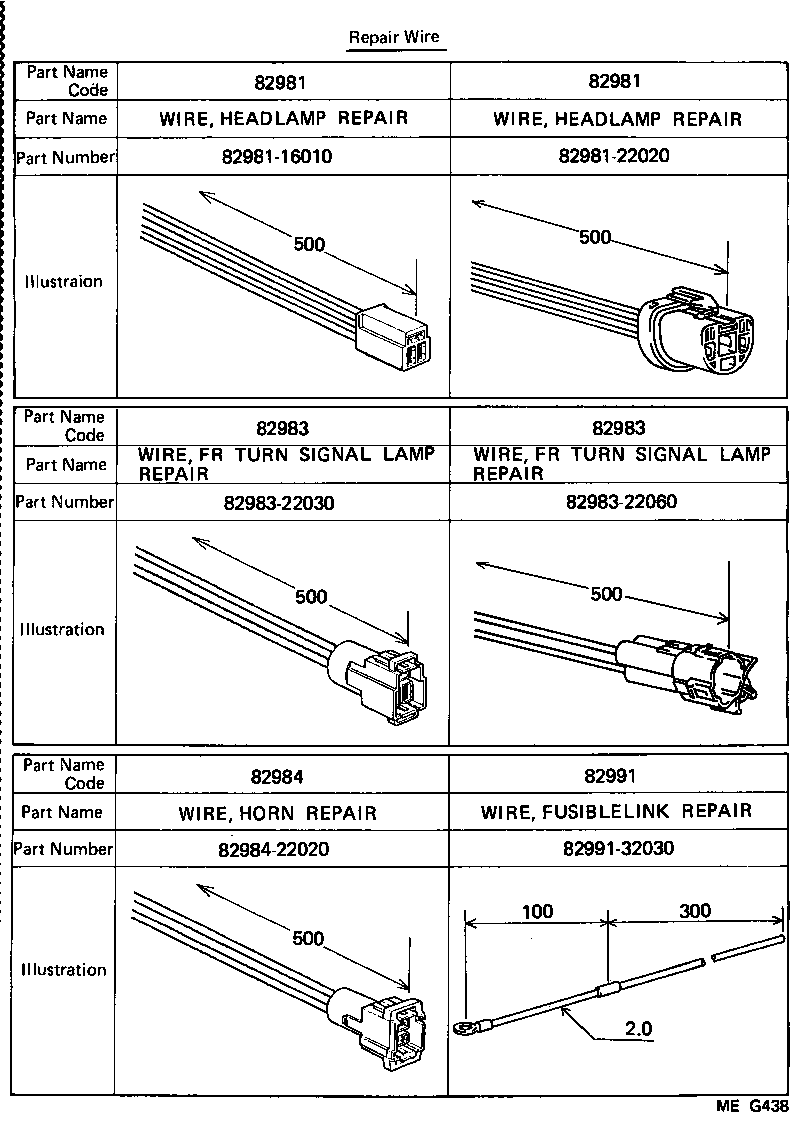

82981 Wire, Headlamp Repair
82983 Wire, Front Turn Signal Lamp Repair
82984 Wire, Horn Repair
82991 Wire, Fusible Link Repair
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
