Toyota Camry
1983-01 → 1986-07 · chassis SV1#,CV1# · catalogue 281420 · Europe
Discontinued model
Data version 1987-03
Meter
28 part groups · 5 illustrations

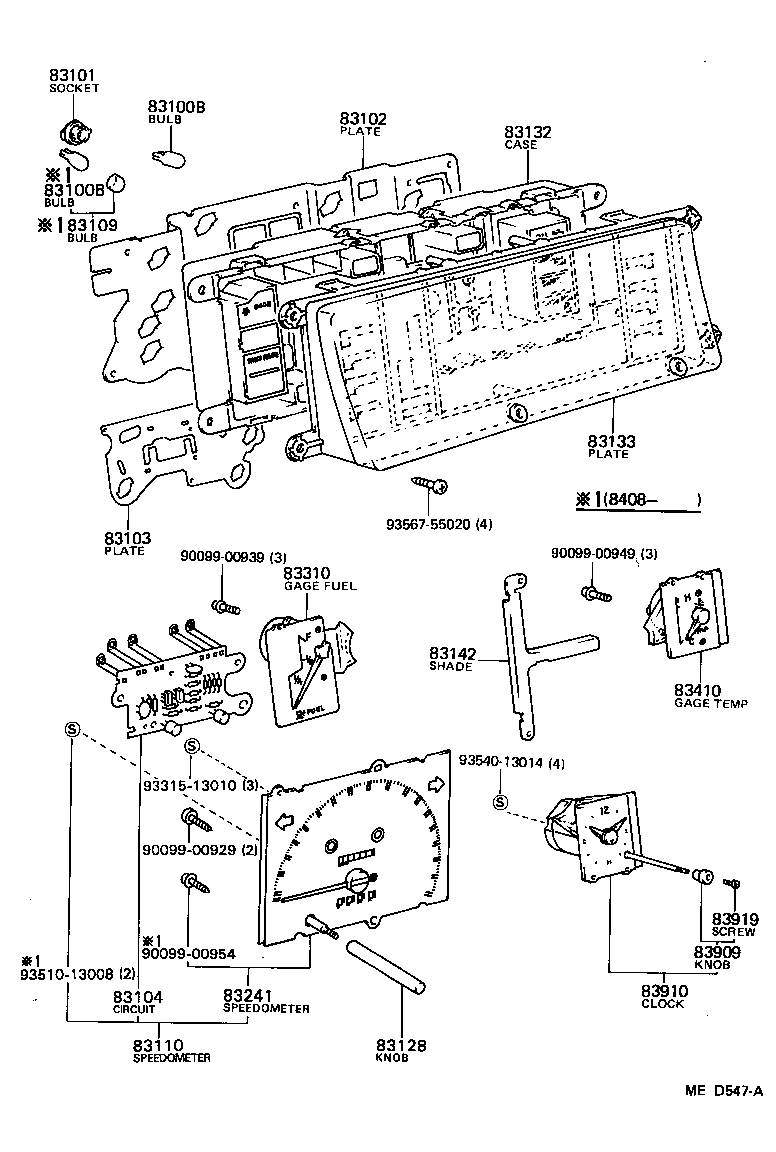

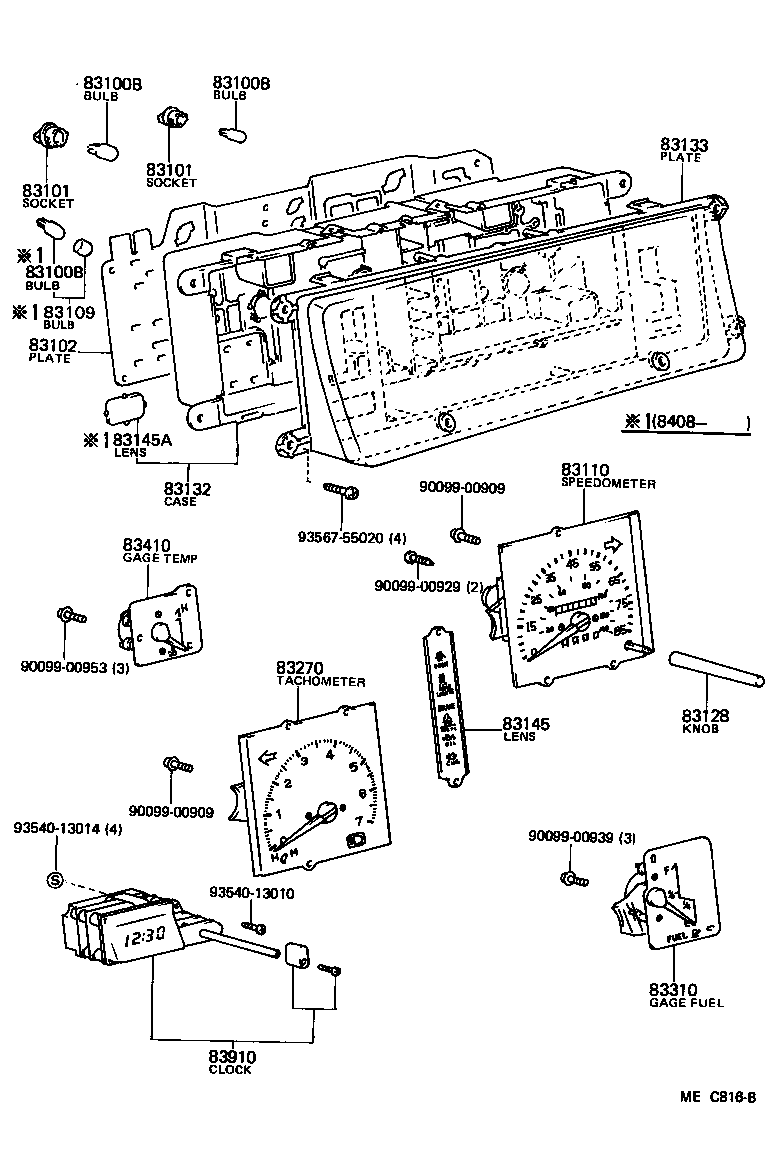

Part groups
| PNC | Description |
|---|---|
| 83100B | Bulb, Combination Meter, NO.1 |
| 83101 | Socket Sub-assy, Combination Meter Bulb |
| 83102 | Plate Sub-assy, Combination Meter Circuit, NO.1 |
| 83103 | Plate Sub-assy, Combination Meter Circuit, NO.2 |
| 83104 | Plate Sub-assy, Combination Meter Circuit, NO.3 |
| 83109 | Bulb, Combination Meter, NO.2 |
| 83110 | Speedometer Assy |
| 83121 | Counter, Total |
| 83128 | Knob, Trip Counter |
| 83129 | Wire, Meter |
| 83131 | Dial, Meter, NO.1 |
| 83132 | Case, Combination Meter |
| 83133 | Plate, Combination Meter, NO.1 |
| 83133A | Plate, Combination Meter, NO.2 |
| 83133B | Plate, Combination Meter, NO.3 |
| 83142 | Shade, Combination Meter Lamp |
| 83145 | Lens, Meter, NO.1 |
| 83145A | Lens, Meter, NO.2 |
| 83159 | Switch, Meter, NO.1 |
| 83180 | Detector Assy, Revolution |
| 83241 | Meter Sub-assy, Speed |
| 83270 | Tachometer Assy, Engine |
| 83310 | Gage Assy, Fuel Receiver |
| 83410 | Gage Assy, Water Temperature Receiver |
| 83710 | Cable Assy, Speedometer Drive, NO.1 |
| 83909 | Knob, Clock |
| 83910 | Clock Assy |
| 83919 | Screw, Clock |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
