Toyota Camry

1983-01 → 1986-07 · chassis SV1#,CV1# · catalogue 281420 · Europe

Discontinued model Data version 1987-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Speaker

7 part groups · 2 illustrations

Illustrations

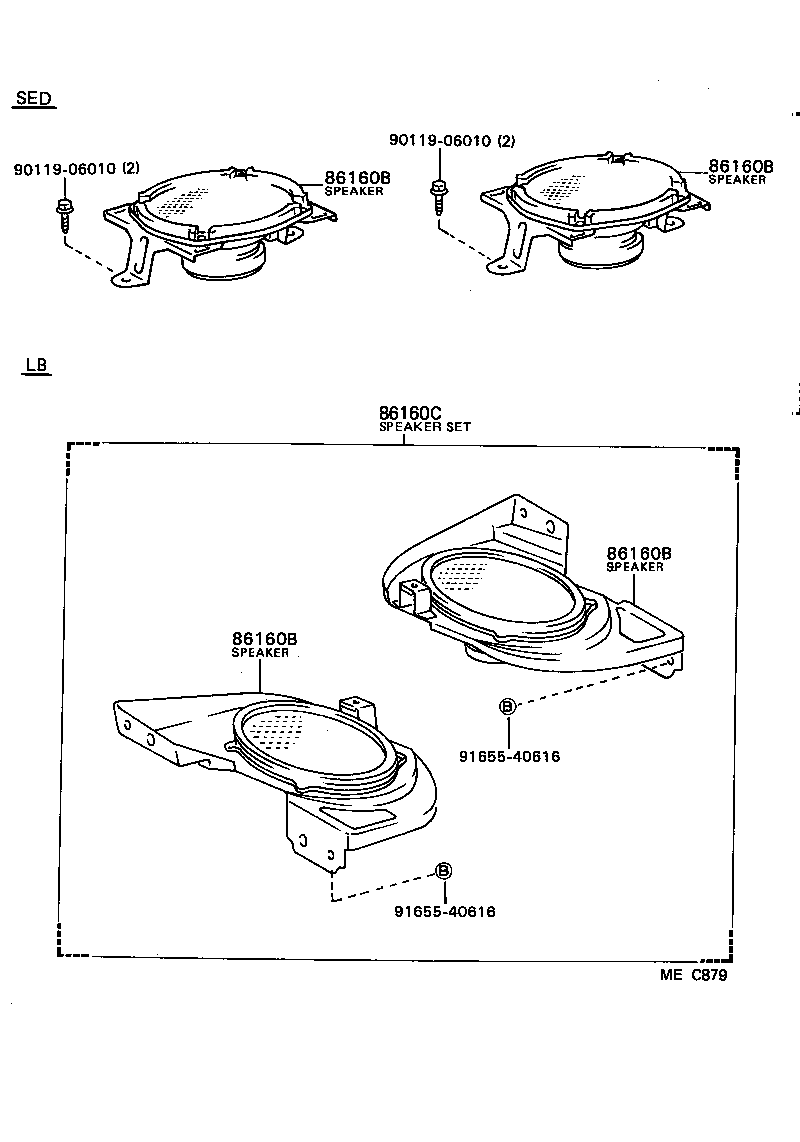

Figure MEC829C MEC829C 1983-01 → — Figure MEC879 MEC879 1983-01 → —

Part groups

PNCDescription
86160 Speaker Assy, Front NO.1
86160A Speaker Set, Front
86160B Speaker Assy, Rear
86160C Speaker Set, Rear
86160P Speaker Assy, Front NO.2
86161 Bracket, Speaker, Front NO.1
86161B Bracket, Speaker, Front NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
