Factory parts data · Europe

Toyota Camry

1983-01 → 1986-07 · chassis SV1#,CV1# · catalogue 281420 · Europe

Discontinued model Data version 1987-03

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Antenna

7 part groups · 2 illustrations

Illustrations

Figure MEC830D

MEC830D 1983-01 → —

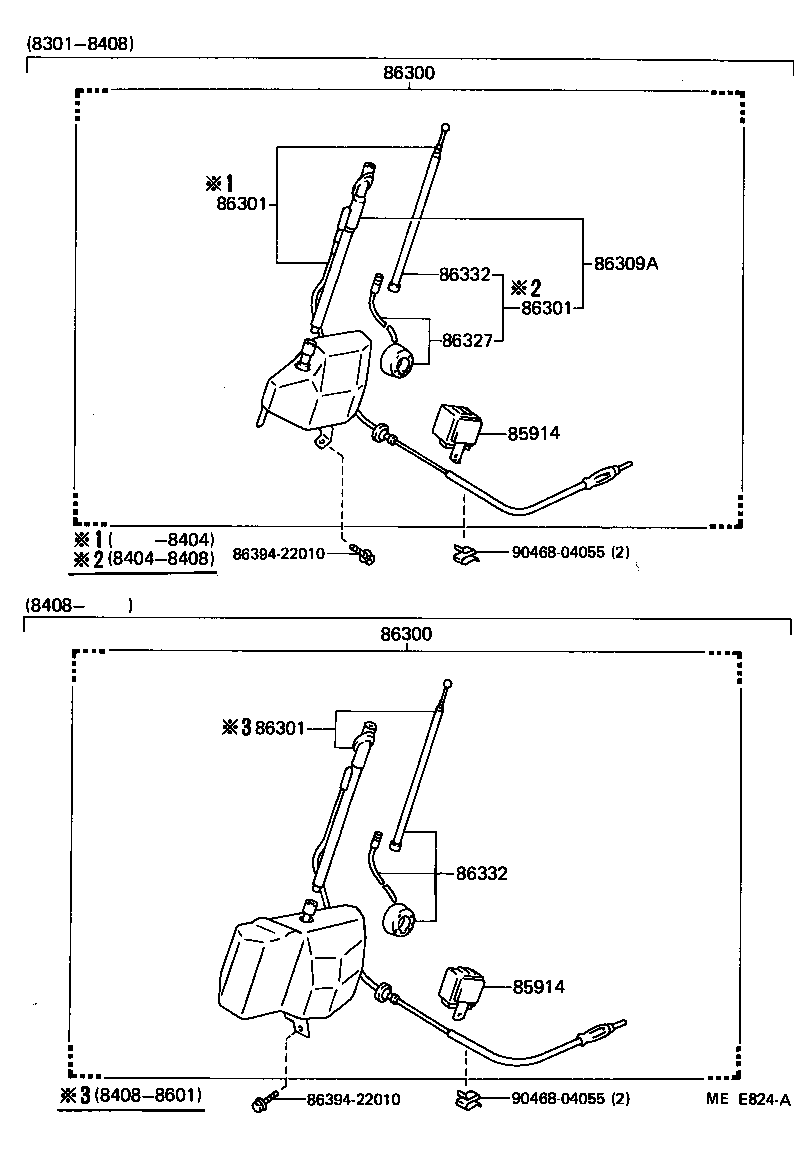

Figure MEE824A

MEE824A 1983-01 → —

Part groups

PNC	Description
85914	Relay, Motor Antenna Control
86300	Antenna Assy, W/Holder
86301	Pole Sub-assy, Antenna
86309A	Pole Sub-assy, Motor Antenna
86327	Cable, W/Antenna Drum
86332	Rod, Antenna
86396	Nut, Antenna

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
