Toyota Camry

1986-08 → 1988-08 · chassis SV2#,VZV21 · catalogue 281430 · Europe

Discontinued model Data version 1989-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

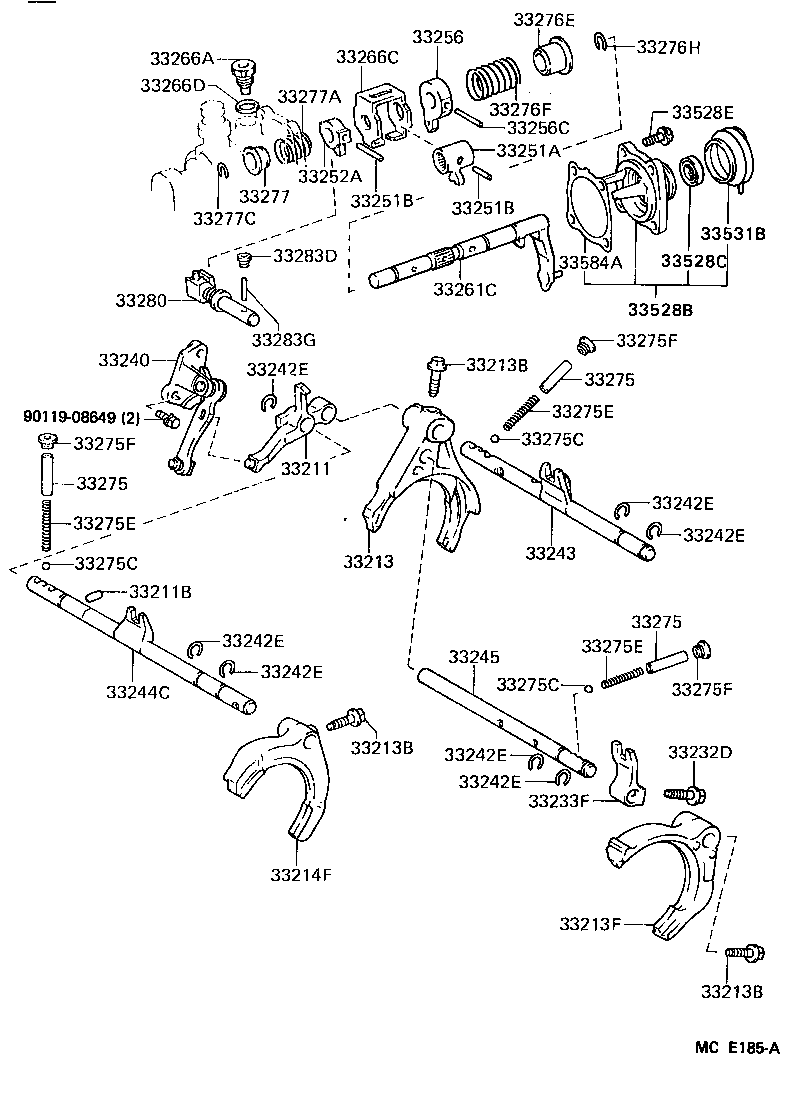

Exploded illustration MCE185A 33276E — SEAT, SELECT SPRING, NO.1 (1 parts) 33256 — LEVER, SELECT INNER (1 parts) 33276H — RING, SHAFT SNAP (FOR SELECT SPRING NO.1 SEAT) (1 parts) 33266C — PLATE, SHIFT INTERLOCK (2 parts) 33266A — BOLT (FOR SHIFT INTERLOCK PLATE) (1 parts) 33266D — GASKET (FOR SHIFT INTERLOCK PLATE) (1 parts) 33277A — SPRING, COMPRESSION, NO.2 (FOR SELECT RETURN) (2 parts) 33276F — SPRING, COMPRESSION, NO.1 (FOR SELECT RETURN) (2 parts) 33528E — BOLT (FOR CONTROL SHAFT COVER) (1 parts) 33256C — PIN, SLOTTED SPRING (FOR SELECT INNER LEVER) (1 parts) 33251A — LEVER, SHIFT, INNER NO.1 (2 parts) 33252A — LEVER, SHIFT, INNER NO.2 (2 parts) 33277 — SEAT, SELECT SPRING, NO.2 (1 parts) 33251B — PIN, SLOTTED SPRING (FOR SHIFT INNER LEVER) (4 parts) 33251B — PIN, SLOTTED SPRING (FOR SHIFT INNER LEVER) (4 parts) 33277C — RING, SHAFT SNAP (FOR SELECT SPRING NO.2 SEAT) (1 parts) 33531B — BOOT, DUST (FOR SHIFT & SELECT LEVER SHAFT) (2 parts) 33283D — PLUG (FOR REVERSE RESTRICT PIN) (1 parts) 33528C — SEAL, OIL (FOR CONTROL SHAFT COVER) (2 parts) 33584A — GASKET, CONTROL SHIFT LEVER RETAINER (1 parts) 33261C — SHAFT, SHIFT & SELECT LEVER (3 parts) 33280 — PIN ASSY, REVERSE RESTRICT (2 parts) 33528B — COVER, CONTROL SHAFT (2 parts) 33283G — PIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN) (1 parts) 33275F — PLUG (FOR SHIFT DETENT BALL) (1 parts) 33240 — BRACKET ASSY, REVERSE SHIFT ARM (2 parts) 33213B — BOLT(FOR SHIFT FORK SET) (2 parts) 33242E — RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) (2 parts) 33275 — SEAT, SHIFT DETENT BALL SPRING, NO.1 (1 parts) 33275E — SPRING, COMPRESSION (FOR SHIFT DETENT BALL) (1 parts) 9011908649 — not listed in this catalogue 33275C — BALL (FOR SHIFT DETENT) (2 parts) 33275F — PLUG (FOR SHIFT DETENT BALL) (1 parts) 33211 — FORK, REVERSE SHIFT (2 parts) 33275 — SEAT, SHIFT DETENT BALL SPRING, NO.1 (1 parts) 33242E — RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) (2 parts) 33275E — SPRING, COMPRESSION (FOR SHIFT DETENT BALL) (1 parts) 33242E — RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) (2 parts) 33243 — SHAFT, 1ST & 2ND SHIFT FORK (1 parts) 33213 — FORK, 1ST & 2ND SHIFT (2 parts) 33275C — BALL (FOR SHIFT DETENT) (2 parts) 33211B — ROLLER(FOR REVERSE SHIFT FORK) (2 parts) 33275 — SEAT, SHIFT DETENT BALL SPRING, NO.1 (1 parts) 33242E — RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) (2 parts) 33275E — SPRING, COMPRESSION (FOR SHIFT DETENT BALL) (1 parts) 33245 — SHAFT, 3RD & 4TH SHIFT FORK (1 parts) 33242E — RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) (2 parts) 33275C — BALL (FOR SHIFT DETENT) (2 parts) 33275F — PLUG (FOR SHIFT DETENT BALL) (1 parts) 33244C — SHAFT, REVERSE & 5TH SHIFT FORK (1 parts) 33213B — BOLT(FOR SHIFT FORK SET) (2 parts) 33232D — BOLT (FOR SHIFT HEAD SET) (1 parts) 33242E — RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) (2 parts) 33242E — RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) (2 parts) 33233F — HEAD, 3RD & 4TH SHIFT (1 parts) 33214F — FORK, 5TH SHIFT (2 parts) 33213F — FORK, 3RD & 4TH SHIFT (2 parts) 33213B — BOLT(FOR SHIFT FORK SET) (2 parts)
MCE185A · 57 callouts, 1 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
63 parts on this figure
Part number Description Fitment Price
33211 — Fork, Reverse Shift
33211-20010 Fork, Reverse Shift
1987-10 → 1988-08 ended
SV25,VZV21 5F —
33211-32010 Fork, Reverse Shift
1986-08 → 1988-08 ended
SV21 5F —
33211B — Roller(FOR REVERSE SHIFT FORK)
90361-08002 Roller(FOR REVERSE SHIFT FORK)
1986-08 → 1988-08 ended
SV21 5F —
90361-08005 Roller(FOR REVERSE SHIFT FORK)
1987-10 → 1988-08 ended
SV25,VZV21 5F —
33213 — Fork, 1ST & 2ND Shift
33210-32010 Fork, 1ST & 2ND Shift
1986-08 → 1988-08 ended
SV21 5F —
33212-20060 Fork, 1ST & 2ND Shift
1988-02 → 1988-08 ended
VZV21 5F —
33213B — Bolt(FOR SHIFT FORK SET)
90105-06065 Bolt(FOR SHIFT FORK SET)
1986-08 → 1988-08 ended
SV21 5F —
90105-07002 Bolt(FOR SHIFT FORK SET)
1987-10 → 1988-08 ended
SV25,VZV21 5F —
33213F — Fork, 3RD & 4TH Shift
33213-20042 Fork, 3RD & 4TH Shift
1988-02 → 1988-08 ended
VZV21 5F —
33220-32010 Fork, 3RD & 4TH Shift
1986-08 → 1988-08 ended
SV21 5F —
33214F — Fork, 5TH Shift
33214-20031 Fork, 5TH Shift
1988-02 → 1988-08 ended
VZV21 5F —
33214-32011 Fork, 5TH Shift
1986-08 → 1988-08 ended
SV21 5F —
33232D — Bolt (FOR SHIFT HEAD SET)
90105-07002 Bolt (FOR SHIFT HEAD SET)
1987-10 → 1988-08 ended
SV25,VZV21 5F —
33233F — Head, 3RD & 4TH Shift
33232-20010 Head, 3RD & 4TH Shift
1988-02 → 1988-08 ended
VZV21 5F —
33240 — Bracket Assy, Reverse Shift Arm
33240-12020 Bracket Assy, Reverse Shift Arm
1987-10 → 1988-08 ended
SV25 —
33240-20010 Bracket Assy, Reverse Shift Arm
1988-02 → 1988-08 ended
VZV21 5F —
33242E — Ring, Shaft Snap (FOR SHIFT FORK SHAFT)
90520-13002 Ring, Shaft Snap (FOR SHIFT FORK SHAFT)
1988-02 → 1988-08 ended
VZV21 5F —
90520-13002 Ring, Shaft Snap (FOR SHIFT FORK SHAFT)
1987-10 → 1988-08 ended
SV25 —
33243 — Shaft, 1ST & 2ND Shift Fork
33205-20010 Shaft, 1ST & 2ND Shift Fork
1988-02 → 1988-08 ended
VZV21 5F —
33244C — Shaft, Reverse & 5TH Shift Fork
33244-20040 Shaft, Reverse & 5TH Shift Fork
1988-02 → 1988-08 ended
VZV21 5F —
33245 — Shaft, 3RD & 4TH Shift Fork
33243-20060 Shaft, 3RD & 4TH Shift Fork
1988-02 → 1988-08 ended
VZV21 5F —
33251A — Lever, Shift, Inner NO.1
33251-20050 Lever, Shift, Inner NO.1
1987-10 → 1988-08 ended
SV25,VZV21 5F —
33251-32030 Lever, Shift, Inner NO.1
1986-08 → 1988-08 ended
SV21 5F —
33251B — Pin, Slotted Spring (FOR SHIFT INNER LEVER)
90254-05002 note Pin, Slotted Spring (FOR SHIFT INNER LEVER)
1988-02 → 1988-08 ended
VZV21 5F —
90254-05007 note Pin, Slotted Spring (FOR SHIFT INNER LEVER)
1986-08 → 1988-08 ended
SV21 5F —
90254-05007 note Pin, Slotted Spring (FOR SHIFT INNER LEVER)
1987-10 → 1988-08 ended
SV25 —
90254-05016 note Pin, Slotted Spring (FOR SHIFT INNER LEVER)
1987-10 → 1988-08 ended
SV25,VZV21 5F —
33252A — Lever, Shift, Inner NO.2
33252-20020 Lever, Shift, Inner NO.2
1987-10 → 1988-08 ended
SV25,VZV21 5F —
33252-32030 Lever, Shift, Inner NO.2
1986-08 → 1988-08 ended
SV21 5F —
33256 — Lever, Select Inner
33256-20010 Lever, Select Inner
1987-10 → 1988-08 ended
SV25,VZV21 5F —
33256C — Pin, Slotted Spring (FOR SELECT INNER LEVER)
90254-05002 Pin, Slotted Spring (FOR SELECT INNER LEVER)
1987-10 → 1988-08 ended
SV25,VZV21 5F —
33261C — Shaft, Shift & Select Lever
33261-12060 Shaft, Shift & Select Lever
1987-10 → 1988-08 ended
SV25 —
33261-20060 Shaft, Shift & Select Lever
1988-02 → 1988-08 ended
VZV21 5F —
33261-32030 Shaft, Shift & Select Lever
1986-08 → 1988-08 ended
SV21 5F —
33266A — Bolt (FOR SHIFT INTERLOCK PLATE)
90109-18002 Bolt (FOR SHIFT INTERLOCK PLATE)
1987-10 → 1988-08 ended
SV25,VZV21 5F —
33266C — Plate, Shift Interlock
33266-20010 Plate, Shift Interlock
1987-10 → 1988-08 ended
SV25,VZV21 5F —
33266-32020 Plate, Shift Interlock
1986-08 → 1988-08 ended
SV21 5F —
33266D — Gasket (FOR SHIFT INTERLOCK PLATE)
90430-18008 Gasket (FOR SHIFT INTERLOCK PLATE)
1987-10 → 1988-08 ended
SV25,VZV21 5F —
33275 — Seat, Shift Detent Ball Spring, NO.1
33275-20010 note Seat, Shift Detent Ball Spring, NO.1
1987-10 → 1988-08 ended
SV25,VZV21 5F —
33275C — Ball (FOR SHIFT DETENT)
90360-08009 Ball (FOR SHIFT DETENT)
1987-10 → 1988-08 ended
SV25 —
90360-08009 Ball (FOR SHIFT DETENT)
1988-02 → 1988-08 ended
VZV21 5F —
33275E — Spring, Compression (FOR SHIFT DETENT BALL)
90501-14104 Spring, Compression (FOR SHIFT DETENT BALL)
1987-10 → 1988-08 ended
SV25,VZV21 5F —
33275F — Plug (FOR SHIFT DETENT BALL)
90341-12004 Plug (FOR SHIFT DETENT BALL)
1987-10 → 1988-08 ended
SV25,VZV21 5F —
33276E — Seat, Select Spring, NO.1
33276-20010 Seat, Select Spring, NO.1
1987-10 → 1988-08 ended
SV25,VZV21 5F —
33276F — Spring, Compression, NO.1 (FOR SELECT RETURN)
90501-14092 Spring, Compression, NO.1 (FOR SELECT RETURN)
1986-08 → 1988-08 ended
SV21 5F —
90501-16103 Spring, Compression, NO.1 (FOR SELECT RETURN)
1987-10 → 1988-08 ended
SV25,VZV21 5F —
33276H — Ring, Shaft Snap (FOR SELECT SPRING NO.1 SEAT)
90520-15003 Ring, Shaft Snap (FOR SELECT SPRING NO.1 SEAT)
1987-10 → 1988-08 ended
SV25,VZV21 5F —
33277 — Seat, Select Spring, NO.2
33277-20010 Seat, Select Spring, NO.2
1987-10 → 1988-08 ended
SV25,VZV21 5F —
33277A — Spring, Compression, NO.2 (FOR SELECT RETURN)
90501-15009 Spring, Compression, NO.2 (FOR SELECT RETURN)
1986-08 → 1988-08 ended
SV21 5F —
90501-18068 Spring, Compression, NO.2 (FOR SELECT RETURN)
1988-02 → 1988-08 ended
SV25,VZV21 5F —
33277C — Ring, Shaft Snap (FOR SELECT SPRING NO.2 SEAT)
90520-12003 Ring, Shaft Snap (FOR SELECT SPRING NO.2 SEAT)
1987-10 → 1988-08 ended
SV25,VZV21 5F —
33280 — Pin Assy, Reverse Restrict
33280-20040 Pin Assy, Reverse Restrict
1987-10 → 1988-08 ended
SV25,VZV21 5F —
33280-32011 Pin Assy, Reverse Restrict
1986-08 → 1988-08 ended
SV21 5F —
33283D — Plug (FOR REVERSE RESTRICT PIN)
90341-10065 Plug (FOR REVERSE RESTRICT PIN)
1987-10 → 1988-08 ended
SV25,VZV21 5F —
33283G — Pin, Slotted Spring (FOR REVERSE RESTRICT PIN)
90254-05003 Pin, Slotted Spring (FOR REVERSE RESTRICT PIN)
1987-10 → 1988-08 ended
SV25,VZV21 5F —
33528B — Cover, Control Shaft
33506-20210 Cover, Control Shaft
1987-10 → 1988-08 ended
SV25,VZV21 5F —
33506-32040 Cover, Control Shaft
1986-08 → 1988-08 ended
SV21 5F —
33528C — Seal, Oil (FOR CONTROL SHAFT COVER)
90311-18004 Seal, Oil (FOR CONTROL SHAFT COVER)
1986-08 → 1988-08 ended
SV21 5F —
90311-18009 Seal, Oil (FOR CONTROL SHAFT COVER)
1988-02 → 1988-08 ended
SV25,VZV21 5F —
33528E — Bolt (FOR CONTROL SHAFT COVER)
90119-10288 note Bolt (FOR CONTROL SHAFT COVER)
1987-10 → 1988-08 ended
SV25,VZV21 5F —
33531B — Boot, Dust (FOR SHIFT & SELECT LEVER SHAFT)
33531-12020 Boot, Dust (FOR SHIFT & SELECT LEVER SHAFT)
1987-10 → 1988-08 ended
SV25,VZV21 5F —
33531-32011 Boot, Dust (FOR SHIFT & SELECT LEVER SHAFT)
1986-08 → 1988-08 ended
SV21 5F —
33584A — Gasket, Control Shift Lever Retainer
33584-20020 Gasket, Control Shift Lever Retainer
1987-10 → 1988-08 ended
SV25,VZV21 5F —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
