Toyota Camry

1986-08 → 1988-08 · chassis SV2#,VZV21 · catalogue 281430 · Europe

Discontinued model Data version 1989-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Axle Shaft & Hub

27 part groups · 3 illustrations

Illustrations

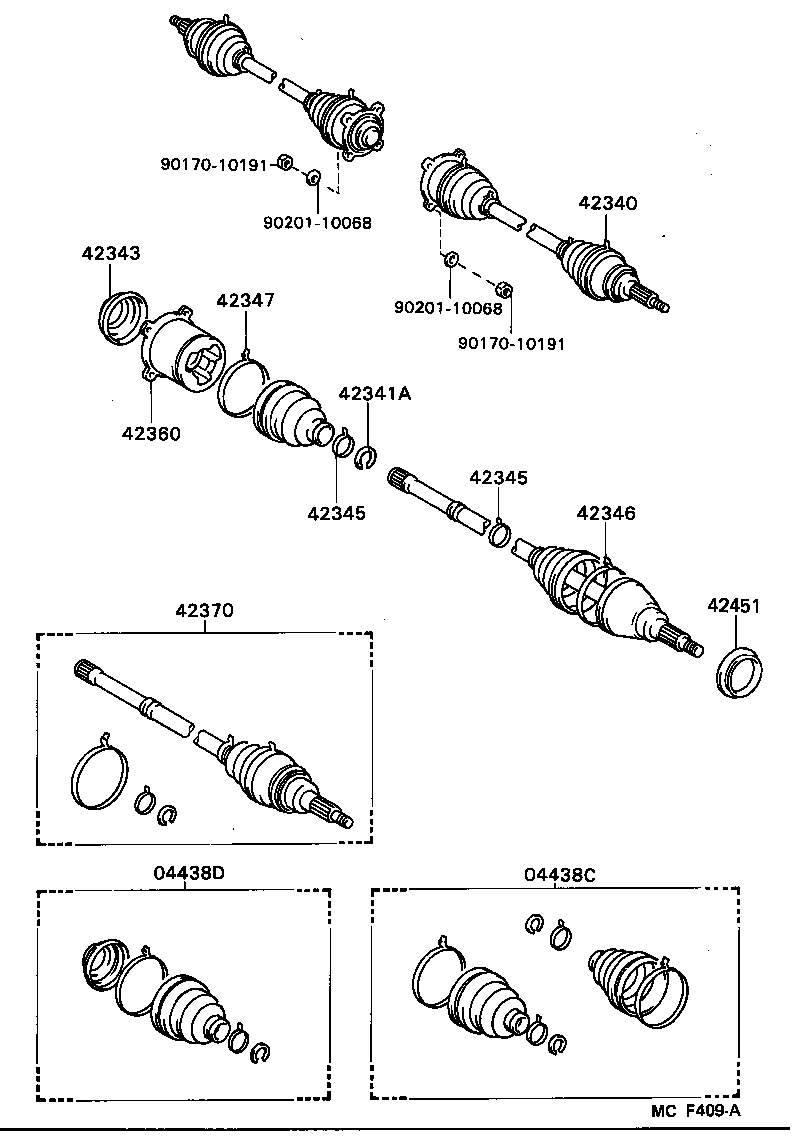

Figure MCD564A MCD564A 1986-08 → — Figure MCF383A MCF383A 1987-10 → — Figure MCF409A MCF409A 1987-10 → —

Part groups

PNCDescription
04438C Boot Kit, Rear Drive Shaft
04438D Boot Kit, Rear Drive Shaft Inboard Joint
42311 Shaft, Rear Axle
42311A Seal, Oil(FOR REAR AXLE SHAFT)
42311C Bearing(FOR REAR AXLE SHAFT)
42311D Ring, Snap(FOR REAR AXLE SHAFT)
42311F Washer, Plate(FOR REAR AXLE SHAFT)
42311G Nut(FOR REAR AXLE SHAFT)
42340 Shaft Assy, Rear Drive
42341A Ring, Snap (FOR REAR DRIVE SHAFT)
42343 Cover, Outboard Joint End
42345 Clamp, Rear Drive Shaft Boot
42346 Clamp (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT)
42347 Clamp (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)
42360 Joint Assy, Rear Drive Shaft Inboard
42370 Shaft Assy, Rear Drive Outboard Joint
42403 Drum Sub-assy, Rear Brake
42403A Piece, Balance (FOR REAR BRAKE DRUM)
42409 Bearing Sub-assy, Rear Axle
42421 Case, Rear Axle Bearing
42421A Bolt (FOR REAR AXLE BEARING CASE)
42421C Ring, O (FOR REAR AXLE BEARING CASE)
42431 Disc, Rear
42451 Deflector, Rear Wheel Bearing Dust, NO.1
42491 Plug, Shoe Adjusting Hole (FOR PARKING BRAKE)
42611E Bolt, Hub (FOR REAR AXLE)
43525A Cap, Rear Wheel Adjusting Lock
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
