Toyota Camry
1986-08 → 1988-08 · chassis SV2#,VZV21 · catalogue 281430 · Europe
Discontinued model
Data version 1989-04

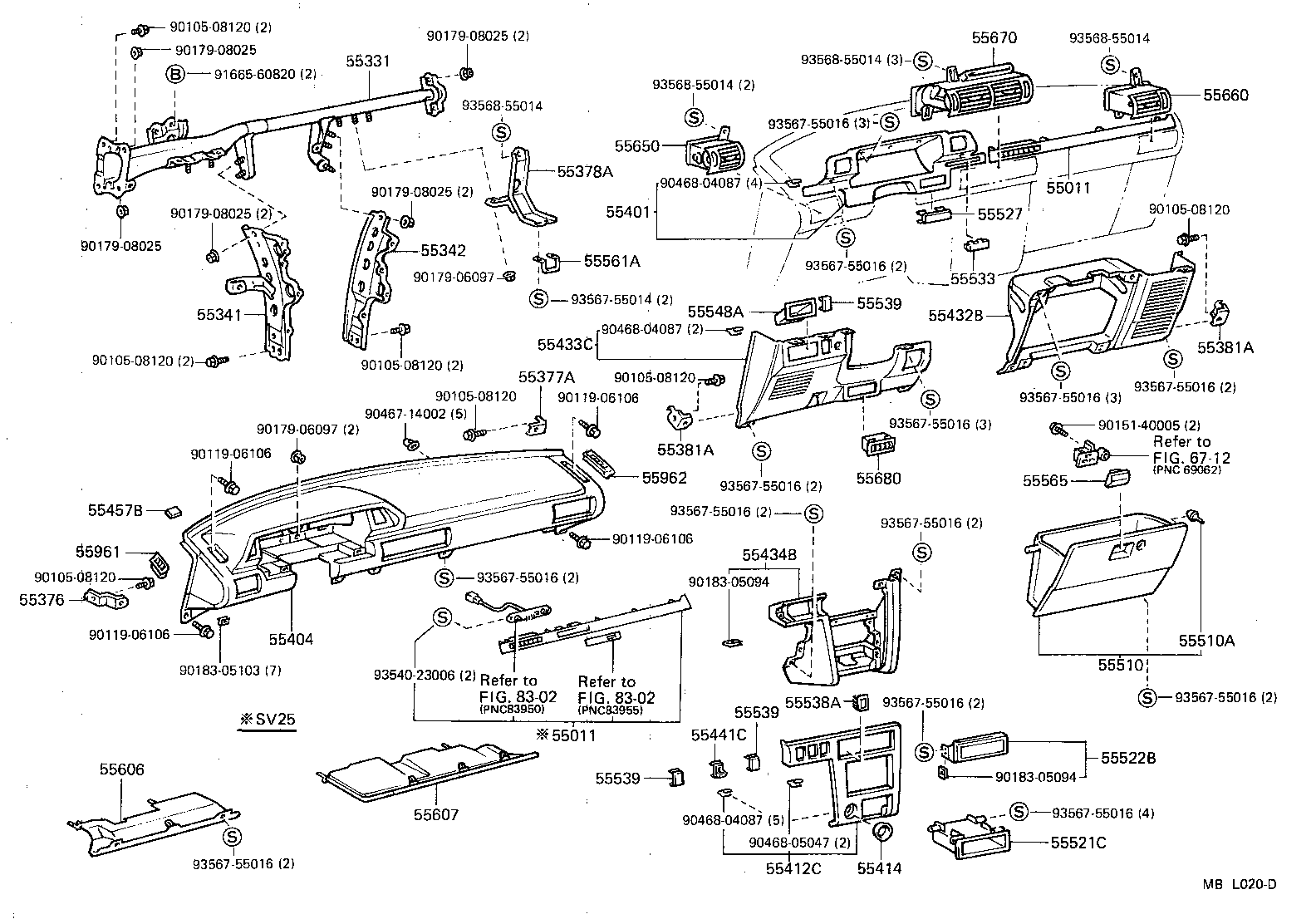

Instrument Panel & Glove Compartment
53 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 55011 | Garnish Sub-assy, Instrument Panel Safety Pad |
| 55308C | Bracket Sub-assy, Instrument Panel, Center |
| 55321B | Bracket, Instrument Panel, NO.1 |
| 55331 | Reinforcement, Instrument Panel |
| 55337 | Reinforcement, Instrument Panel Sub |
| 55341 | Brace, Instrument Panel, NO.1 |
| 55342 | Brace, Instrument Panel, NO.2 |
| 55374A | Bracket, Instrument Panel Lower Mounting, RH |
| 55375A | Bracket, Instrument Panel Lower Mounting, LH |
| 55376 | Bracket, Instrument Panel Mounting, NO.1 |
| 55377A | Bracket, Instrument Panel Mounting, NO.2 |
| 55378A | Bracket, Glove Compartment Door Lock Mounting |
| 55381A | Bracket, Finish Panel Mounting |
| 55401 | Panel Sub-assy, Instrument Cluster Finish |
| 55402C | Pad Sub-assy, Instrument Panel, Lower RH |
| 55403C | Pad Sub-assy, Instrument Panel, Lower LH |
| 55404 | Safety Pad Sub-assy, Instrument Panel, Upper |
| 55409A | Panel Sub-assy, Instrument Panel Speaker |
| 55409B | Pad Sub-assy, Instrument Panel, Lower Center |
| 55412C | Panel, Instrument Cluster Finish, Center NO.1 |
| 55414 | Bezel, Cigar Lighter Hole |
| 55427D | Retainer, Instrument Finish Panel, Lower, NO.1 |
| 55428D | Retainer, Instrument Finish Panel, Lower NO.2 |
| 55432B | Panel, Instrument Panel Finish, Lower |
| 55433C | Panel, Instrument Panel Finish, Lower LH |
| 55434B | Panel, Instrument Panel Finish, Lower Center |
| 55441C | Box, Instrument Panel Coin |
| 55446A | Base, Switch Hole, NO.1 |
| 55447C | Base, Switch Hole, NO.2 |
| 55457B | Spacer, Instrument Panel Safety Pad |
| 55510 | Door Assy, Glove Compartment |
| 55510A | Cushion(FOR GLOVE COMPARTMENT DOOR) |
| 55521C | Cover, Stereo Opening |
| 55522B | Cover, Radio Tuner Opening |
| 55527 | Cover, Transmission Control Switch Hole |
| 55533 | Cover, Auto Clock Hole |
| 55538A | Cover, Cooler Switch Hole |
| 55539 | Cover, Spare Switch Hole |
| 55544 | Cover, Instrument Panel Register Hole |
| 55548A | Cover, Instrument Panel Hole |
| 55556 | Arm, Glove Compartment Door Check |
| 55561A | Striker, Glove Compartment Door Lock |
| 55565 | Handle, Glove Compartment Door Lock |
| 55581A | Compartment, Glove |
| 55590 | Plate Assy, Grove Compartment Door Lock Striker |
| 55606 | Cover Sub-assy, Instrument Panel Under, NO.1 |
| 55607 | Cover Sub-assy, Instrument Panel Under, NO.2 |
| 55650 | Register Assy, Instrument Panel, NO.1 |
| 55660 | Register Assy, Instrument Panel, NO.2 |
| 55670 | Register Assy, Instrument Panel, NO.3 |
| 55680 | Register Assy, Instrument Panel, Lower NO.1 |
| 55961 | Nozzle, Side Defroster, NO.1 |
| 55962 | Nozzle, Side Defroster, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
