Toyota Camry

1986-08 → 1988-08 · chassis SV2#,VZV21 · catalogue 281430 · Europe

Discontinued model Data version 1989-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

8 part groups · 2 illustrations

Illustrations

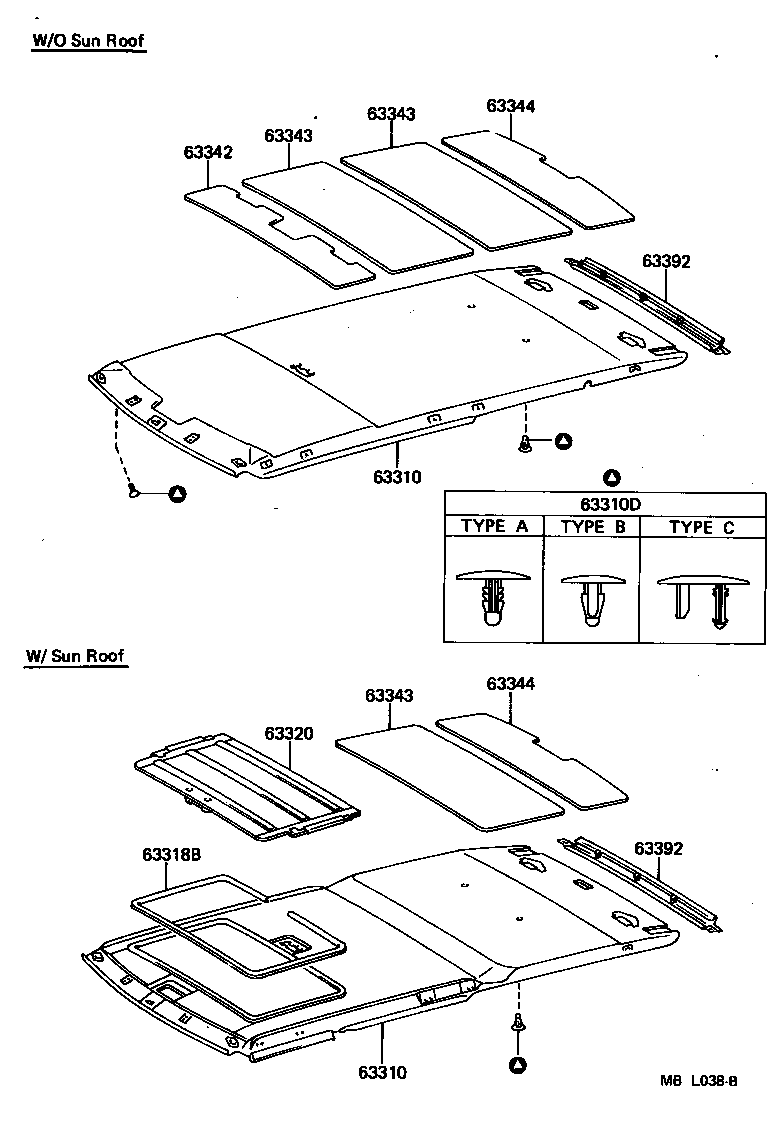

Figure MBK962A MBK962A 1986-08 → — Figure MBL038B MBL038B 1986-08 → —

Part groups

PNCDescription
63310 Headlining Assy, Roof
63310D Clip, Roof Headlining
63318B Moulding, Roof Headlining Set, NO.1
63320 Headlining Assy, Sun Roof OR Removable Roof
63342 Pad, Roof Silencer, NO.2
63343 Pad, Roof Silencer, NO.3
63351 Silencer, Roof Side
63392 Trim, Roof Headlining, Rear
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
