Toyota Camry
1986-08 → 1988-08 · chassis SV2#,VZV21 · catalogue 281430 · Europe
Discontinued model
Data version 1989-04

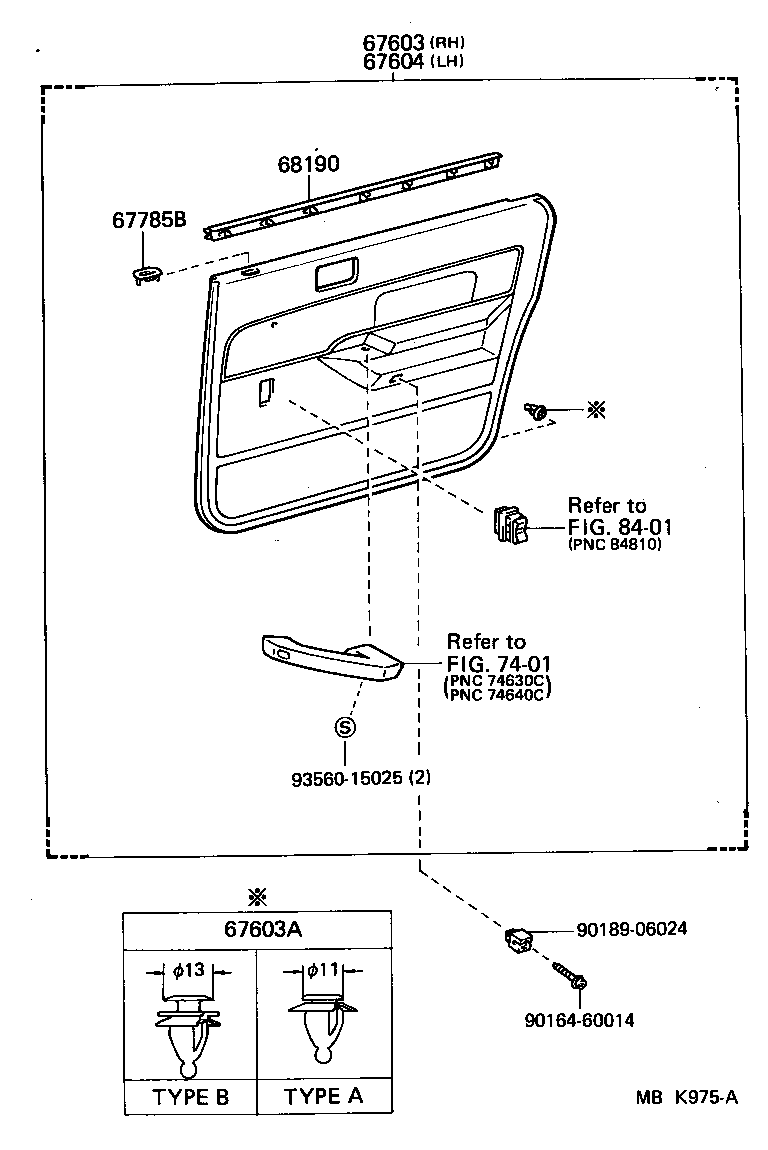

Rear Door Panel & Glass
27 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 67003 | Panel Sub-assy, Rear Door, RH |
| 67004 | Panel Sub-assy, Rear Door, LH |
| 67113 | Panel, Rear Door, Outer RH |
| 67114 | Panel, Rear Door, Outer LH |
| 67407D | Guide Sub-assy, Rear Door Window, Rear RH |
| 67408D | Guide Sub-assy, Rear Door Window, Rear LH |
| 67487C | Seal, Rear Door Rear Guide, RH |
| 67488C | Seal, Rear Door Rear Guide, LH |
| 67603 | Board Sub-assy, Rear Door Trim, RH |
| 67603A | Retainer(FOR REAR DOOR TRIM BOARD) |
| 67604 | Board Sub-assy, Rear Door Trim, LH |
| 67785B | Holder, Door Locking Button Collar(FOR REAR DOOR) |
| 67841B | Cover, Rear Door Service Hole |
| 67857B | Protector, Rear Door Panel, RH |
| 67858B | Protector, Rear Door Panel, LH |
| 67871 | Weatherstrip, Rear Door, RH |
| 67871A | Retainer(FOR REAR DOOR WEATHERSTRIP) |
| 67872 | Weatherstrip, Rear Door, LH |
| 67887A | Weatherstrip, Rear Door, NO.2 RH |
| 67887B | Clip(FOR REAR DOOR WEATHERSTRIP) |
| 67888A | Weatherstrip, Rear Door, NO.2 LH |
| 68103 | Glass Sub-assy, Rear Door, RH |
| 68104 | Glass Sub-assy, Rear Door, LH |
| 68142 | Run, Rear Door Glass |
| 68190 | Weatherstrip Assy, Rear Door Glass, Inner |
| 68630 | Check Assy, Rear Door |
| 68630A | Pin(FOR REAR DOOR CHECK) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
