Toyota Camry

1986-08 → 1988-08 · chassis SV2#,VZV21 · catalogue 281430 · Europe

Discontinued model Data version 1989-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Moulding

34 part groups · 2 illustrations

Illustrations

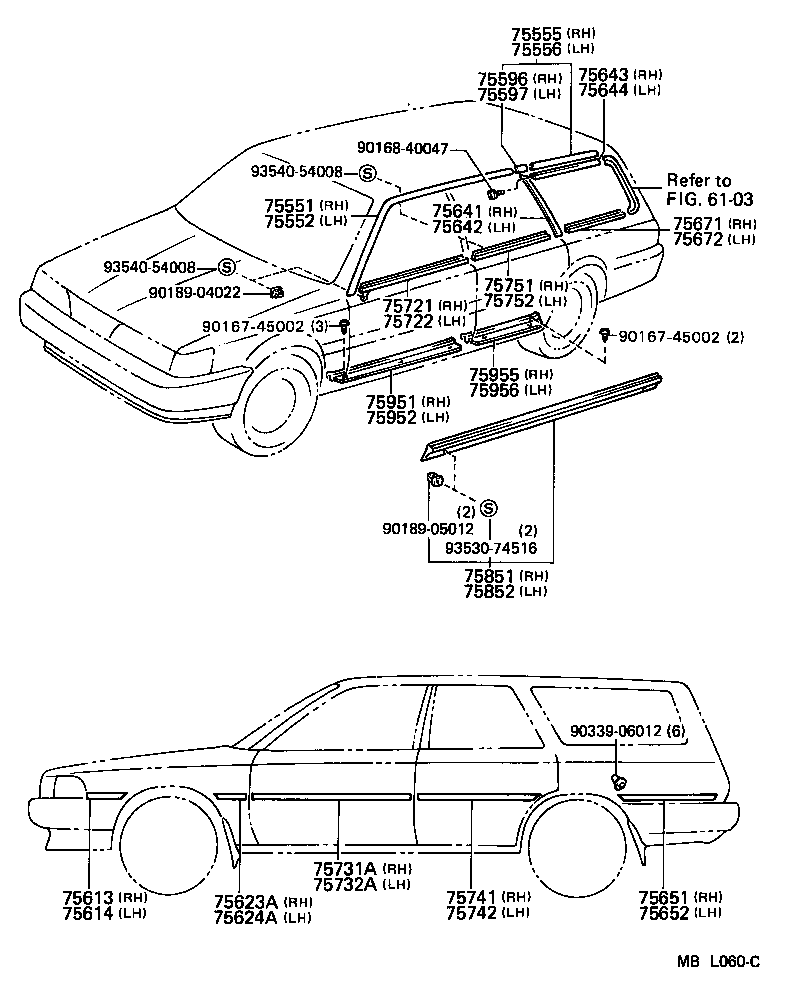

Figure MBK996B MBK996B 1986-08 → — Figure MBL060C MBL060C 1986-08 → —

Part groups

PNCDescription
75551 Moulding, Roof Drip Side Finish, RH
75552 Moulding, Roof Drip Side Finish, LH
75553 Moulding, Roof Drip Side Finish, RH
75554 Moulding, Roof Drip Side Finish, LH
75555 Moulding, Roof Drip Side Finish, Rear RH
75556 Moulding, Roof Drip Side Finish, Rear LH
75596 Cover, Roof Drip Side Finish Moulding Joint, RH
75597 Cover, Roof Drip Side Finish Moulding Joint, LH
75613 Moulding, Front Fender, Outside RH
75614 Moulding, Front Fender, Outside LH
75623A Moulding, Front Fender, Outside Rear RH
75624A Moulding, Front Fender, Outside Rear LH
75641 Moulding, Quarter Window, Outside Front RH
75642 Moulding, Quarter Window, Outside Front LH
75643 Moulding, Quarter Window, Outside Upper RH
75644 Moulding, Quarter Window, Outside Upper LH
75651 Moulding, Quarter, Outside RH
75652 Moulding, Quarter, Outside LH
75671 Moulding, Quarter Belt, RH
75672 Moulding, Quarter Belt, LH
75721 Moulding, Front Door Belt, RH
75722 Moulding, Front Door Belt, LH
75731A Moulding, Front Door, Outside RH
75732A Moulding, Front Door, Outside LH
75741 Moulding, Rear Door, Outside RH
75742 Moulding, Rear Door, Outside LH
75751 Moulding, Rear Door Belt, RH
75752 Moulding, Rear Door Belt, LH
75851 Moulding, Rocker Panel, RH
75852 Moulding, Rocker Panel, LH
75951 Plate, Front Door Scuff, Outside RH
75952 Plate, Front Door Scuff, Outside LH
75955 Plate, Rear Door Scuff, Outside RH
75956 Plate, Rear Door Scuff, Outside LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
