Toyota Camry

1986-08 → 1988-08 · chassis SV2#,VZV21 · catalogue 281430 · Europe

Discontinued model Data version 1989-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Moulding

18 part groups · 2 illustrations

Illustrations

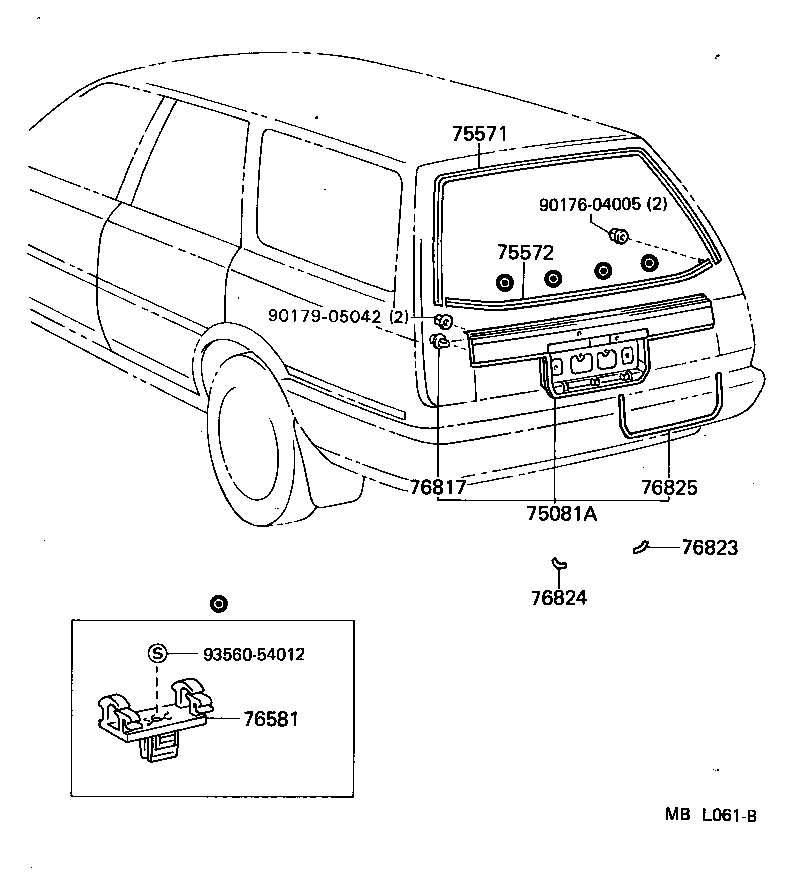

Figure MBK998C MBK998C 1986-08 → — Figure MBL061B MBL061B 1986-08 → —

Part groups

PNCDescription
75049A Clip Sub-assy, Outside Moulding, NO.2
75059D Clip Sub-assy, Outside Moulding, NO.3
75081A Panel Sub-assy, Back Door Finish
75082A Panel Sub-assy, Luggage Door Finish
75397B Clip, Back Window Moulding, NO.3
75547B Clip, Windshield Outside Moulding, NO.3
75548B Fastener, Back Window Outside Moulding
75571 Moulding, Back Window, Outside Upper
75572 Moulding, Back Window, Lower
75573 Moulding, Back Window Side, RH
75574 Moulding, Back Window Side, LH
75834A Moulding, Lower Back Finish Panel
75893 Retainer, Luggage Door Moulding
76581 Retainer, Back Window Outside Moulding
76817 Clip, Back Door Outside Garnish
76823 Protector, Back Door Garnish Moulding, RH
76824 Protector, Back Door Garnish Moulding, LH
76825 Protector, Back Door Outside Garnish
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
