Toyota Camry
1986-08 → 1988-08 · chassis SV2#,VZV21 · catalogue 281430 · Europe
Discontinued model
Data version 1989-04

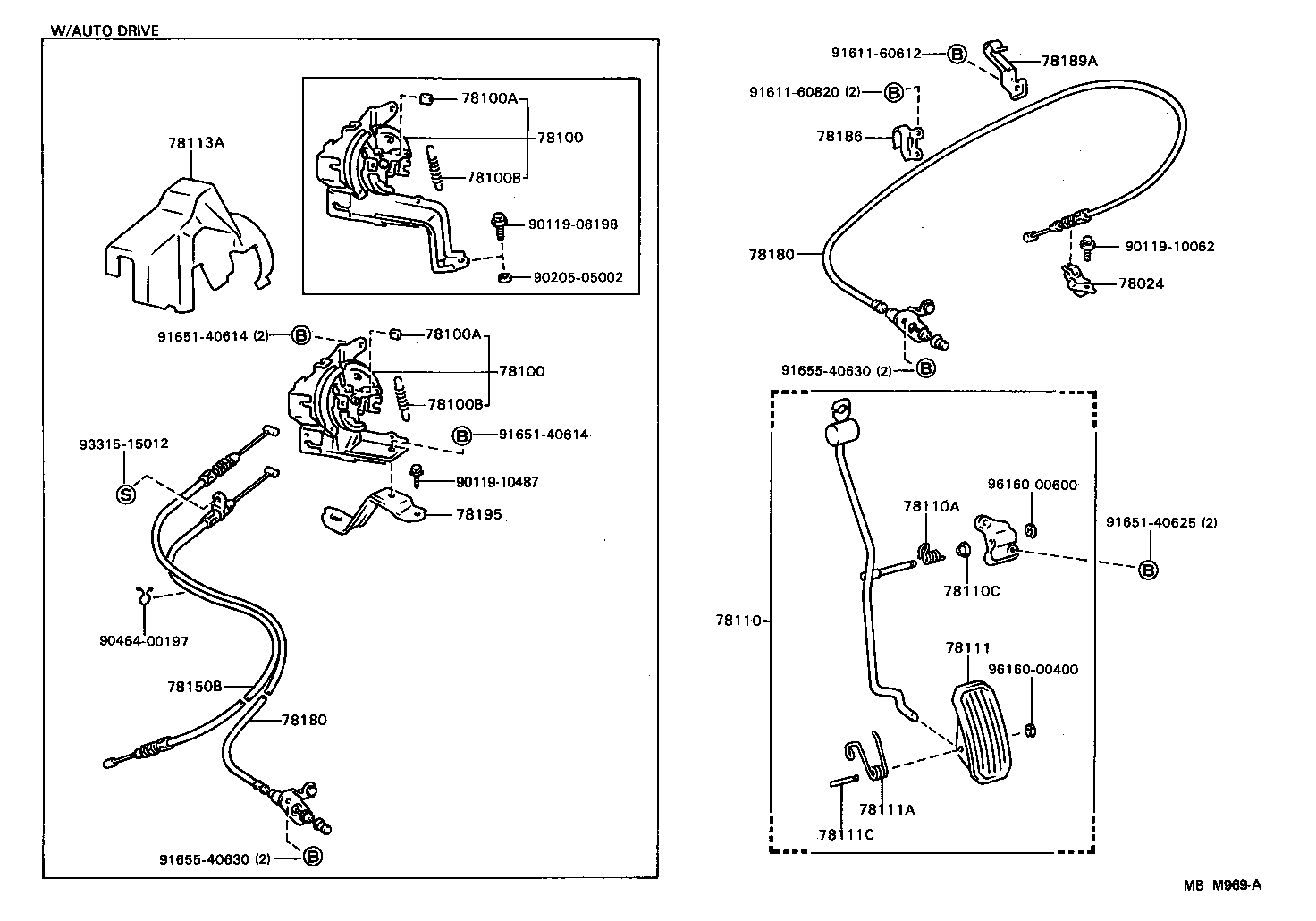

Accelerator Link
17 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 78024 | Bracket Sub-assy, Accelerator Control Cable |
| 78100 | Link Assy, Accelerator |
| 78100A | Stopper, Accelerator Link |
| 78100B | Spring (FOR ACCELERATOR LINK) |
| 78110 | Rod Assy, Accelerator Pedal |
| 78110A | Spring (FOR ACCELERATOR PEDAL ROD) |
| 78110C | Bush (FOR ACCELERATOR PEDAL ROD) |
| 78111 | Pedal, Accelerator |
| 78111A | Spring (FOR ACCELERATOR PEDAL) |
| 78111C | Pin (FOR ACCELERATOR PEDAL) |
| 78113A | Cover, Auto Drive Accelerator Link |
| 78150B | Cable Assy, Accelerator Auto Drive |
| 78180 | Wire Assy, Accelerator |
| 78186 | Support, Accelerator Control Cable, NO.1 |
| 78189A | Support, Accelerator Control Cable, NO.2 |
| 78193A | Support, Accelerator Control Cable, NO.3 |
| 78195 | Bracket, Accelerator Link |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
