Toyota Camry

1986-08 → 1988-08 · chassis SV2#,VZV21 · catalogue 281430 · Europe

Discontinued model Data version 1989-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Combination Lamp

9 part groups · 2 illustrations

Illustrations

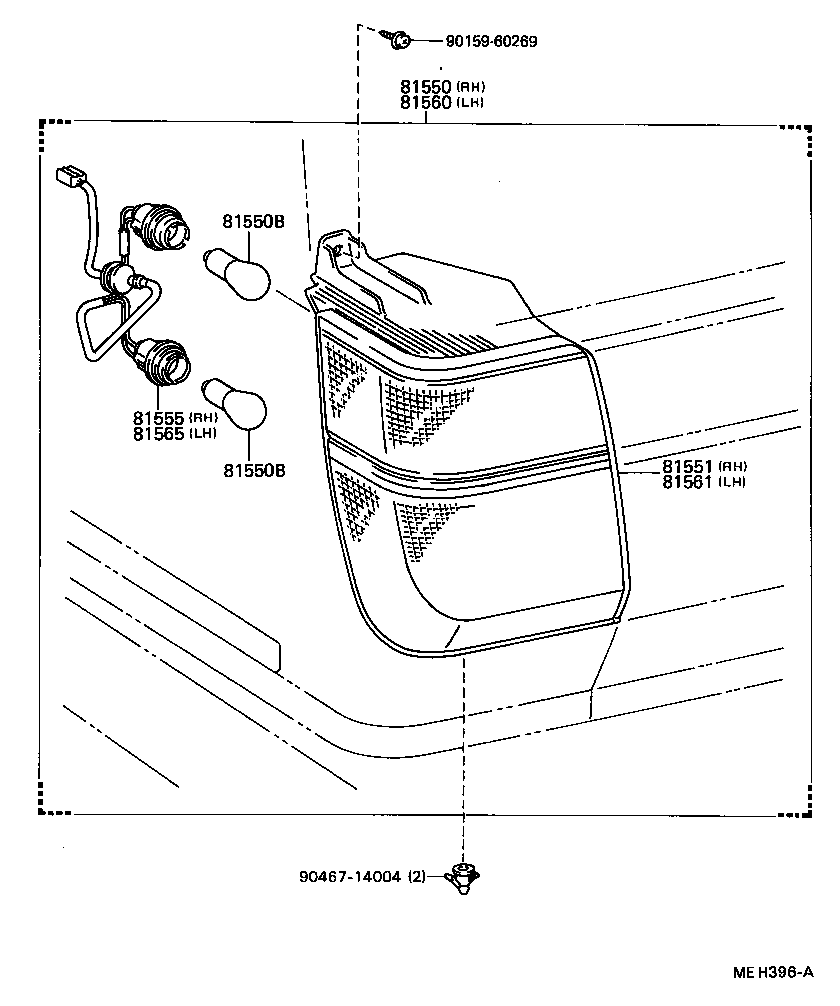

Figure MEH395A MEH395A 1986-08 → — Figure MEH396A MEH396A 1986-08 → —

Part groups

PNCDescription
81550 Lamp Assy, Rear Combination, RH
81550B Bulb(FOR REAR COMBINATION LAMP)
81551 Lens, Rear Combination Lamp, RH
81554 Gasket, Rear Combination Lamp Body, RH
81555 Socket & Wire Sub-assy, Rear Combination Lamp, RH
81560 Lamp Assy, Rear Combination, LH
81561 Lens, Rear Combination Lamp, LH
81564 Gasket, Rear Combination Lamp Body, LH
81565 Socket & Wire Sub-assy, Rear Combination Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
