Toyota Camry

1986-08 → 1988-08 · chassis SV2#,VZV21 · catalogue 281430 · Europe

Discontinued model Data version 1989-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

37 part groups · 7 illustrations

Illustrations

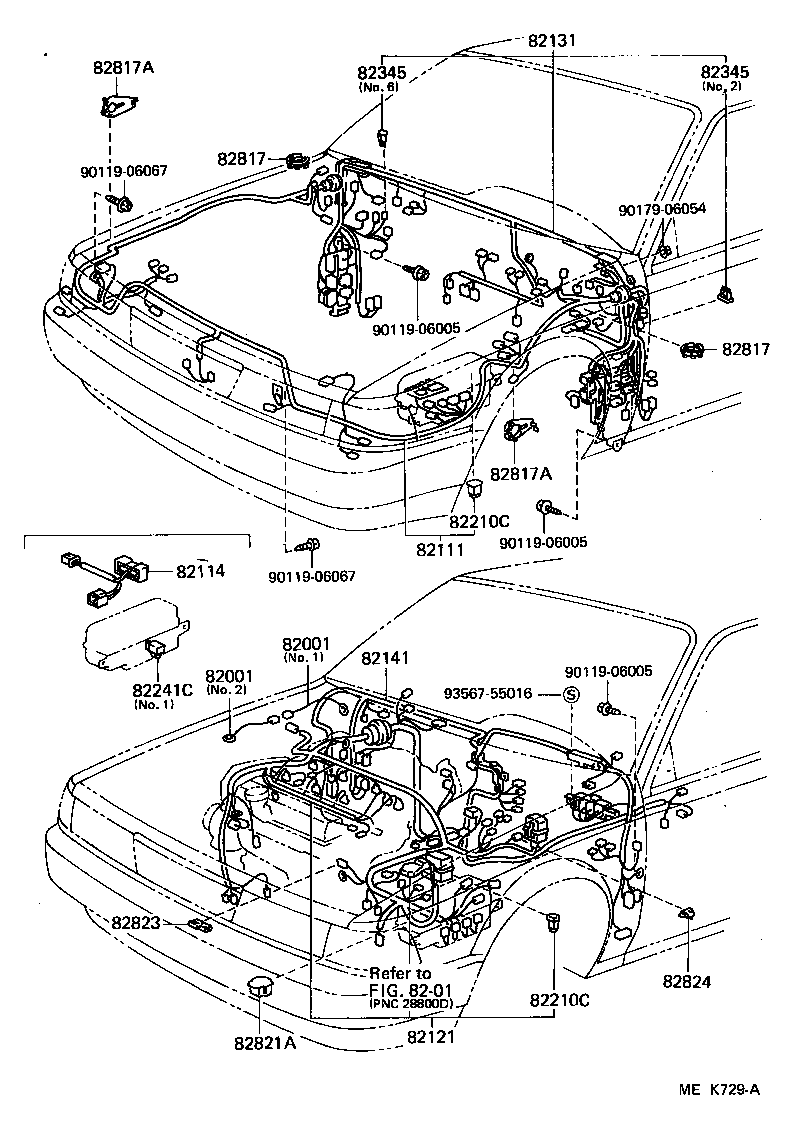

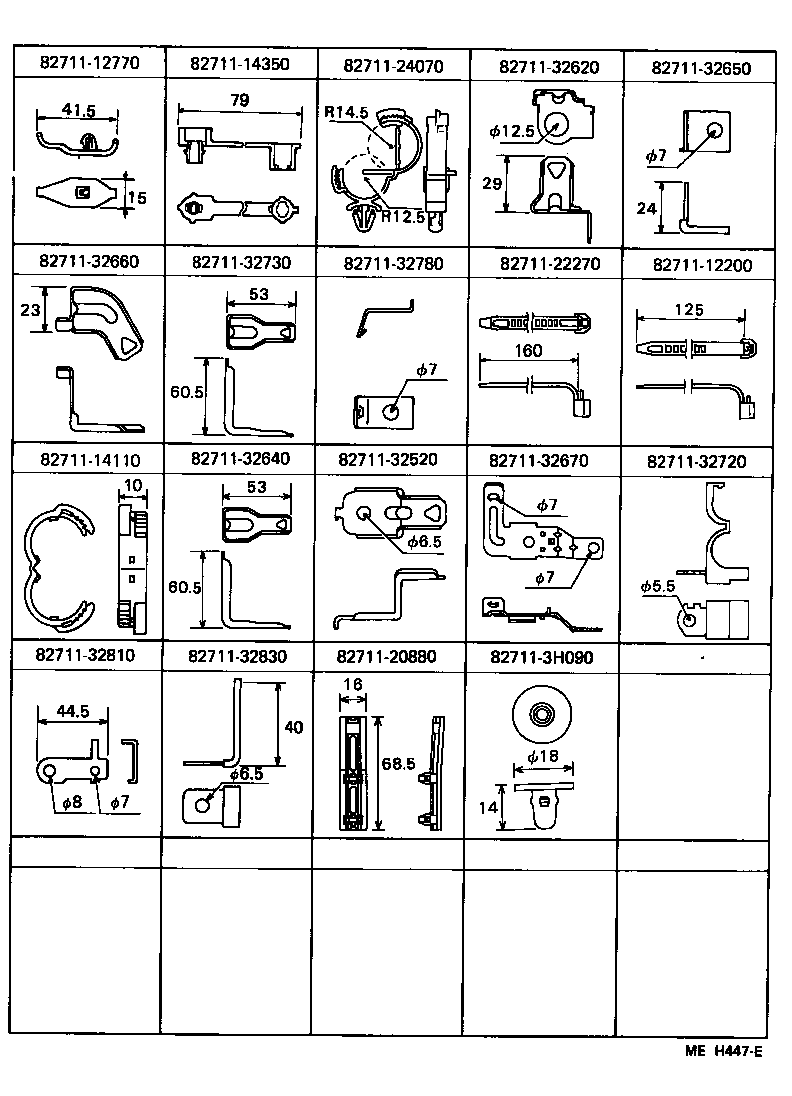

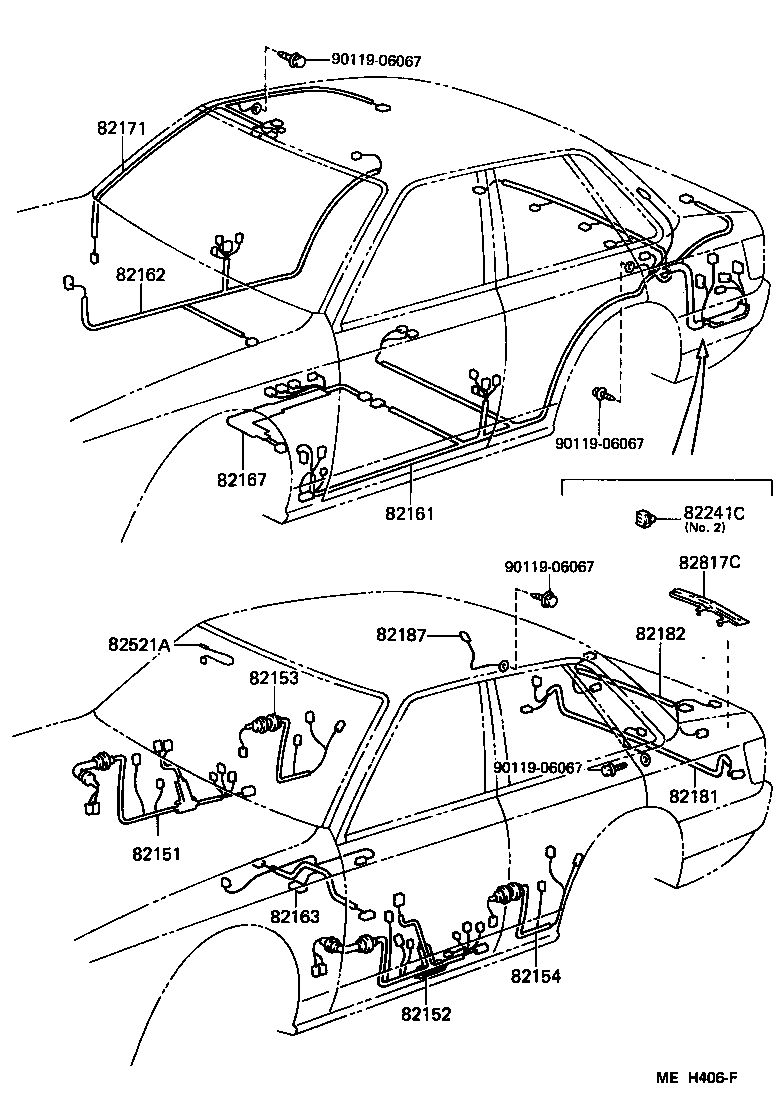

Figure MEH405E MEH405E 1986-08 → — Figure MEK729A MEK729A 1988-02 → — Figure MEH406F MEH406F 1986-08 → — Figure MEH407B MEH407B 1986-08 → — Figure MEH447E MEH447E 1986-08 → — Figure MEH408A MEH408A 1986-08 → — Figure MEK502 MEK502 1986-08 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82111 Wire, Engine Room Main
82114 Wire, Engine Room, NO.4
82121 Wire, Engine
82131 Wire, Cowl
82141 Wire, Instrument Panel
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82162 Wire, Floor, NO.2
82163 Wire, Floor, NO.3
82167 Wire, Seat, NO.1
82171 Wire, Roof, NO.1
82181 Wire, Luggage Room, NO.1
82182 Wire, Luggage Room, NO.2
82183 Wire, Luggage Room, NO.3
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82187 Wire, Rear Window, NO.2
82210C Fusible Link
82241C Wire, Relay
82345 Diode
82521A Wire, Vanity Lamp
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82821A Cover, Connector
82823 Cap, Terminal, NO.1
82824 Connector, Wiring Harness
82981 Wire, Headlamp Repair
82982 Wire, Clearance Lamp Repair
82983 Wire, Front Turn Signal Lamp Repair
82984 Wire, Horn Repair
82991 Wire, Fusible Link Repair
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
