Toyota Camry
1986-08 → 1988-08 · chassis SV2#,VZV21 · catalogue 281430 · Europe
Discontinued model
Data version 1989-04

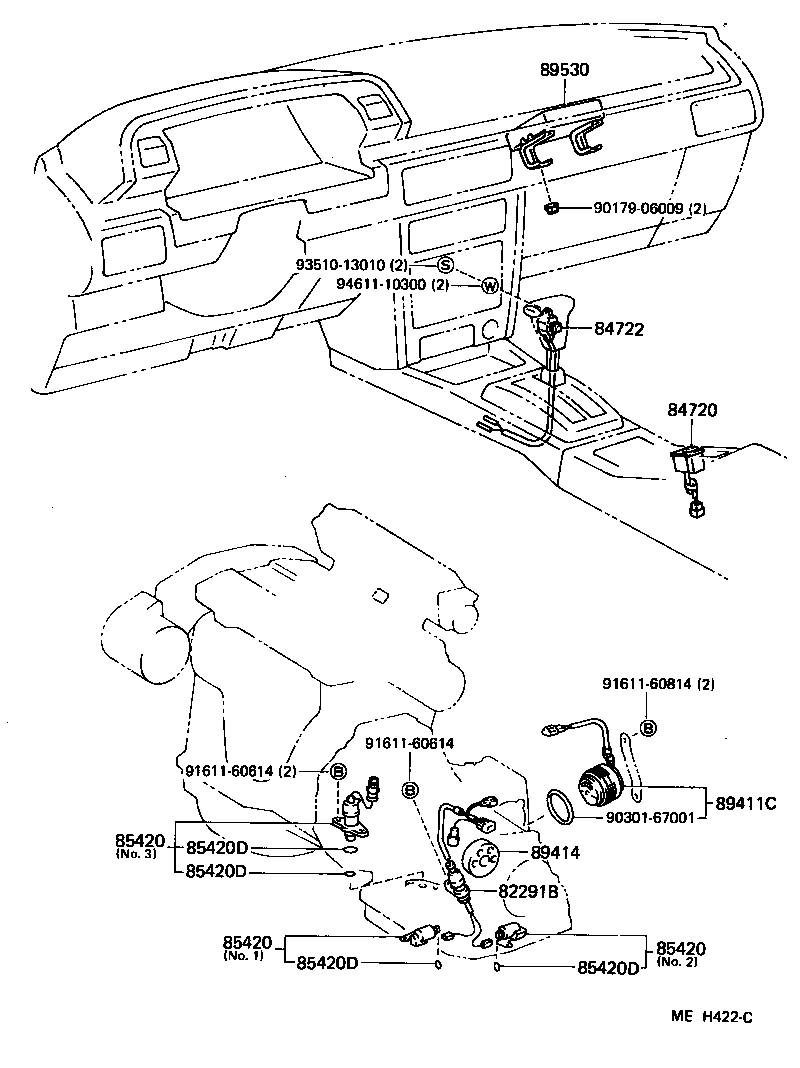

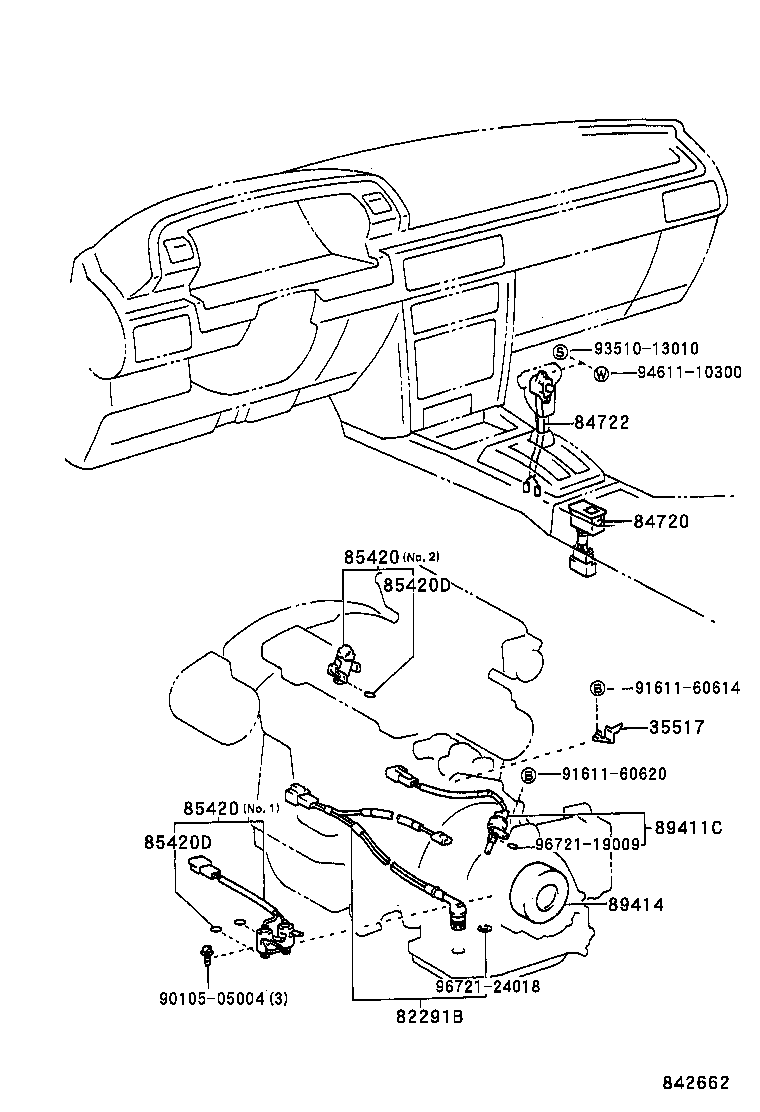

Overdrive & Electronic Controlled Transmission
12 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 35517 | Plate, Transmission Wire Lock |
| 82291B | Wire, TO Solenoid (FOR TRANSMISSION) |
| 84720 | Switch Assy, Pattern Select |
| 84722 | Switch, Transmission Control |
| 85420 | Solenoid Assy, Transmission |
| 85420B | Solenoid Assy, Transmission |
| 85420D | Ring, O (FOR TRANSMISSION SOLENOID) |
| 85425A | Ring, O (FOR OVERDRIVE SOLENOID) |
| 89411C | Sensor, Speed |
| 89414 | Rotor, Sensor |
| 89427A | Switch, Temperature |
| 89530 | Computer Assy, Transmission Control |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
