Toyota Camry (JPP)

1988-08 → 1991-06 · chassis SV2#,VZV21 · catalogue 281440 · Europe

Discontinued model Data version 1992-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

15 part groups · 2 illustrations

Illustrations

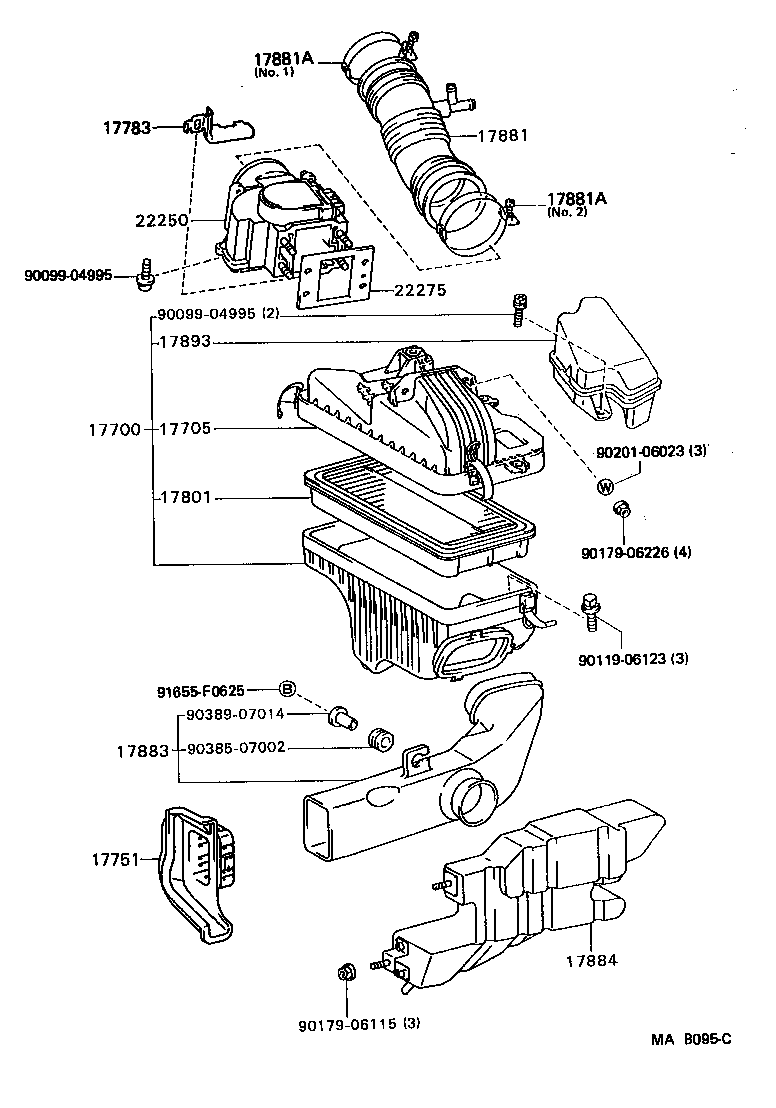

Figure MAA796B MAA796B 1988-08 → — Figure MAB095C MAB095C 1988-08 → —

Part groups

PNCDescription
17700 Cleaner Assy, Air
17705 Cap Sub-assy, Air Cleaner
17751 Inlet, Air Cleaner, NO.1
17783 Plate, Air Cleaner Baffle
17801 Element Sub-assy, Air Cleaner Filter
17880 Hose Assy, Air Cleaner
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882 Hose, Air Cleaner, NO.2
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17883 Hose, Air Cleaner, NO.3
17884 Hose, Air Cleaner, NO.4
17893 Resonator, Intake Air
22250 Meter Assy, Intake Air Flow
22275 Gasket, Air Flow Meter
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
