Toyota Camry (JPP)

1988-08 → 1991-06 · chassis SV2#,VZV21 · catalogue 281440 · Europe

Discontinued model Data version 1992-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transaxle OR Transmission Assy & Gasket Kit (ATM)

4 part groups · 2 illustrations

Illustrations

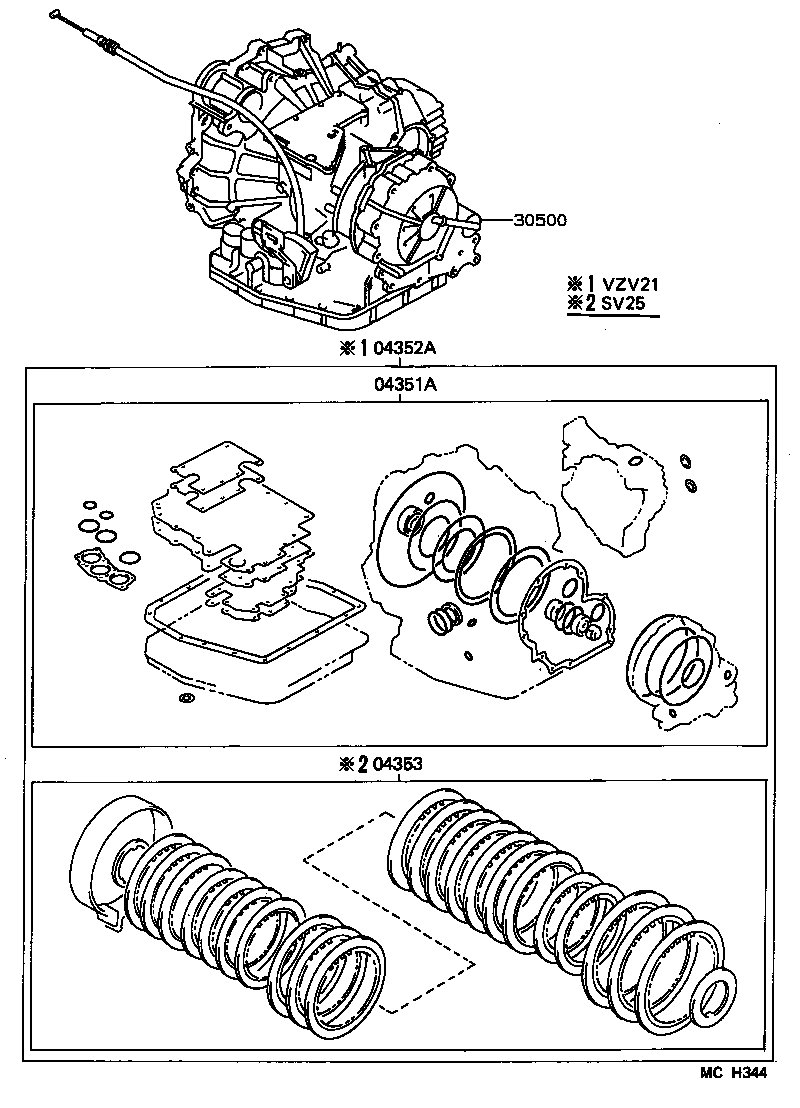

Figure MCD786A MCD786A 1988-08 → — Figure MCH344 MCH344 1988-08 → —

Part groups

PNCDescription
04351A Gasket Kit, Transaxle Overhaul(ATM)
04352A Kit, Transaxle Overhaul(ATM)
04353 Overhaul Kit, Clutch Disc Group(ATM)
30500 Transaxle Assy, Automatic
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
