Toyota Camry (JPP)
1988-08 → 1991-06 · chassis SV2#,VZV21 · catalogue 281440 · Europe
Discontinued model
Data version 1992-05
Front Axle Housing & Differential
95 part groups · 12 illustrations

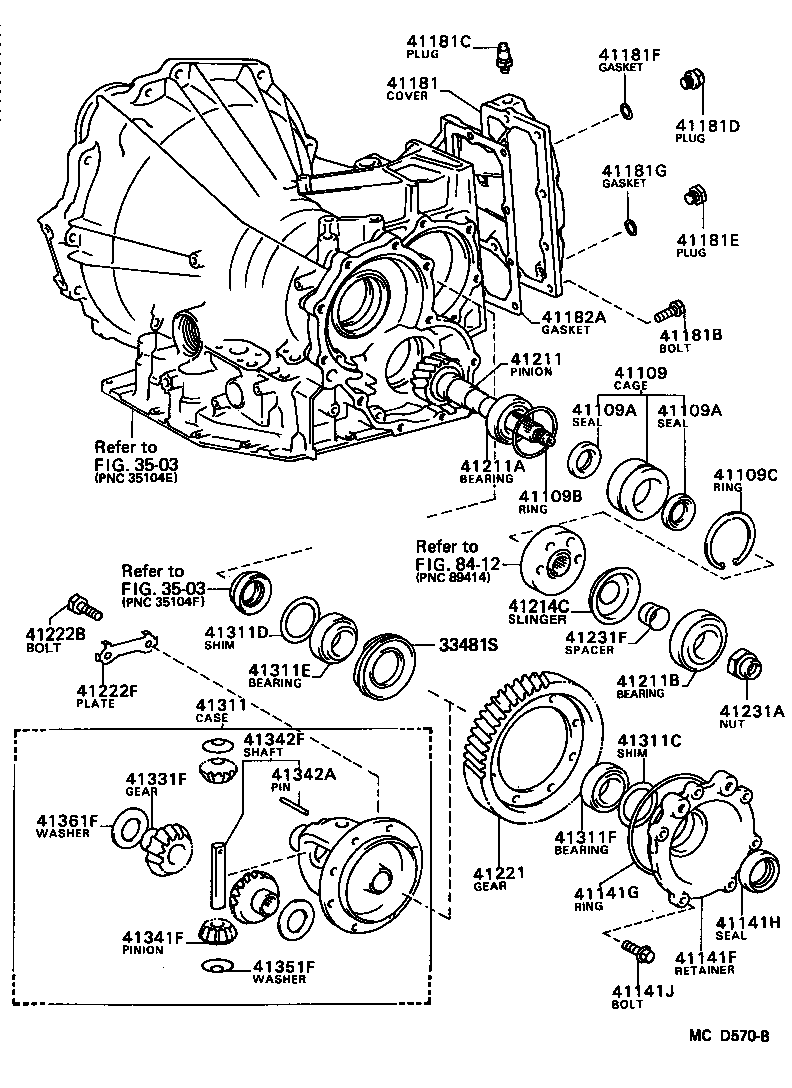

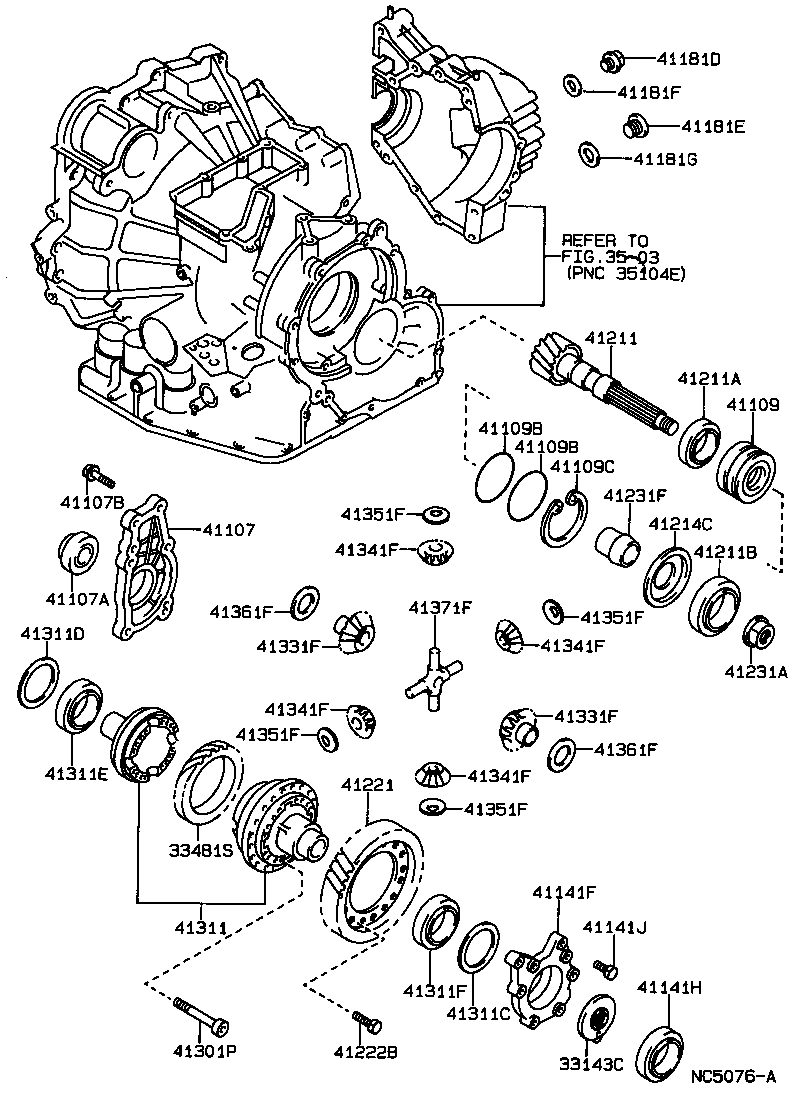

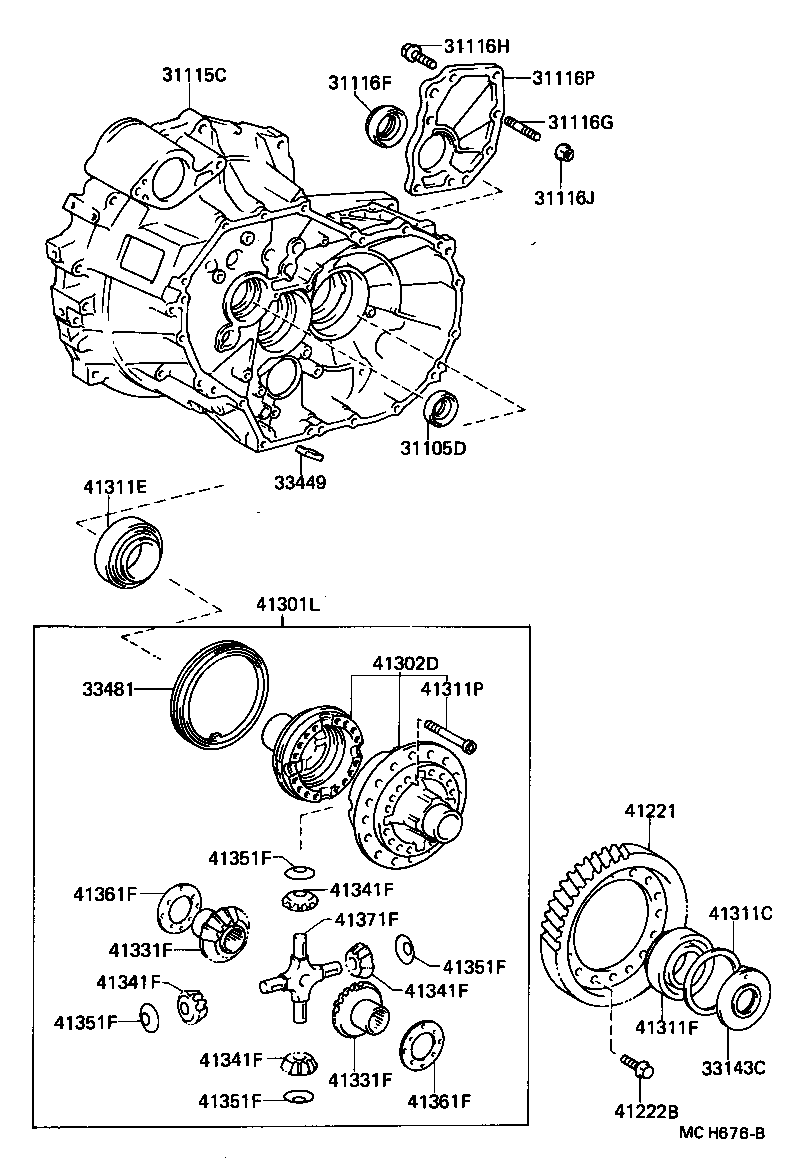

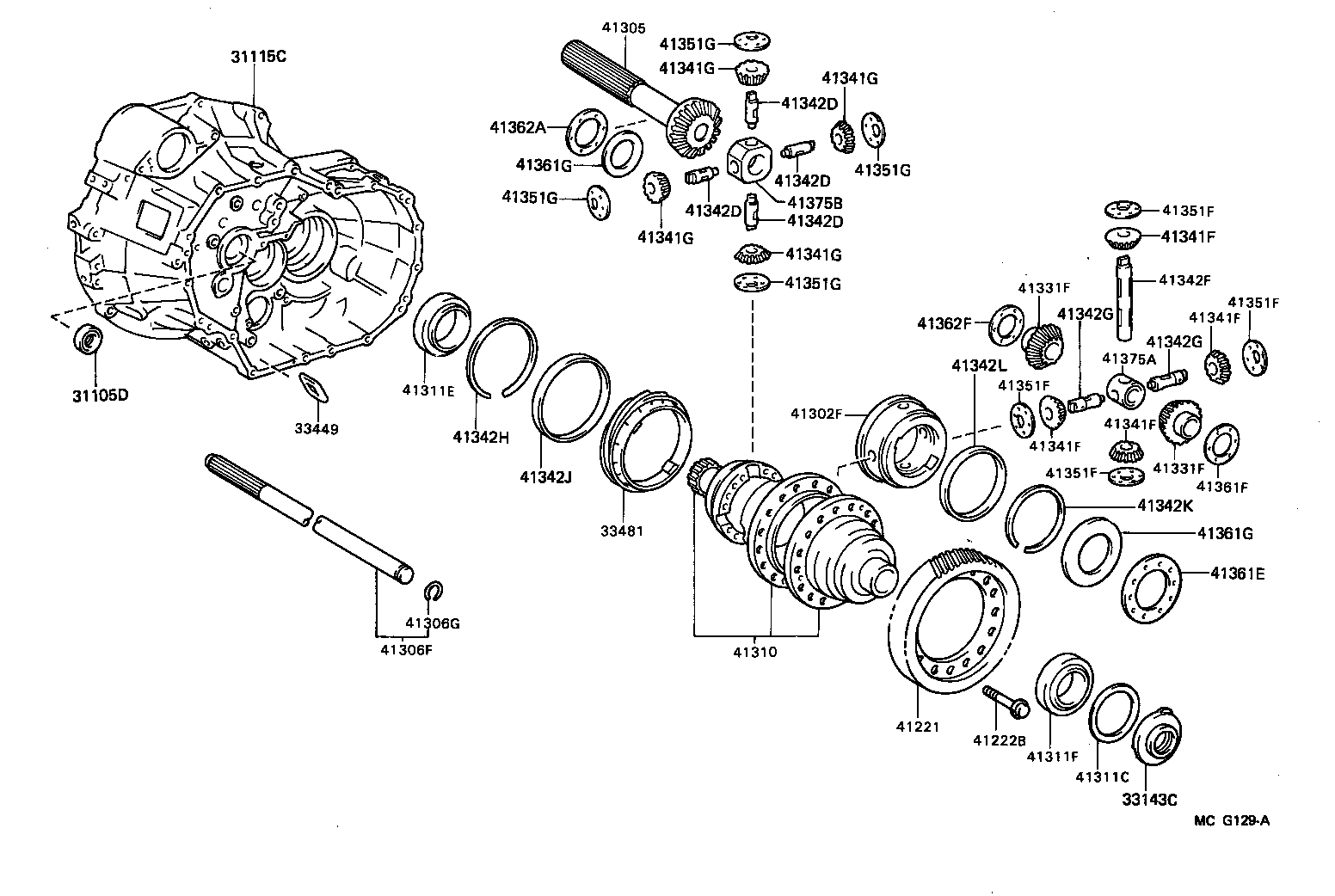

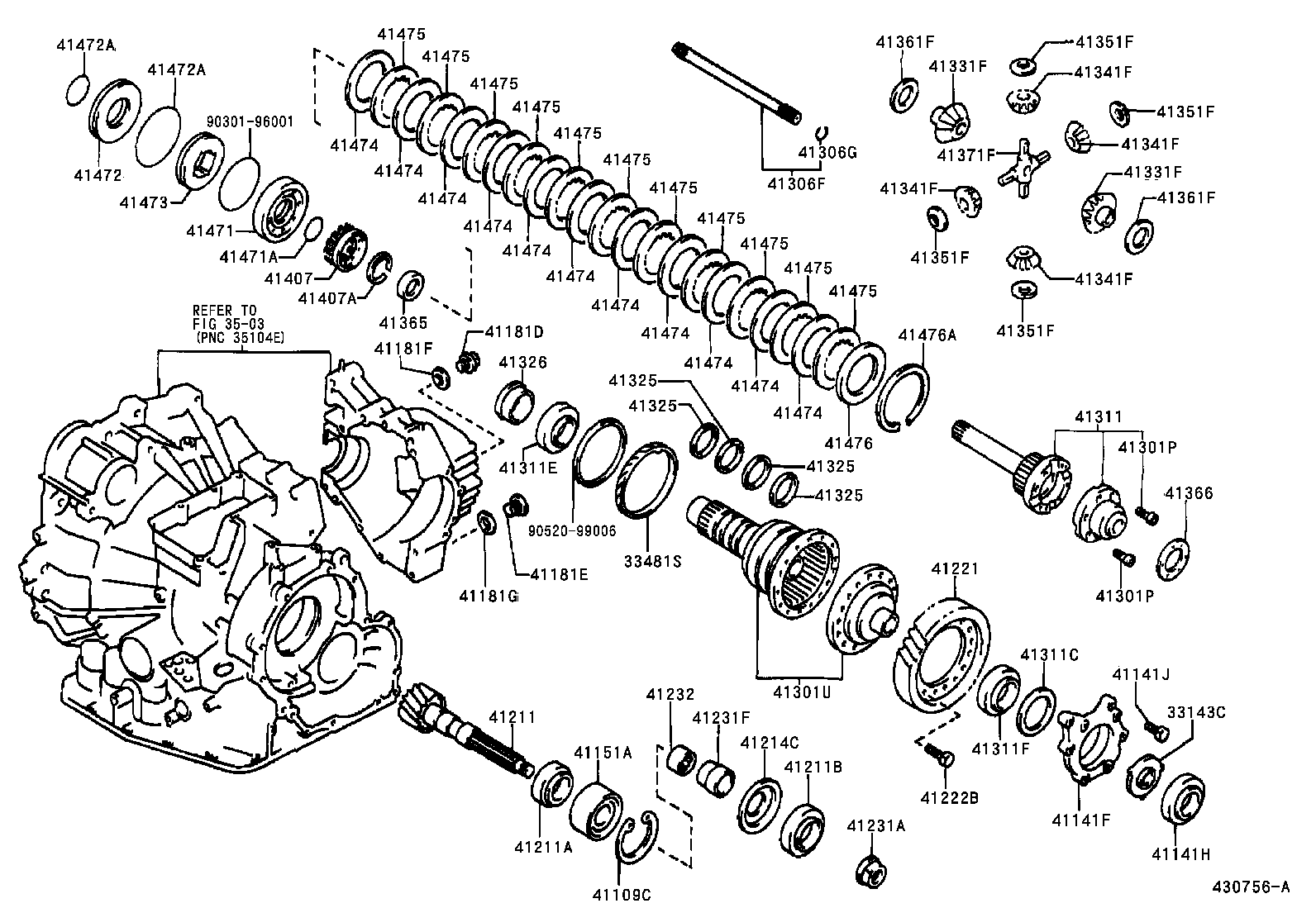

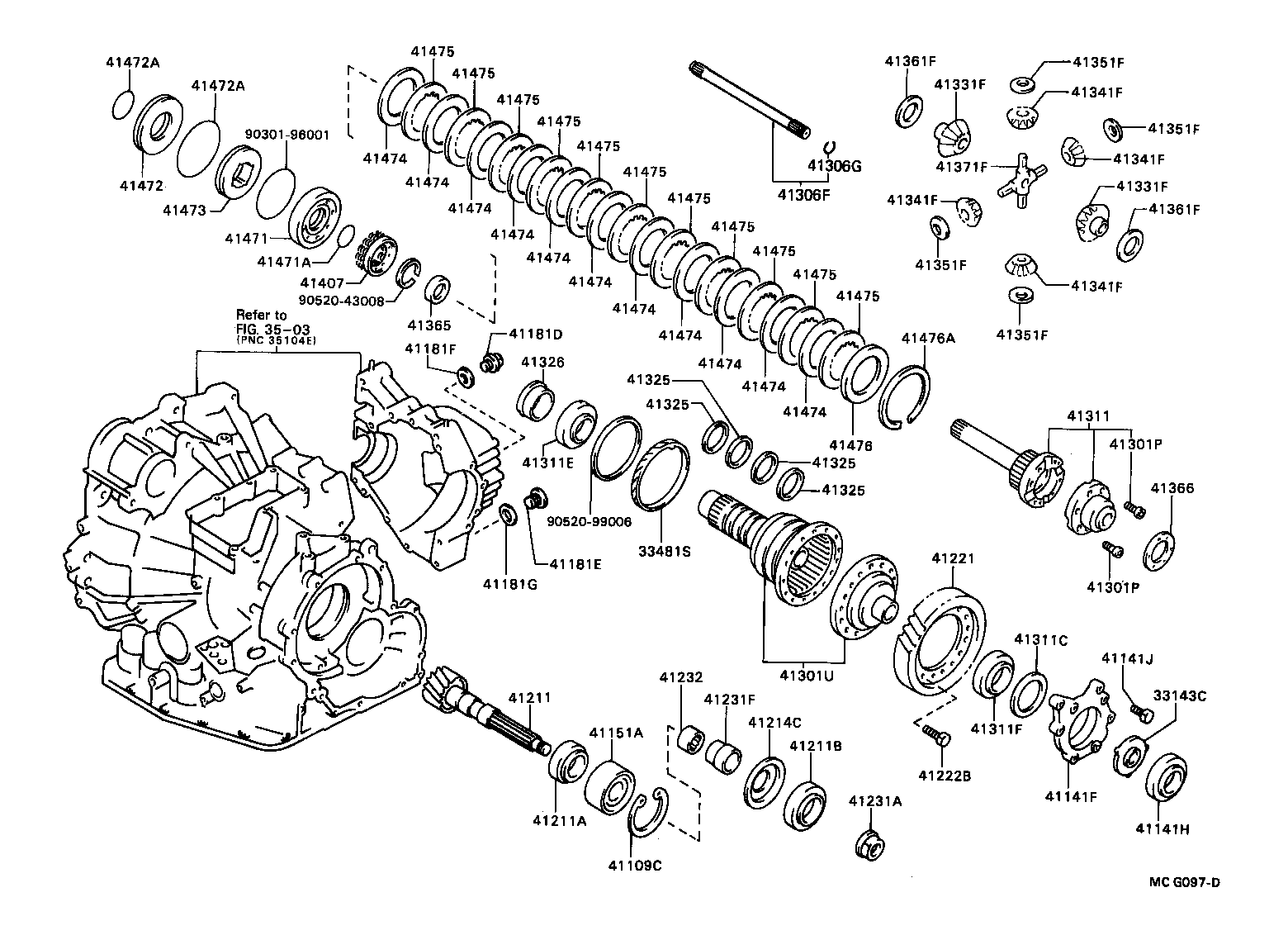

Illustrations
Part groups
| PNC | Description |
|---|---|
| 31105 | Case Sub-assy, Transaxle(MTM) |
| 31105D | Seal, Oil, NO.1(FOR FRONT TRANSAXLE CASE) |
| 31105F | Plug(FOR TRANSAXLE CASE) |
| 31105H | Seal, Oil, NO.2(FOR TRANSAXLE CASE) |
| 31115C | Case, Front Transaxle(MTM) |
| 31116F | Seal, Oil(FOR FRONT TRANSAXLE CASE COVER) |
| 31116G | Bolt, Stud(FOR FRONT TRANSAXLE CASE COVER) |
| 31116H | Bolt(FOR FRONT TRANSAXLE CASE COVER) |
| 31116J | Nut(FOR TRANSAXLE CASE COVER) |
| 31116P | Cover, Transaxle Case |
| 33143C | Baffle, Front Differential Oil |
| 33449 | Magnet, Transmission |
| 33481 | Gear, Speedometer Drive (MTM) |
| 33481S | Gear, Speedometer Drive (ATM) |
| 41107 | Retainer Sub-assy, Front Differential Oil Seal |
| 41107A | Seal, Oil (FOR FRONT DIFFERENTIAL OIL SEAL RETAINER) |
| 41107B | Bolt (FOR FRONT DIFFERENTIAL OIL SEAL RETAINER) |
| 41109 | Cage Sub-assy, Differential Drive Pinion Bearing |
| 41109A | Seal, Oil (FOR DIFFERENTIAL DRIVE PINION BEARING CAGE) |
| 41109B | Ring, O (FOR DIFFERENTIAL DRIVE PINION BEARING CAGE) |
| 41109C | Ring, Hole Snap (FOR DIFF. DRIVE PINION BEARING CAGE) |
| 41141F | Retainer, Front Differential Side Bearing |
| 41141G | Ring, O(FOR FRONT DIFFERENTIAL SIDE BEARING RETAINER) |
| 41141H | Seal, Oil(FOR DIFFERENTIAL SIDE BEARING RETAINER) |
| 41141J | Bolt(FOR FRONT DIFFERENTIAL SIDE BEARING RETAINER) |
| 41151A | Cage, Diff Drive Pinion Taper Bearing |
| 41181 | Cover, Front Differential Carrier |
| 41181B | Bolt (FOR FRONT DIFFERENTIAL CARRIER COVER SETTING) |
| 41181C | Plug, Breather (FOR FRONT DIFFERENTIAL CARRIER COVER) |
| 41181D | Plug (FOR FRONT DIFFERENTIAL FILLER) |
| 41181E | Plug (FOR FRONT DIFFERENTIAL DRAIN) |
| 41181F | Gasket (FOR FRONT DIFFERENTIAL FILLER PLUG) |
| 41181G | Gasket (FOR FRONT DIFFERENTIAL DRAIN PLUG) |
| 41182A | Gasket, Differential Carrier Cover |
| 41211 | Pinion, Differential Drive |
| 41211A | Bearing, Tapered Roller (FOR FRONT DRIVE PINION FRONT) |
| 41211B | Bearing, Tapered Roller (FOR FRONT DRIVE PINION REAR) |
| 41214C | Slinger, Front Differential Drive Pinion Oil |
| 41221 | Gear, Front Differential Ring |
| 41222B | Bolt (FOR FRONT DIFFERENTIAL RING GEAR SET) |
| 41222F | Plate, Fornt Differential Ring Gear Set Bolt Lock |
| 41231A | Nut, Drive Pinion Lock |
| 41231F | Spacer, Front Differential Drive Pinion Bearing |
| 41232 | Spacer, Drive Pinion Bearing, NO.2 |
| 41301L | Case Sub-assy, Front Differential, NO.1 |
| 41301P | Screw(FOR FRONT DIFFERENTIAL CASE) |
| 41301U | Case Sub-assy, Front Differential Ring Gear Mounting |
| 41302D | Case Sub-assy, Front Differential, NO.2 |
| 41302F | Case Sub-assy, Front Differential |
| 41305 | Gear Sub-assy, Differential Side |
| 41306F | Shaft Sub-assy, Differential Side Gear Inter |
| 41306G | Ring, Hole Snap (FOR DIFFERENTIAL SIDE GEAR INTER SHAFT) |
| 41310 | Case Assy, Differential |
| 41311 | Case, Front Differential |
| 41311C | Shim (FOR FRONT DIFFERENTIAL CASE REAR) |
| 41311D | Shim (FOR FRONT DIFFERENTIAL CASE FRONT) |
| 41311E | Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE FRONT) |
| 41311F | Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE REAR) |
| 41311P | Bolt (FOR FRONT DIFFERENTIAL CASE) |
| 41325 | Ring, Front Differential Ring Gear Mounting Case Oil Seal |
| 41326 | Sleeve, Ring Gear Mounting Case |
| 41331F | Gear, Front Differential Side |
| 41341F | Pinion, Front Differential |
| 41341G | Pinion, Center Differential |
| 41342A | Pin, Straight (FOR FRONT DIFFERENTIAL PINION SHAFT) |
| 41342D | Shaft, Center Differential Pinion |
| 41342F | Shaft, Front Differential Pinion, NO.1 |
| 41342G | Shaft, Front Differential Pinion, NO.2 |
| 41342H | Ring, Shaft Snap (FOR CENTER DIFFERENTIAL PINION SHAFT) |
| 41342J | Spacer (FOR CENTER DIFFERENTIAL PINION SHAFT) |
| 41342K | Ring, Shaft Snap (FOR FRONT DIFFERENTIAL PINION SHAFT) |
| 41342L | Spacer (FOR DIFFERENTIAL PINION SHAFT) |
| 41351F | Washer, Front Differential Pinion Thrust |
| 41351G | Washer, Center Differential Pinion Thrust |
| 41361E | Washer, Center Differential Side Gear Thrust, NO.1 |
| 41361F | Washer, Front Differential Side Gear Thrust, NO.1 |
| 41361G | Washer, Conical Spring(FOR CENTER DIFFERENTIAL SIDE GEAR) |
| 41362A | Washer, Center Differential Side Gear Thrust, NO.2 |
| 41362F | Washer, Front Differential Side Gear Thrust, NO.2 |
| 41365 | Washer, Front Differential Side Trust, NO.1 |
| 41366 | Washer, Front Differential Side Trust, NO.2 |
| 41371F | Spider, Front Differential |
| 41375A | Holder, Front Differential Pinion Shaft |
| 41375B | Holder, Center Differential Pinion Shaft |
| 41407 | Spring Sub-assy, Differential Lock Piston Return |
| 41407A | Ring, Shaft Snap (FOR DIFF LOCK PISTON RETURN SPRING) |
| 41471 | Piston, Differential Lock Clutch, NO.1 |
| 41471A | Ring, O (FOR DIFFERENTIAL LOCK CLUTCH PISTON NO.1) |
| 41472 | Piston, Differential Lock Clutch, NO.2 |
| 41472A | Ring, O (FOR DIFFERENTIAL LOCK CLUTCH PISTON NO.2) |
| 41473 | Sleeve, Differential Lock Clutch Piston Reaction |
| 41474 | Plate, Differential Lock Clutch |
| 41475 | Disc, Differential Lock Clutch |
| 41476 | Flange, Differential Lock Clutch |
| 41476A | Ring, Hole Snap (FOR DIFFERENTIAL LOCK CLUTCH FLANGE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
