Toyota Camry (JPP)
1988-08 → 1991-06 · chassis SV2#,VZV21 · catalogue 281440 · Europe
Discontinued model
Data version 1992-05
Brake Tube & Clamp
46 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|

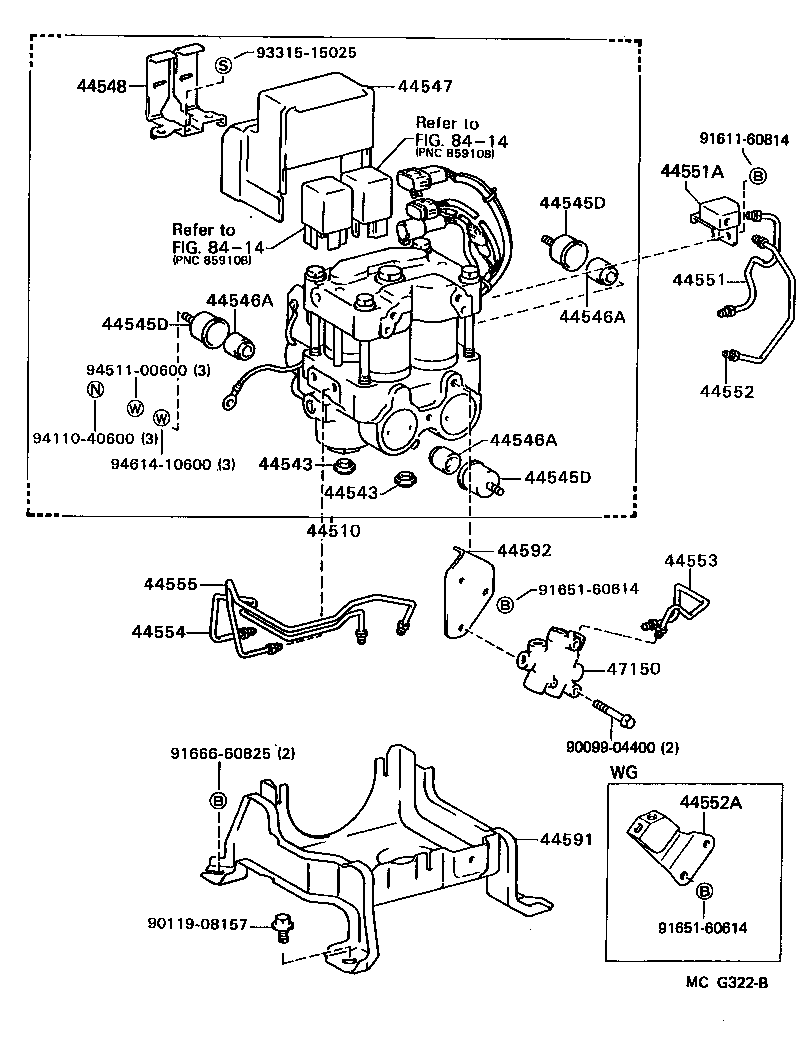

| 44510 | Actuator Assy, Brake |
| 44543 | Cap, Rubber |
| 44545D | Holder, Brake Actuator Bolt |
| 44546A | Cushion, Brake Actuator Bolt |
| 44547 | Case, Relay(FOR BRAKE ACTUATOR) |
| 44548 | Clamp(FOR BRAKE ACTUATOR) |
| 44551 | Tube, Brake Actuator, NO.1 |
| 44551A | Way, NO.1(FOR BRAKE ACTUATOR) |
| 44552 | Tube, Brake Actuator, NO.2 |
| 44552A | Way, NO.2(FOR BRAKE ACTUATOR) |
| 44553 | Tube, Brake Actuator, NO.3 |
| 44554 | Tube, Brake Actuator, NO.4 |
| 44555 | Tube, Brake Actuator, NO.5 |
| 44591 | Bracket, Brake Actuator, NO.1 |
| 44592 | Bracket, Brake Actuator, NO.2 |
| 47150 | Valve Assy, Proportioning |

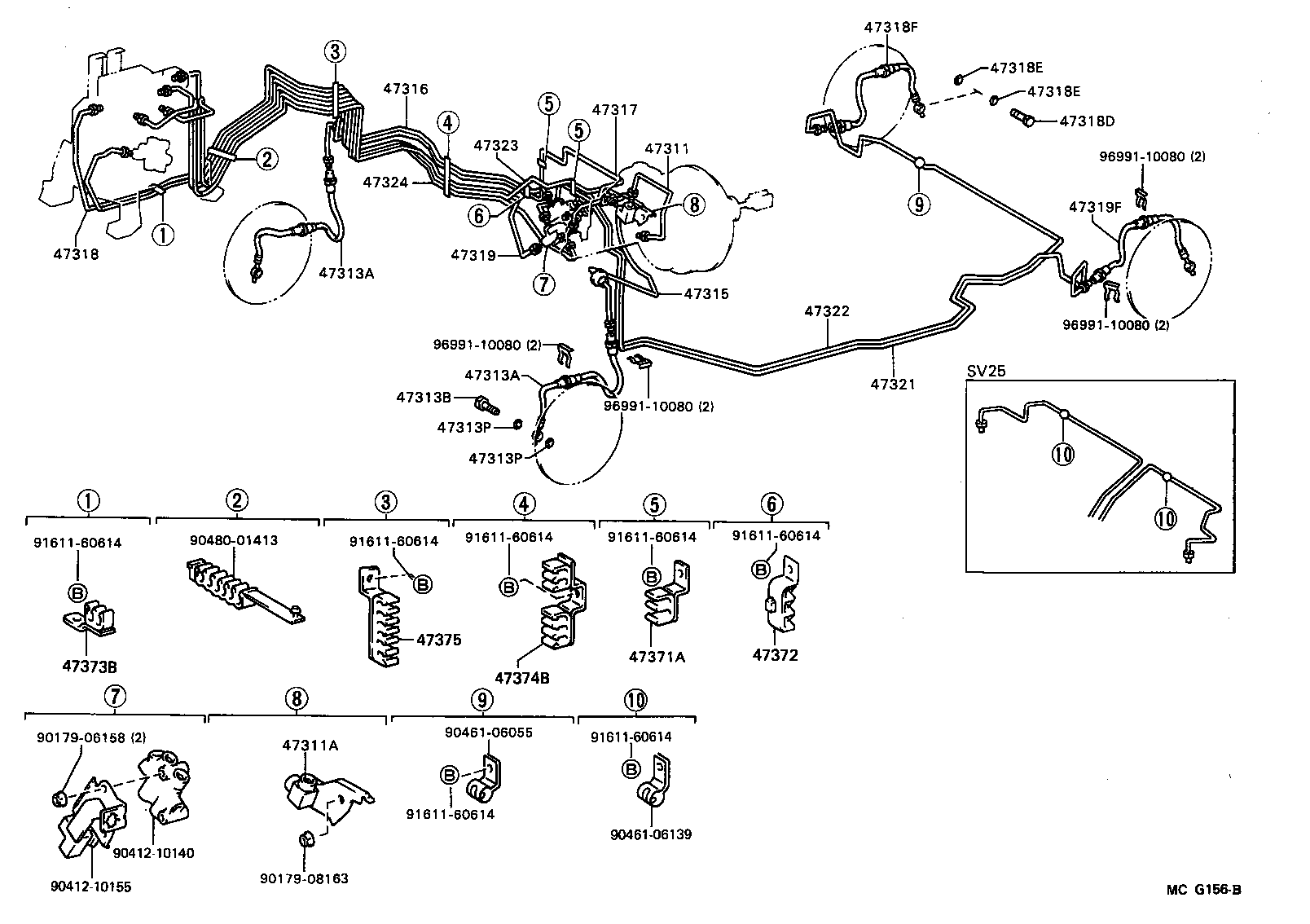

| 47311 | Tube, Front Brake, NO.1 |
| 47311A | Way(FOR FRONT BRAKE TUBE) |
| 47312 | Tube, Front Brake, NO.2 |
| 47313 | Tube, Front Brake, NO.3 |
| 47313A | Hose, Flexible, NO.1(FOR FRONT) |
| 47313B | Bolt, Union(FOR FRONT FLEXIBLE HOSE) |
| 47313P | Gasket(FOR FRONT FLEXIBLE HOSE) |
| 47314 | Tube, Front Brake, NO.4 |
| 47315 | Tube, Front Brake, NO.5 |
| 47316 | Tube, Front Brake, NO.6 |
| 47317 | Tube, Front Brake, NO.7 |
| 47318 | Tube, Front Brake, NO.8 |
| 47318D | Bolt, Union(FOR REAR FLEXIBLE HOSE) |
| 47318E | Gasket(FOR REAR FLEXIBLE HOSE) |
| 47318F | Hose, Flexible(FOR REAR RH) |
| 47319 | Tube, Front Brake, NO.9 |
| 47319F | Hose, Flexible(FOR REAR LH) |
| 47321 | Tube, Rear Brake, NO.1 |
| 47321D | Way, NO.1(FOR REAR BRAKE TUBE) |
| 47322 | Tube, Rear Brake, NO.2 |
| 47323 | Tube, Rear Brake, NO.3 |
| 47324 | Tube, Rear Brake, NO.4 |
| 47325 | Tube, Rear Brake, NO.5 |
| 47326 | Tube, Rear Brake, NO.6 |
| 47371A | Clamp, Brake Tube, NO.1 |
| 47372 | Clamp, Brake Tube, NO.2 |
| 47373B | Clamp, Brake Tube, NO.3 |
| 47374B | Clamp, Brake Tube, NO.4 |
| 47375 | Clamp, Brake Tube, NO.5 |
| 47900 | Valve Assy, Load Sensing W/Spring |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
