Toyota Camry (JPP)

1988-08 → 1991-06 · chassis SV2#,VZV21 · catalogue 281440 · Europe

Discontinued model Data version 1992-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

12 part groups · 2 illustrations

Illustrations

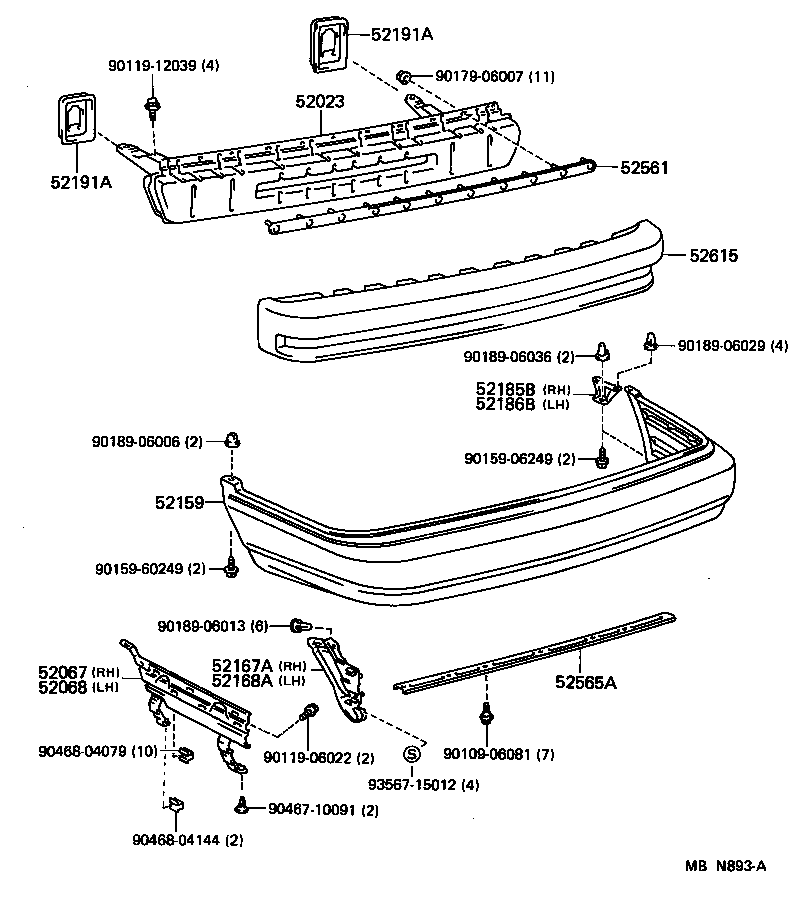

Figure MBN891A MBN891A 1988-08 → — Figure MBN893A MBN893A 1988-08 → —

Part groups

PNCDescription
52023 Reinforcement Sub-assy, Rear Bumper
52067 Support Sub-assy, Rear Bumper Side, RH
52068 Support Sub-assy, Rear Bumper Side, LH
52159 Cover, Rear Bumper
52167A Support, Rear Bumper Side, NO.4 RH
52168A Support, Rear Bumper Side, NO.4 LH
52185B Bracket, Rear Bumper Side Mounting, RH
52186B Bracket, Rear Bumper Side Mounting, LH
52191A Seal, Rear Bumper Arm
52561 Retainer, Rear Bumper, Upper Center
52565A Retainer, Rear Bumper, Lower
52615 Absorber, Rear Bumper Energy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
