Toyota Camry (JPP)
1988-08 → 1991-06 · chassis SV2#,VZV21 · catalogue 281440 · Europe
Discontinued model
Data version 1992-05

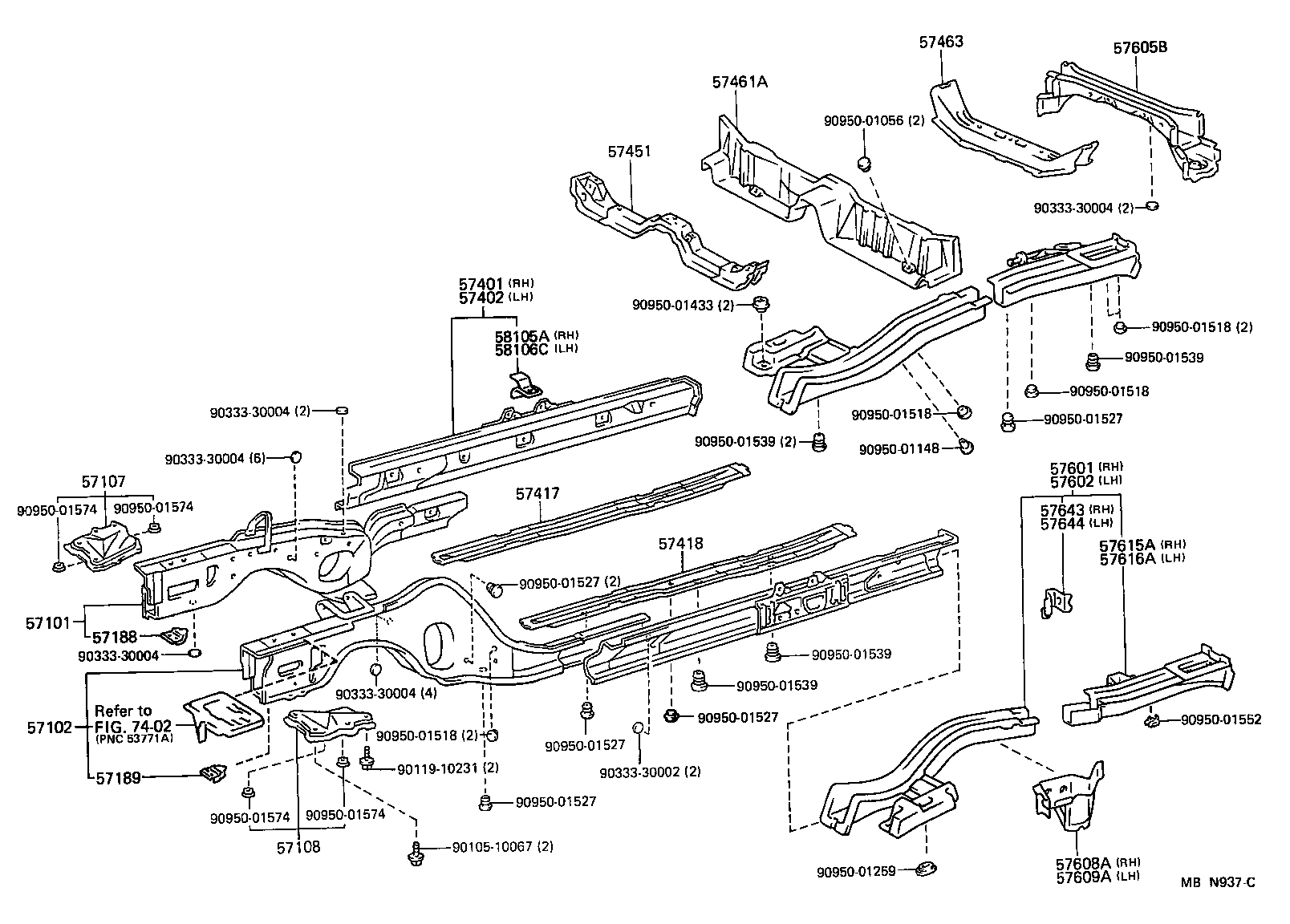

Floor Side Member
25 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 57101 | Member Sub-assy, Front Side, RH |
| 57102 | Member Sub-assy, Front Side, LH |
| 57107 | Bracket Sub-assy, Strut Bar, RH |
| 57108 | Bracket Sub-assy, Strut Bar, LH |
| 57188 | Reinforcement, Front Side Member Extension, RH |
| 57189 | Reinforcement, Front Side Member Extension, LH |
| 57401 | Member Sub-assy, Main Floor Side, RH |
| 57402 | Member Sub-assy, Main Floor Side, LH |
| 57417 | Reinforcement, Front Floor Under, RH |
| 57418 | Reinforcement, Front Floor Under, LH |
| 57451 | Member, Front Floor Cross |
| 57461A | Member, Center Floor Cross |
| 57463 | Member, Center Floor Cross, NO.3 |
| 57601 | Member Sub-assy, Rear Floor Side, RH |
| 57602 | Member Sub-assy, Rear Floor Side, LH |
| 57605B | Member Sub-assy, Rear Floor Cross, NO.1 |
| 57606C | Member Sub-assy, Rear Floor Cross, NO.2 |
| 57608A | Member Sub-assy, Rear Floor Cross, NO.4 |
| 57609A | Member Sub-assy, Rear Floor Cross, NO.5 |
| 57615A | Member, Rear Floor Side, Rear RH |
| 57616A | Member, Rear Floor Side, Rear LH |
| 57643 | Stiffener, Rear Floor Side Member, Center RH |
| 57644 | Stiffener, Rear Floor Side Member, Center LH |
| 58105A | Bracket Sub-assy, Front Seat Mounting, Outside, RH |
| 58106C | Bracket Sub-assy, Front Seat Mounting, Outside LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
