Toyota Camry (JPP)

1988-08 → 1991-06 · chassis SV2#,VZV21 · catalogue 281440 · Europe

Discontinued model Data version 1992-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Pan & Lower Back Panel

30 part groups · 5 illustrations

Illustrations

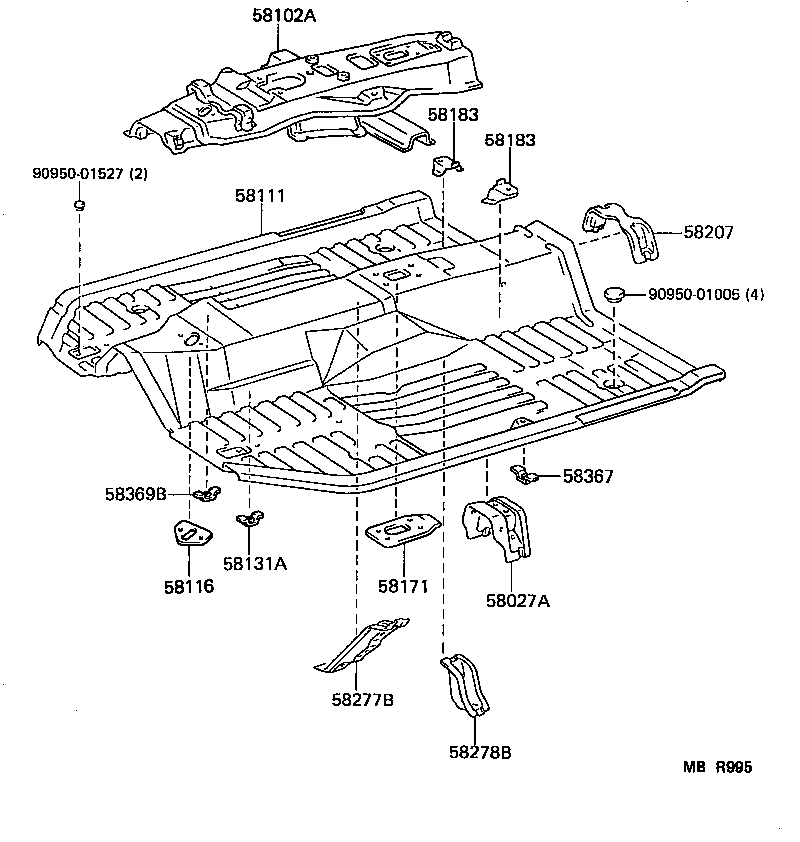

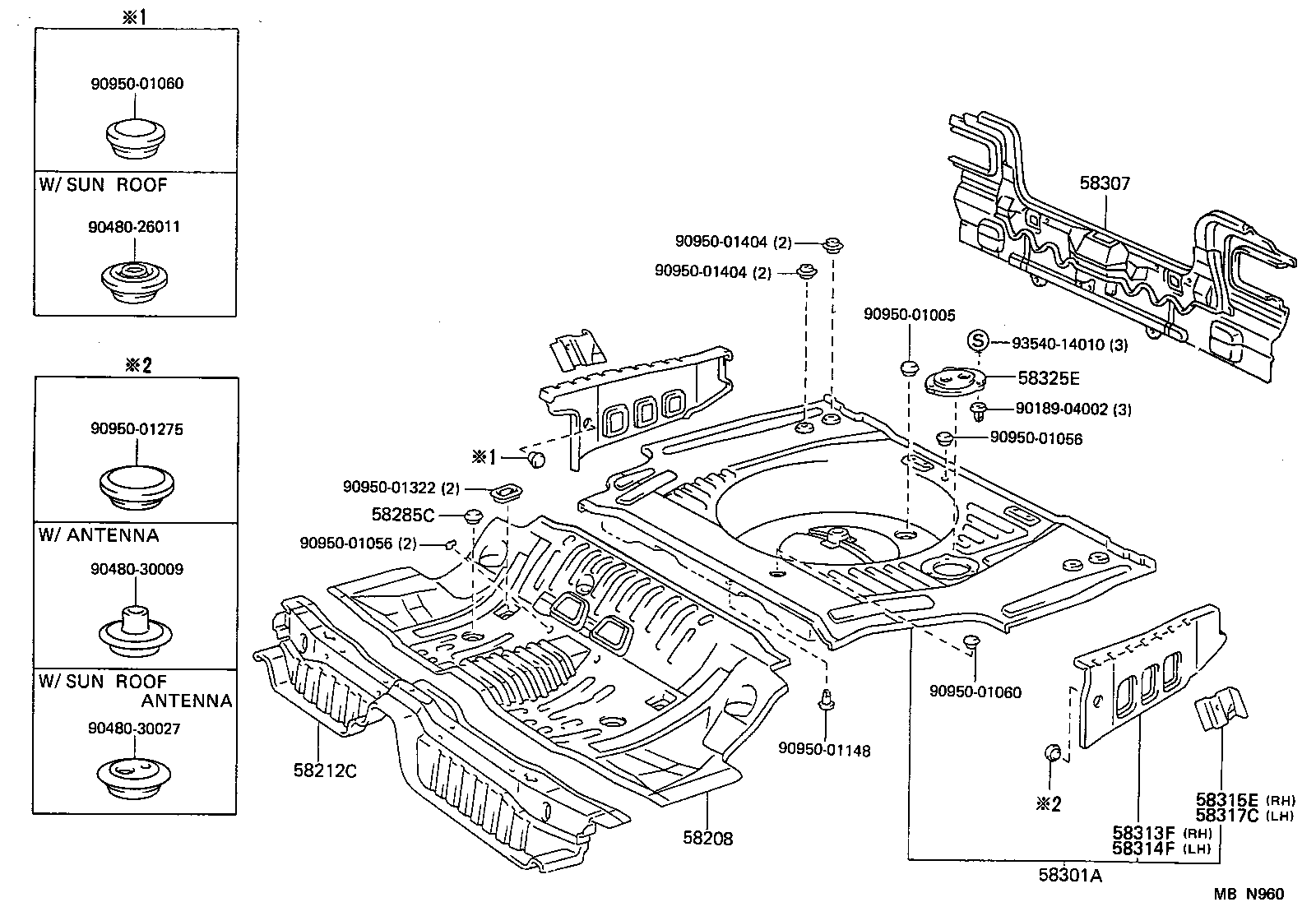

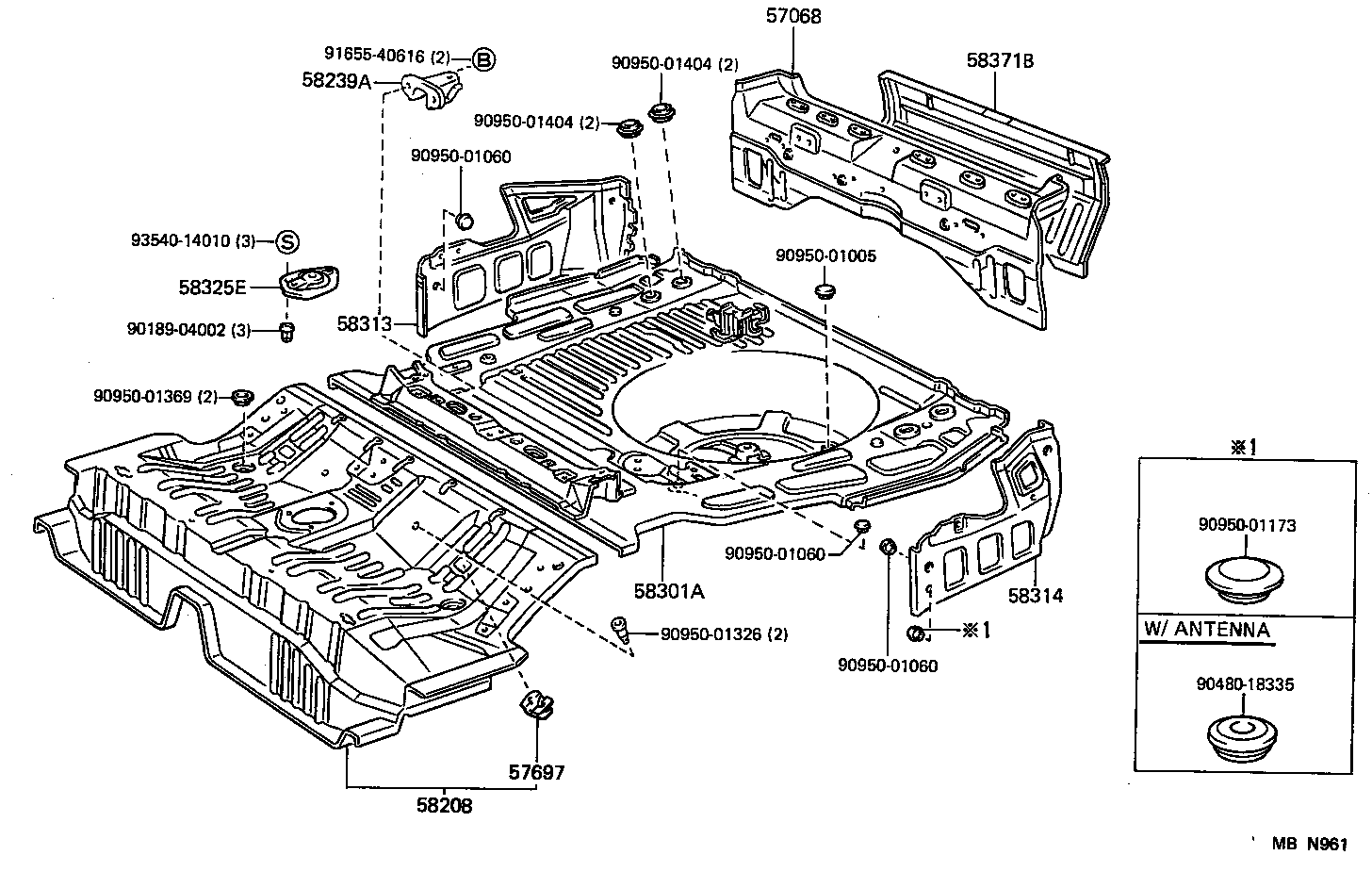

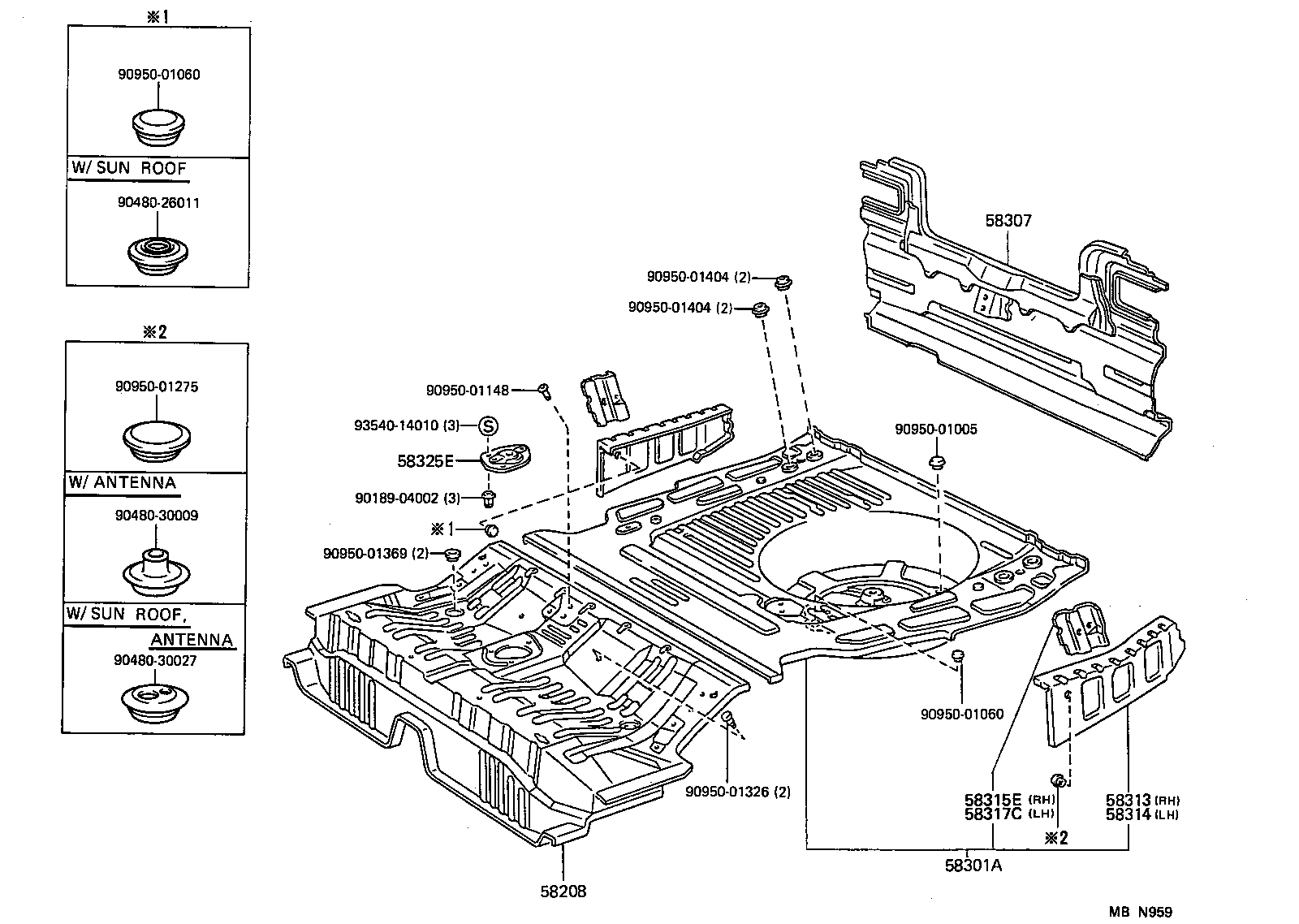

Figure MBN957 MBN957 1988-08 → — Figure MBR995 MBR995 1988-08 → — Figure MBN959 MBN959 1988-08 → — Figure MBN960 MBN960 1988-08 → — Figure MBN961 MBN961 1988-08 → —

Part groups

PNCDescription
57068 Member Sub-assy, Rear Floor Rear Cross, Inner
57206A Member Sub-assy, Front Floor Cross, NO.2
57697 Retainer, Rear Seat Cushion
58027A Reinforce Sub-assy, Seat Belt Anchor
58102A Reinforcement Sub-assy, Front Floor
58111 Pan, Front Floor
58116 Plate, Shift Cable Mounting
58131A Bracket, Front Floor Heat Insulator, NO.1
58171 Reinforcement, Parking Brake Base
58183 Bracket, Front Seat Mounting, Inner
58207 Bracket Sub-assy, Parking Brake Cable, NO.1
58208 Pan, Center Floor
58212C Pan, Center Floor, Front
58239A Plate, Belt Anchor Nut
58277B Reinforcement, Drive Shaft Center Support
58278B Reinforce, Drive Shaft Center Support, NO.2
58285C Cover, Rear Floor Hole
58301A Panel Sub-assy, Rear Floor
58307 Panel Sub-assy, Body Lower Back
58313 Panel, Rear Floor Side, RH
58313F Extension, Rear Floor Pan TO Quarter Panel, RH
58314 Panel, Rear Floor Side, LH
58314F Extension, Rear Floor Pan TO Quarter Panel, LH
58315E Extension Rear Floor Side Panel, Front RH
58317C Extension, Rear Floor Side Panel, Rear LH
58325E Cover, Rear Floor Service Hole
58367 Bracket, Fuel Tube Clamp
58369B Bracket, Fuel Tube, NO.3
58371B Panel, Body Lower Back, Outer
58396A Bracket, Wire Harness Clamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
