Toyota Camry (JPP)
1988-08 → 1991-06 · chassis SV2#,VZV21 · catalogue 281440 · Europe
Discontinued model
Data version 1992-05

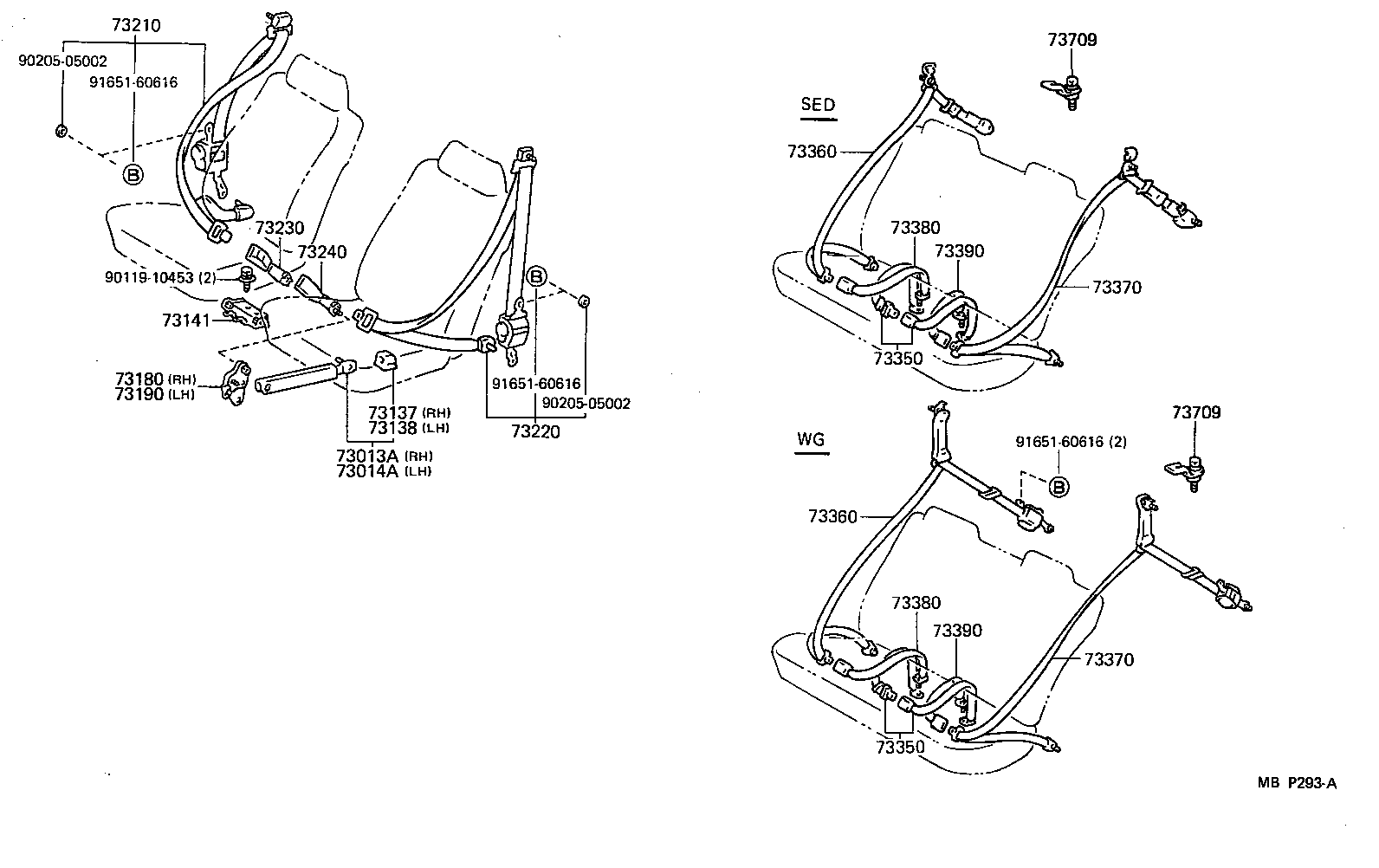

Seat Belt & Child Restraint Seat
26 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 61803A | Track Sub-assy, Belt Drive Tape, RH |
| 61804A | Track Sub-assy, Belt Drive Tape, LH |
| 61810 | Rail Assy, Shoulder Belt Guide, RH |
| 61820 | Rail Assy, Shoulder Belt Guide, LH |
| 73013A | Plate Sub-assy, Front Seat Belt Inner Anchor, RH |
| 73014A | Plate Sub-assy, Front Seat Belt Inner Anchor, LH |
| 73100B | Belt Assy, Front Seat Shoulder |
| 73108A | Base Sub-assy, Front Seat Belt Anchor |
| 73137 | Cap, Front Seat Belt Inner Anchor, RH |
| 73138 | Cap, Front Seat Belt Inner Anchor, LH |
| 73141 | Base, Front Seat Belt Anchor |
| 73151 | Knob, Seat Belt Lock Release Lever, RH |
| 73178A | Cap, Seat Belt Anchor Cover |
| 73180 | Bracket Assy, Seat Belt Inner Anchor, RH |
| 73181B | Guide, Front Seat Lap Belt, Outer |
| 73190 | Bracket Assy, Seat Belt Inner Anchor, LH |
| 73210 | Belt Assy, Front Seat Outer, RH |
| 73220 | Belt Assy, Front Seat Outer, LH |
| 73230 | Belt Assy, Front Seat Inner, RH |
| 73240 | Belt Assy, Front Seat Inner, LH |
| 73350 | Belt Assy, Rear Seat Lap Type, Center |
| 73360 | Belt Assy, Rear Seat 3 Point Type, Outer RH |
| 73370 | Belt Assy, Rear Seat 3 Point Type, Outer LH |
| 73380 | Belt Assy, Rear Seat 3 Point Type, Inner, RH |
| 73390 | Belt Assy, Rear Seat 3 Point Type, Inner, LH |
| 73709 | Bracket Sub-assy, Tether Anchor |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
