Toyota Camry (JPP)
1991-06 → 1996-08 · chassis SXV10,VCV10,MCV10 · catalogue 281450 · Europe
Discontinued model
Data version 1997-04

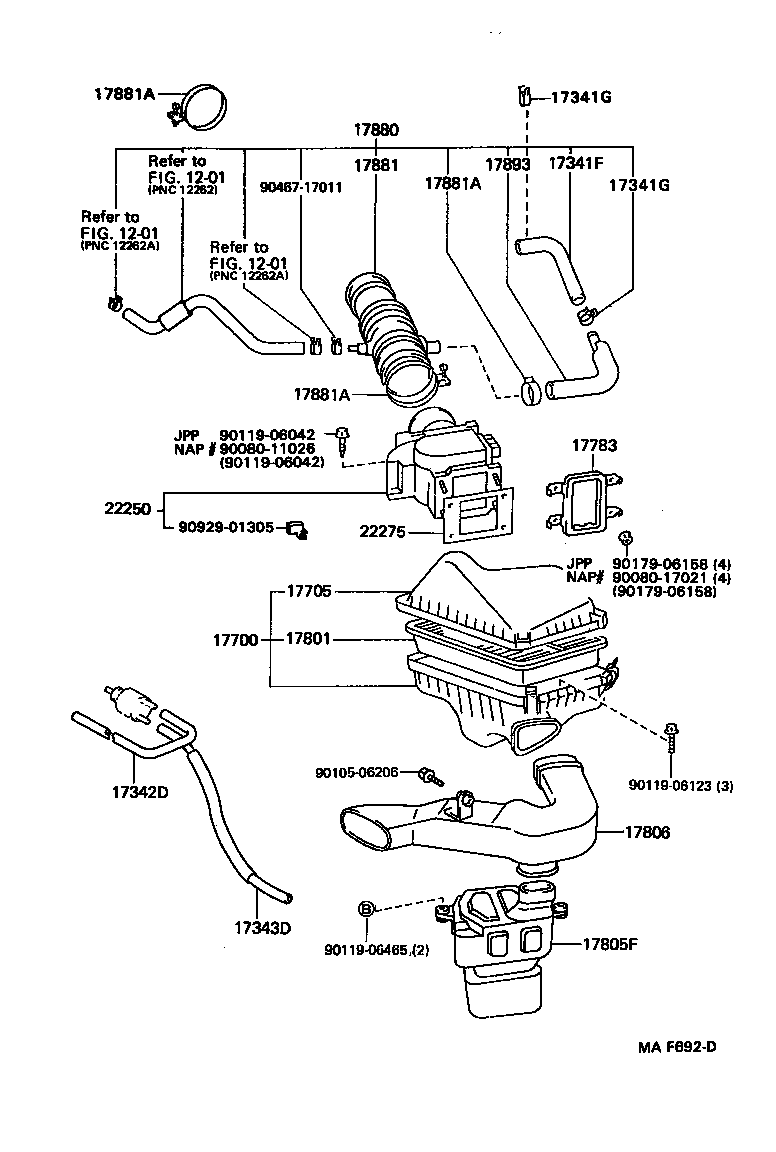

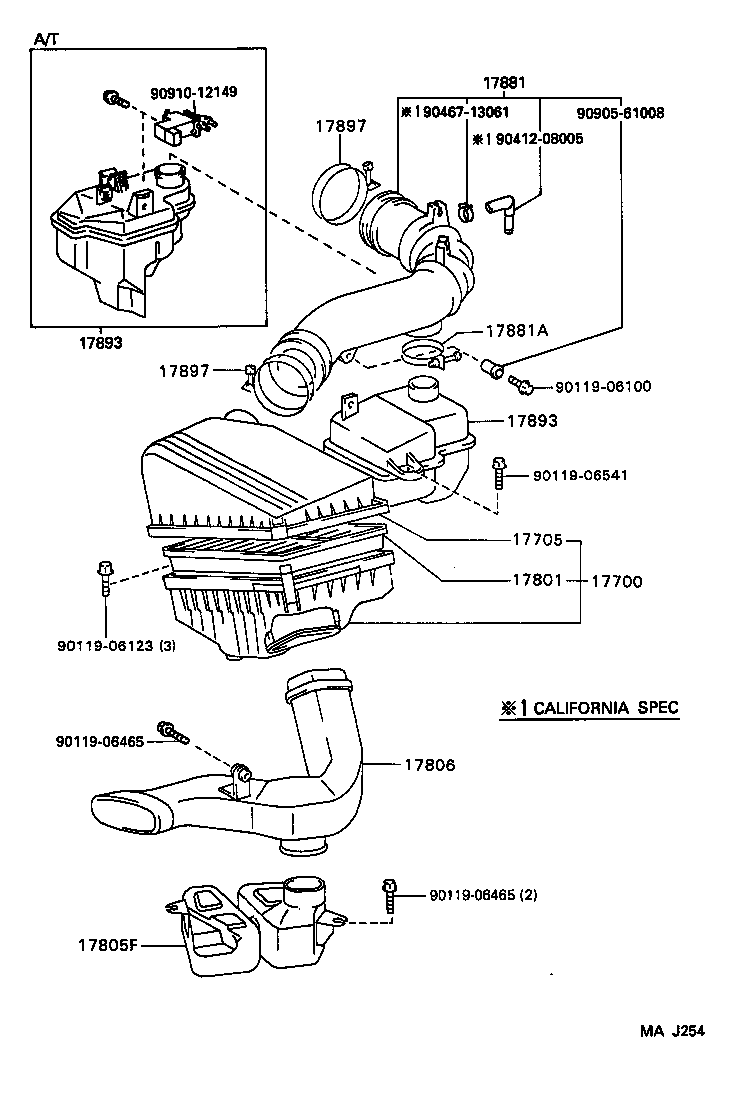

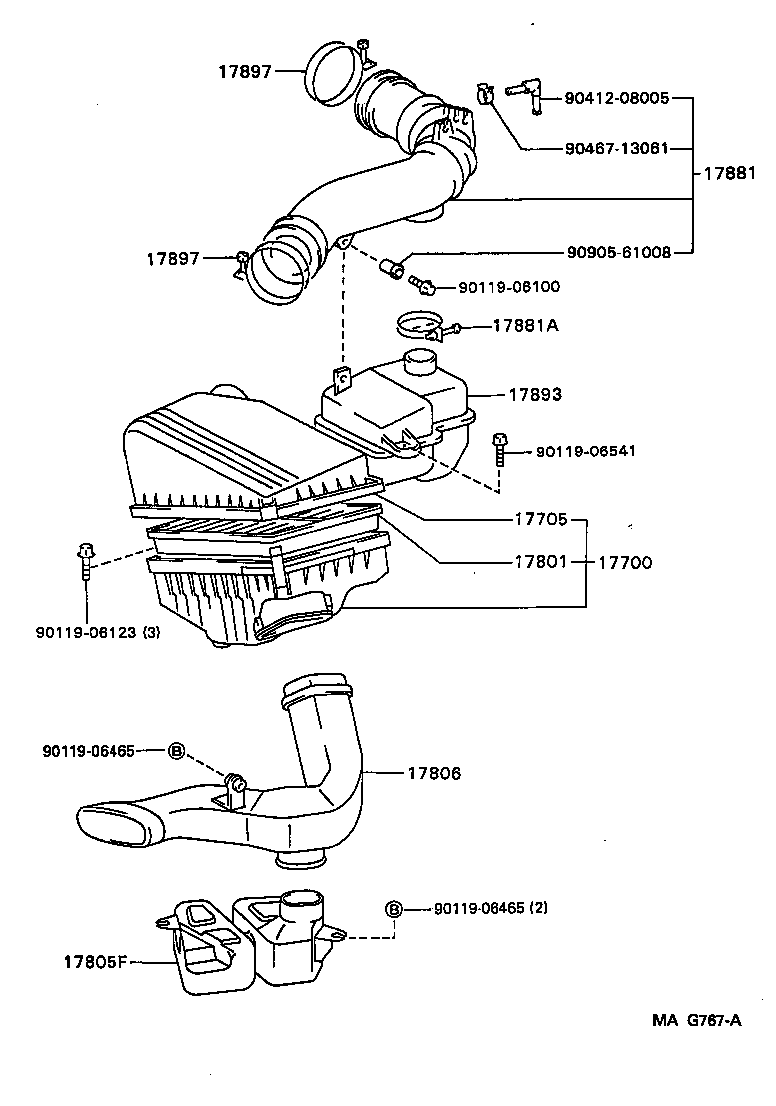

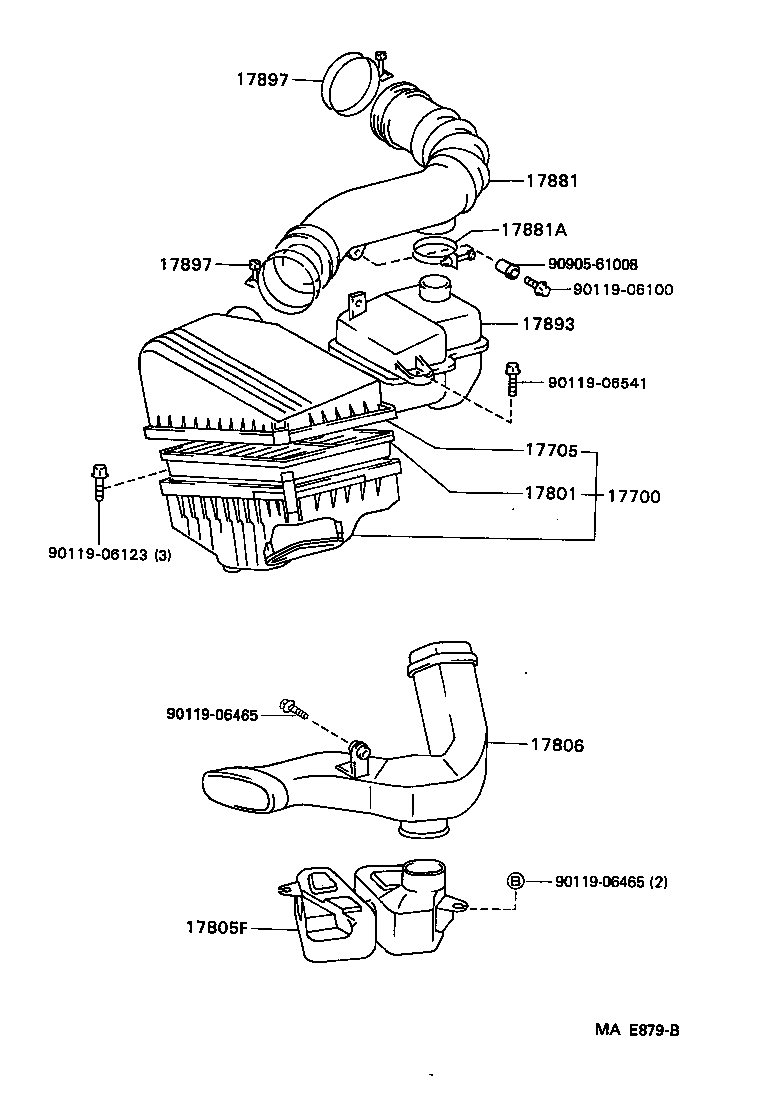

Air Cleaner
18 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 17341F | Hose, Air, NO.1 |
| 17341G | Clamp OR Clip(FOR AIR HOSE, NO.1) |
| 17342D | Hose, Air, NO.2 |
| 17343D | Hose, Air, NO.3 |
| 17700 | Cleaner Assy, Air |
| 17705 | Cap Sub-assy, Air Cleaner |
| 17783 | Plate, Air Cleaner Baffle |
| 17801 | Element Sub-assy, Air Cleaner Filter |
| 17805F | Resonator Sub-assy, Intake Air |
| 17806 | Pipe Sub-assy, Air Cleaner, NO.2 |
| 17880 | Hose Assy, Air Cleaner |
| 17881 | Hose, Air Cleaner, NO.1 |
| 17881A | Clamp(FOR AIR CLEANER HOSE, NO.1) |
| 17893 | Resonator, Intake Air |
| 17897 | Clamp, Hose(FOR AIR CLEANER) |
| 22020 | Meter Assy, Air Flow W/Air Cleaner |
| 22250 | Meter Assy, Intake Air Flow |
| 22275 | Gasket, Air Flow Meter |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
