Toyota Camry (JPP)

1991-06 → 1996-08 · chassis SXV10,VCV10,MCV10 · catalogue 281450 · Europe

Discontinued model Data version 1997-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

32 part groups · 7 illustrations

Illustrations

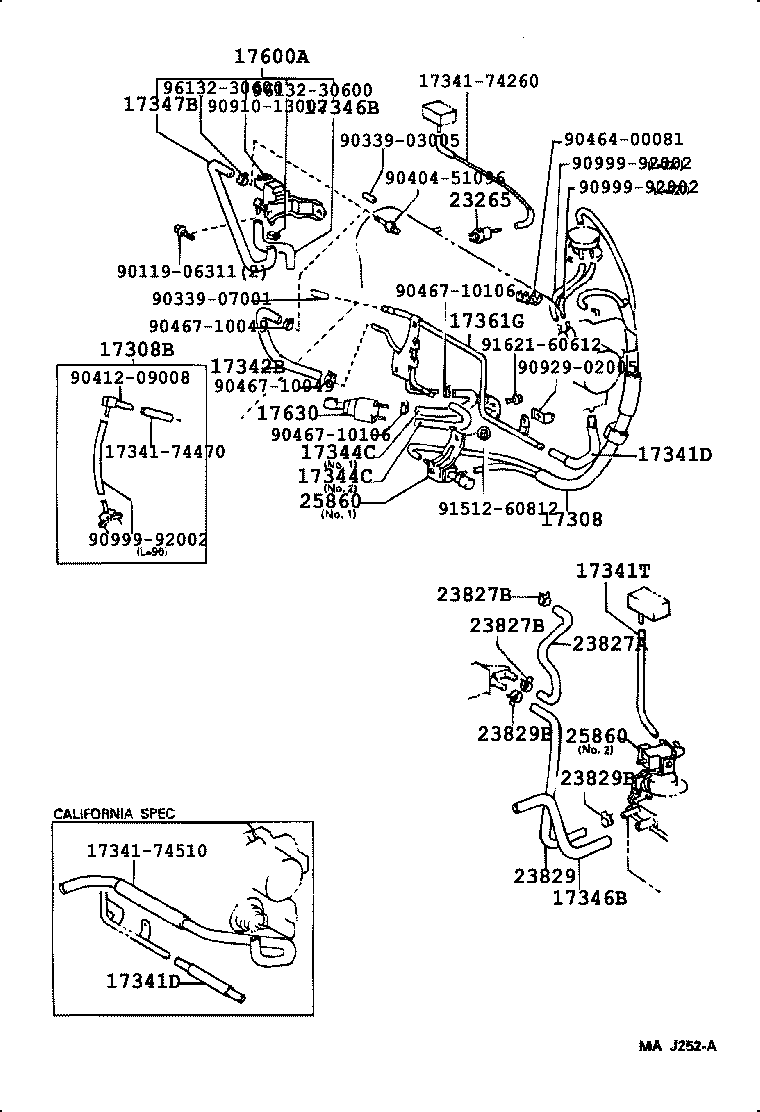

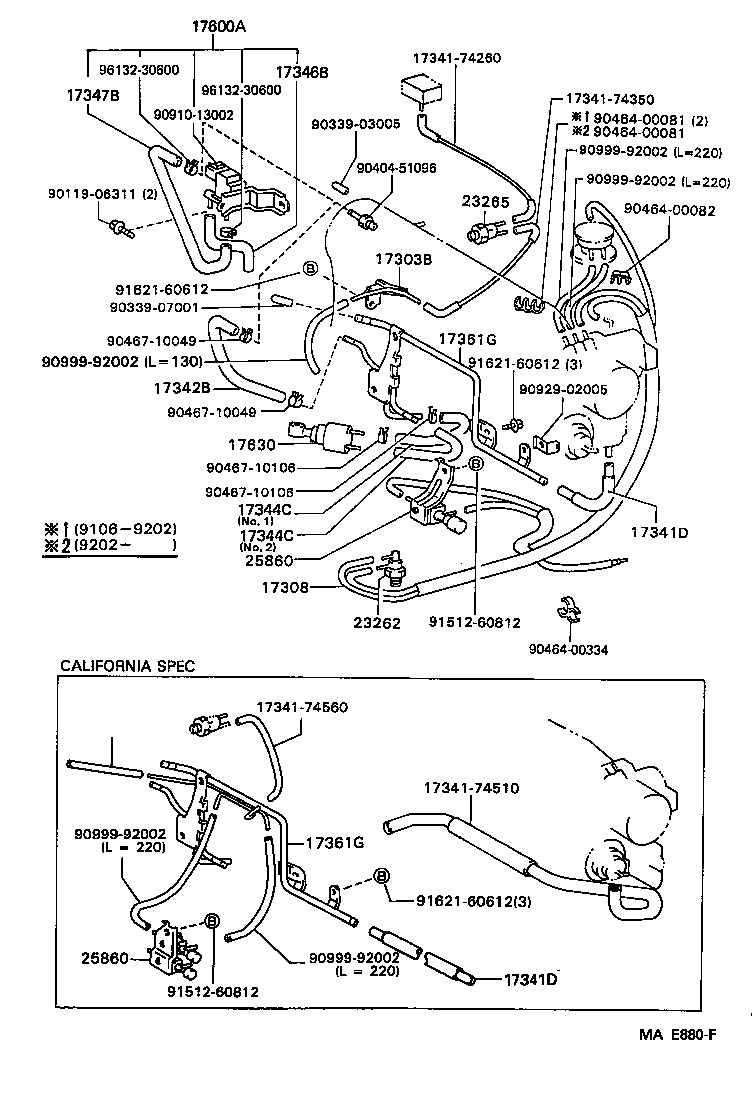

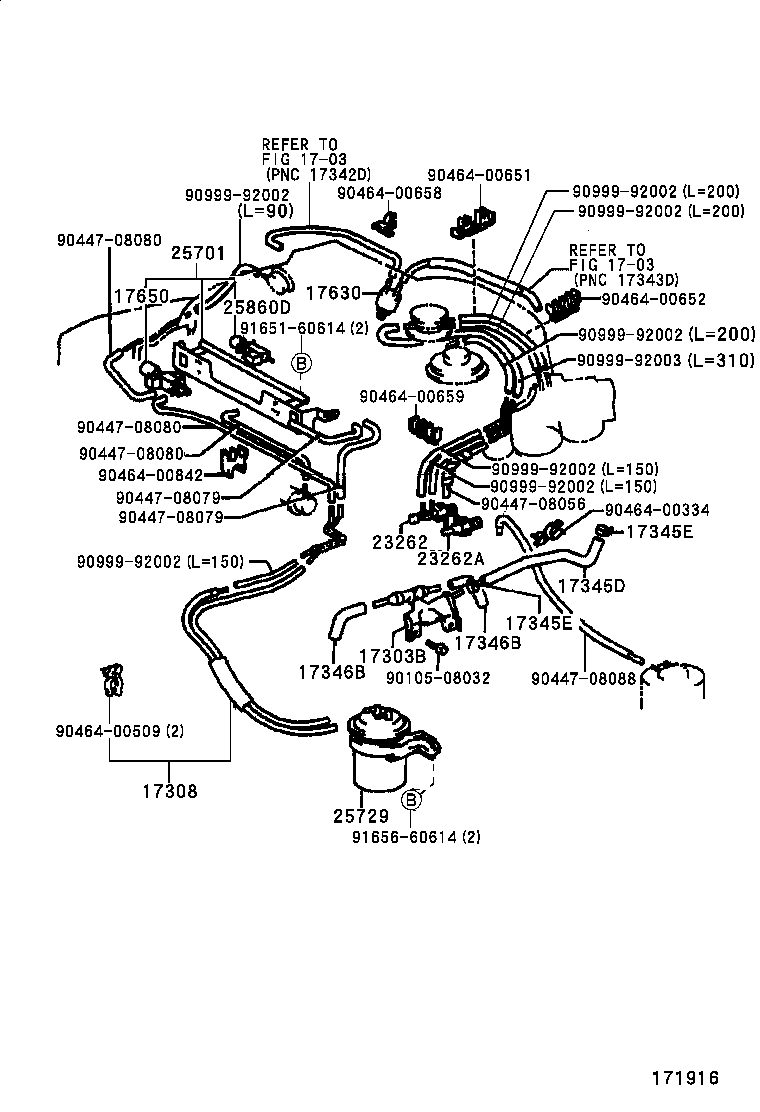

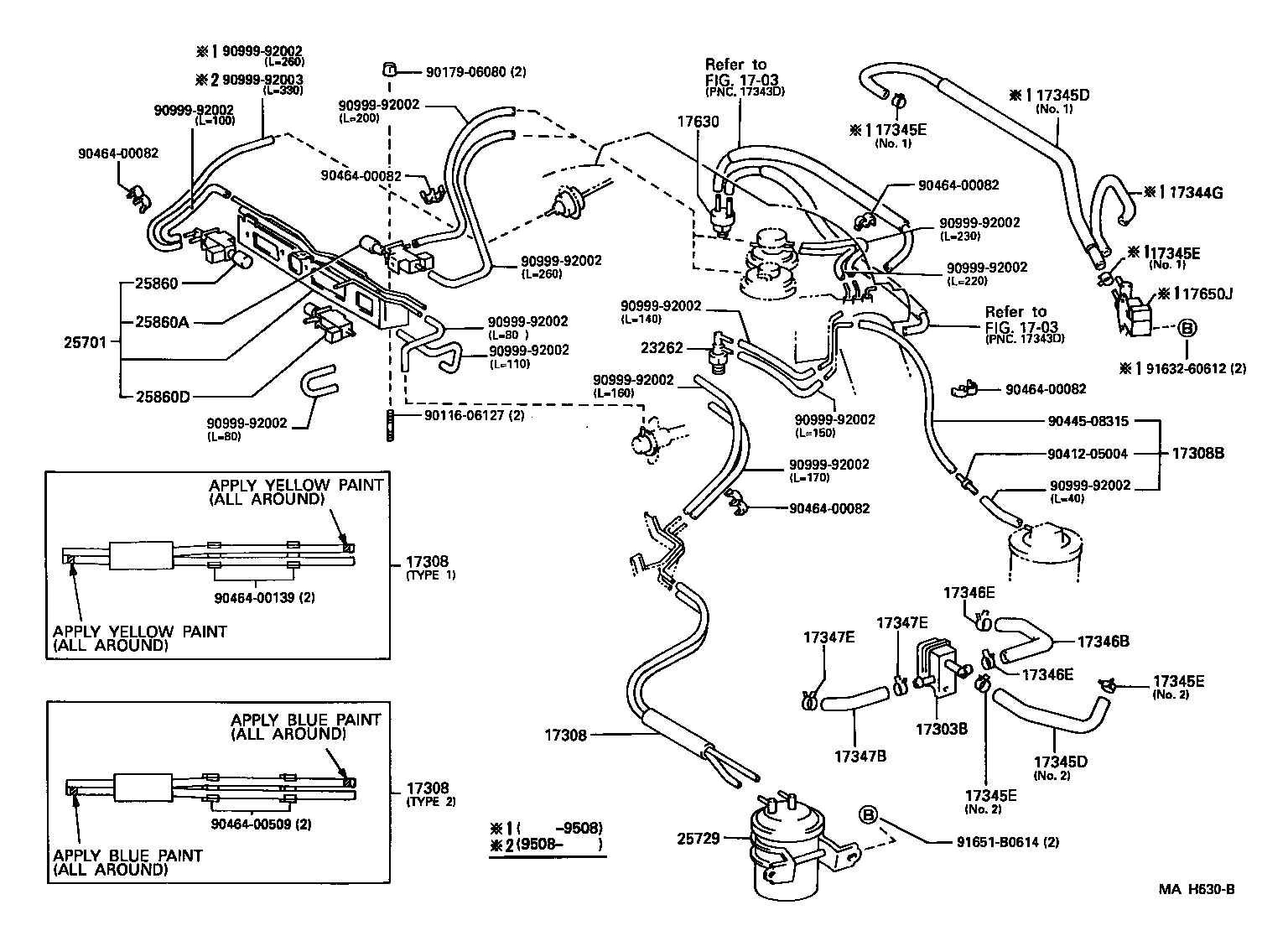

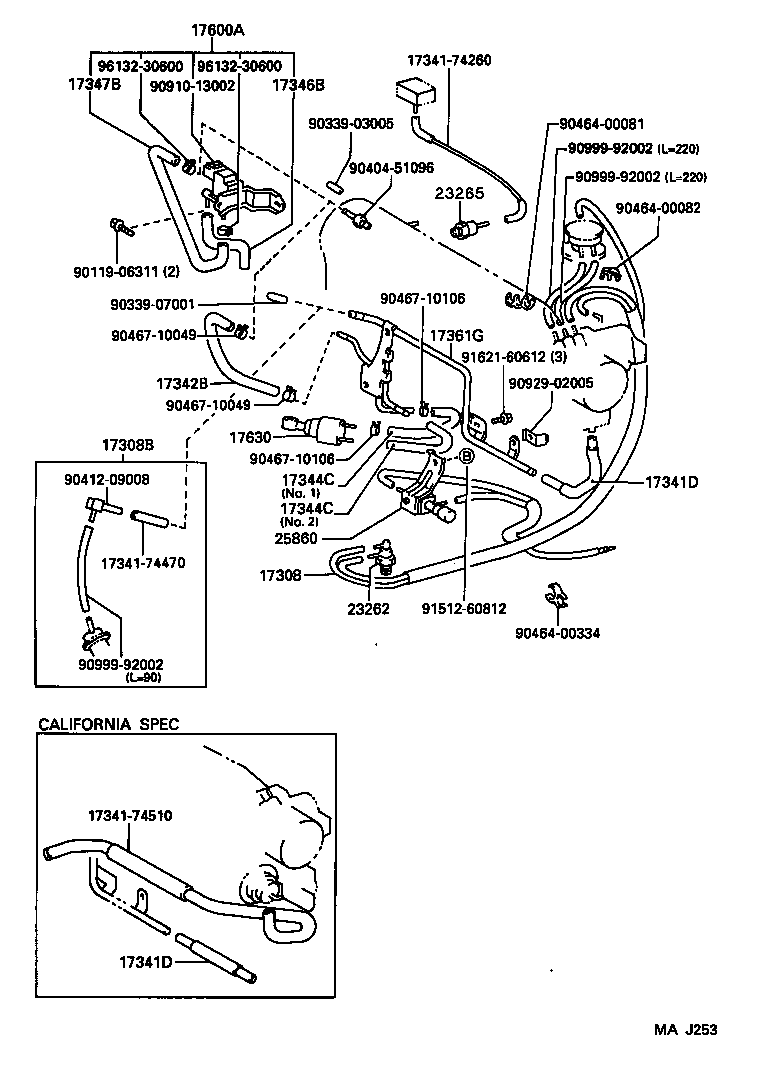

Figure MAH397A MAH397A 1993-08 → 1994-08 Figure MAH630B MAH630B 1994-08 → — Figure MAE880F MAE880F 1991-06 → 1995-08 Figure 177037 177037 1995-08 → — Figure MAJ253 MAJ253 1995-08 → — Figure MA9504B MA9504B 1991-06 → — Figure 171916 171916 1991-06 → 1993-08

Part groups

PNCDescription
17303B Pipe Sub-assy, Air, NO.1
17308 Hose Sub-assy, Vacuum(FOR IDLE-UP)
17308B Hose Sub-assy, Vacuum
17341D Hose, NO.1(FOR IDLE-UP)
17341T Hose, Air, NO.1
17342B Hose, NO.2(FOR IDLE-UP)
17344C Hose, NO.4(FOR IDLE-UP)
17344G Hose, Air, NO.4
17344M Clip(FOR AIR HOSE, NO.4)
17345D Hose, Air, NO.5
17345E Clamp OR Clip(FOR AIR HOSE, NO.5)
17346B Hose, Air, NO.6
17346E Clip(FOR AIR HOSE NO.6)
17347B Hose, Air, NO.7
17347E Clip(FOR AIR HOSE NO.7)
17361G Tube, Air(FOR IDLE-UP)
17600A Valve Assy, Air By-pass W/Hose
17630 Valve Assy, Air Control
17650 Valve Assy, Vacuum Switching
17650J Valve, Solenoid W/Adjust Screw
23262 Valve, Bimetal Vacuum Switching, NO.1
23262A Valve, Bimetal Vacuum Switching, NO.2
23265 Filter, Gas, NO.1
23827A Hose, Fuel Vapor Feed, NO.2
23827B Clip(FOR FUEL VAPOR FEED HOSE, NO.2)
23829 Hose, Fuel Vapor Feed, NO.3
23829B Clip(FOR FUEL VAPOR FEED HOSE)
25701 Valve Set, Emission Control
25729 Tank, Vacuum Surge W/Bracket
25860 Valve Assy, Vacuum Switching, NO.1
25860A Valve, Vacuum Switching, NO.1
25860D Valve Assy, Vacuum Switching, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
