Toyota Camry (JPP)

1991-06 → 1996-08 · chassis SXV10,VCV10,MCV10 · catalogue 281450 · Europe

Discontinued model Data version 1997-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Ignition Coil & Spark Plug / Glow Plug

21 part groups · 6 illustrations

Illustrations

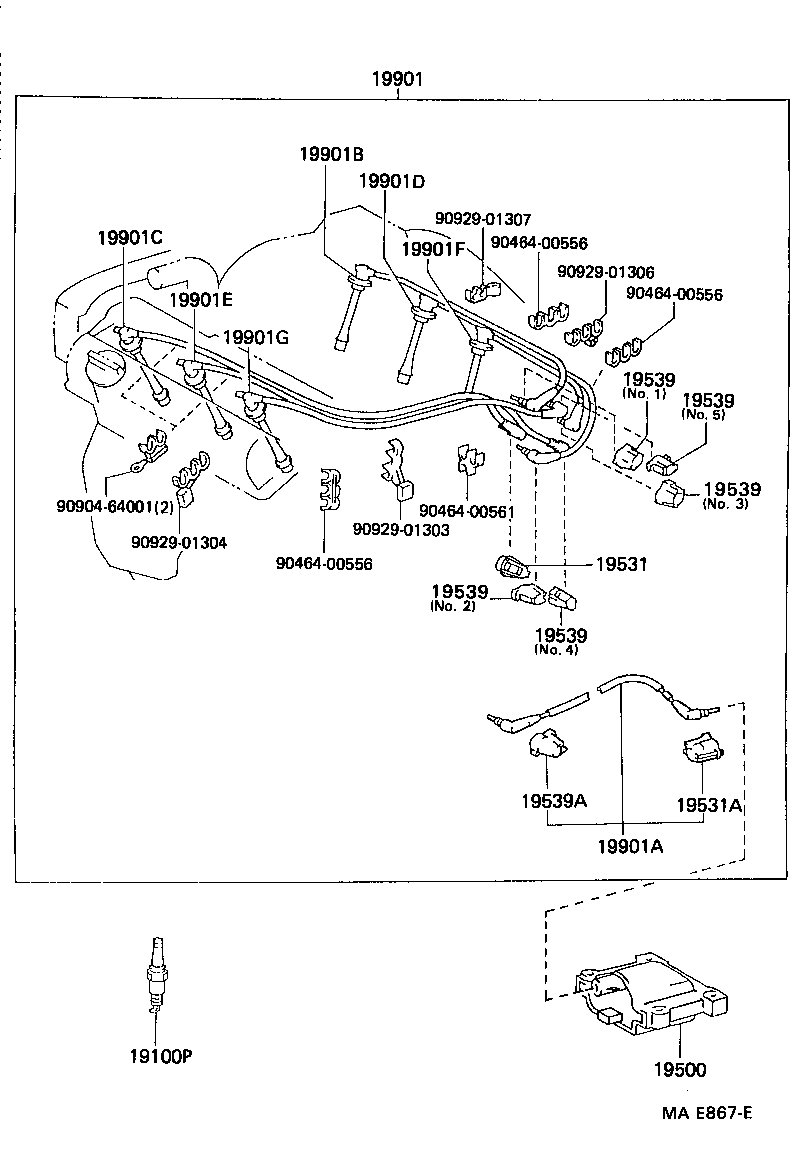

Figure MAK356 MAK356 1993-08 → — Figure MAE668B MAE668B 1991-06 → 1993-08 Figure MAG858 MAG858 1993-08 → 1995-08 Figure MAG768A MAG768A 1993-08 → 1995-08 Figure MAG768A MAG768A 1995-08 → — Figure MAE867E MAE867E 1991-06 → 1993-08

Part groups

PNCDescription
11265 Cover, Coil & Resistive Cord, Upr
19100P Plug, Spark
19500 Coil Assy, Ignition
19531 Holder, Resistive Cord, NO.1
19531A Holder, Resistive Code, NO.3
19532 Holder, Resistive Code, NO.2
19539 Holder, Resistive Code, NO.4
19539A Holder, Resistive Code, NO.5
19901 Cord Set, Coil & Spark, W/Resistive
19901A Cord, Coil Resistive
19901B Cord, Spark Plug Resistive, NO.1
19901C Cord, Spark Plug Resistive, NO.2
19901D Cord, Spark Plug Resistive, NO.3
19901E Cord, Spark Plug Resistive, NO.4
19901F Cord, Spark Plug Resistive, NO.5
19901G Cord, Spark Plug Resistive, NO.6
19941 Clamp, Resistive Cord, NO.1
19941A Clamp(FOR RESISTIVE CORD)
19942 Clamp, Resistive Cord, NO.2
19946 Clamp, Resistive Cord, NO.3
19947 Clamp, Resistive Cord, NO.4
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
