Toyota Camry (JPP)

1991-06 → 1996-08 · chassis SXV10,VCV10,MCV10 · catalogue 281450 · Europe

Discontinued model Data version 1997-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake NO.3, 1ST & Reverse Brake (ATM)

7 part groups · 4 illustrations

Illustrations

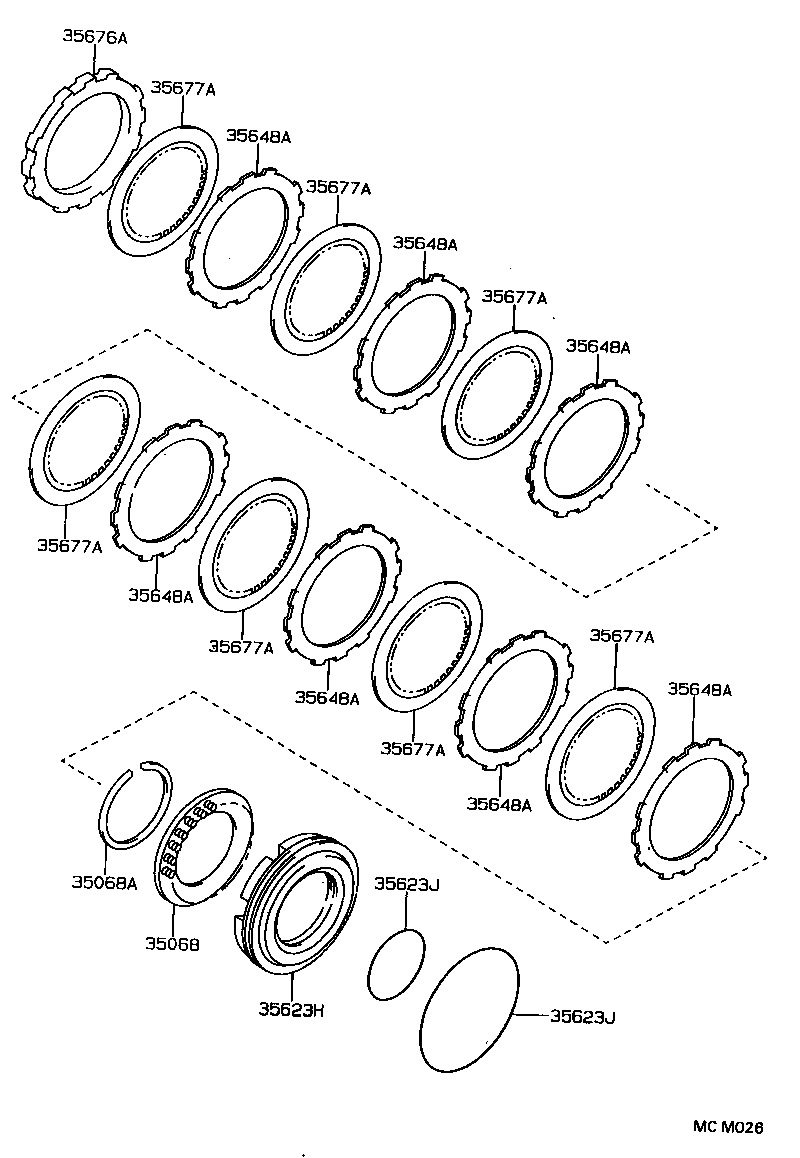

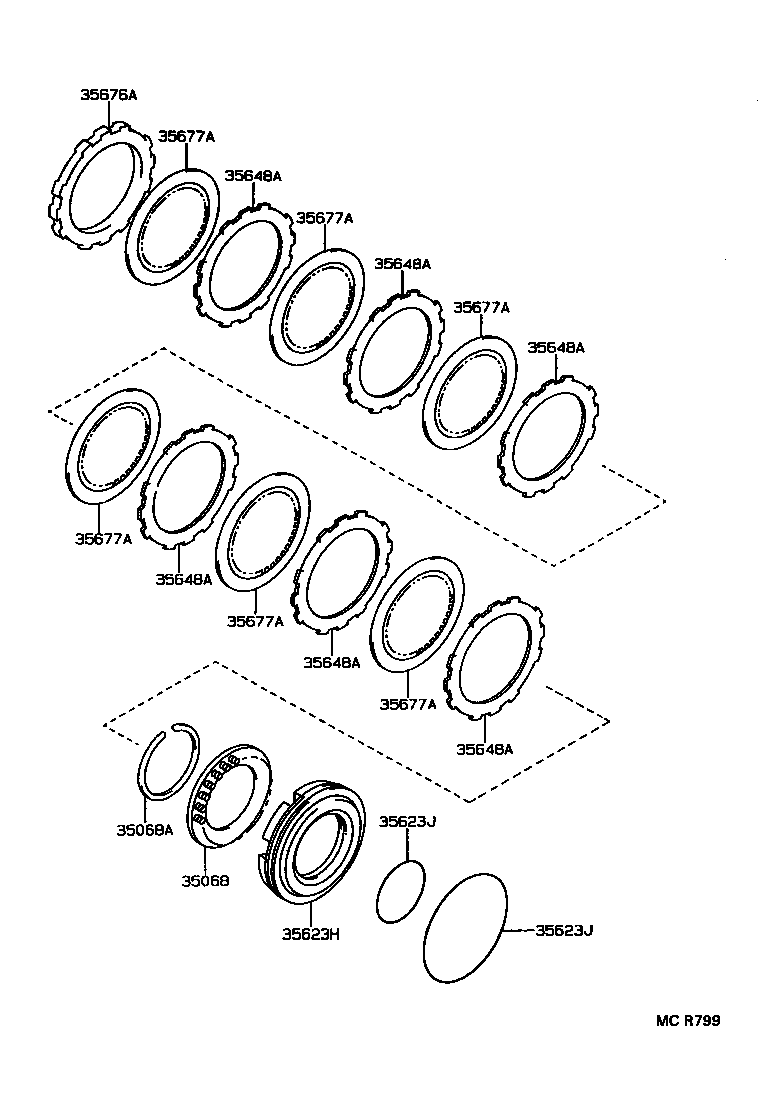

Figure MCM025A MCM025A 1991-06 → — Figure MCM026 MCM026 1991-06 → 1993-08 Figure MCR799 MCR799 1993-08 → 1993-09 Figure MCR799 MCR799 1993-09 → —

Part groups

PNCDescription
35068 Spring Sub-assy, 1ST & Reverse Brake Return
35068A Ring, Shaft Snap (FOR 1ST & REVERSE BRAKE RETURN SPRING)
35623H Piston, 1ST & Reverse Brake
35623J Ring, O (FOR 1ST & REVERSE BRAKE)
35648A Plate, Clutch (FOR 1ST & REVERSE BRAKE)
35676A Flange, Brake (FOR 1ST & REVERSE BRAKE)
35677A Disc, Clutch (FOR 1ST & REVERSE BRAKE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
