Toyota Camry (JPP)

1991-06 → 1996-08 · chassis SXV10,VCV10,MCV10 · catalogue 281450 · Europe

Discontinued model Data version 1997-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Drive Shaft

44 part groups · 6 illustrations

Illustrations

MCV784 1991-06 → —

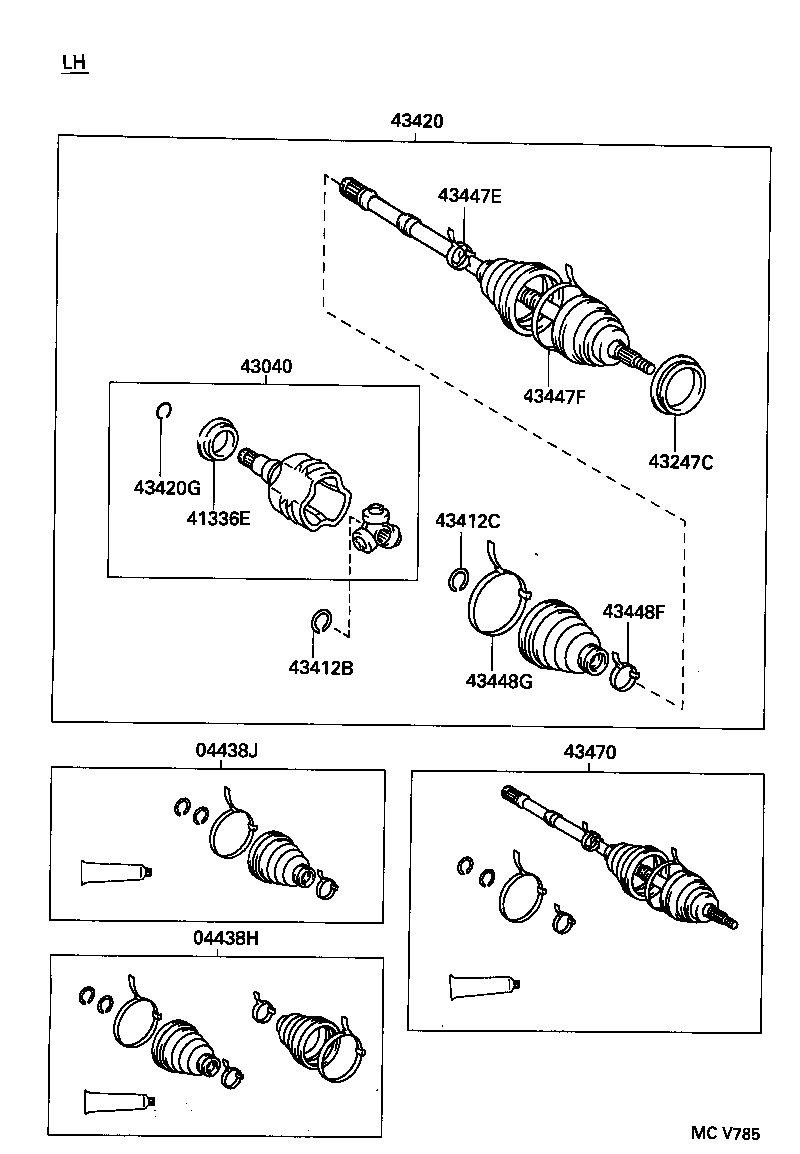

MCV785 1991-06 → —

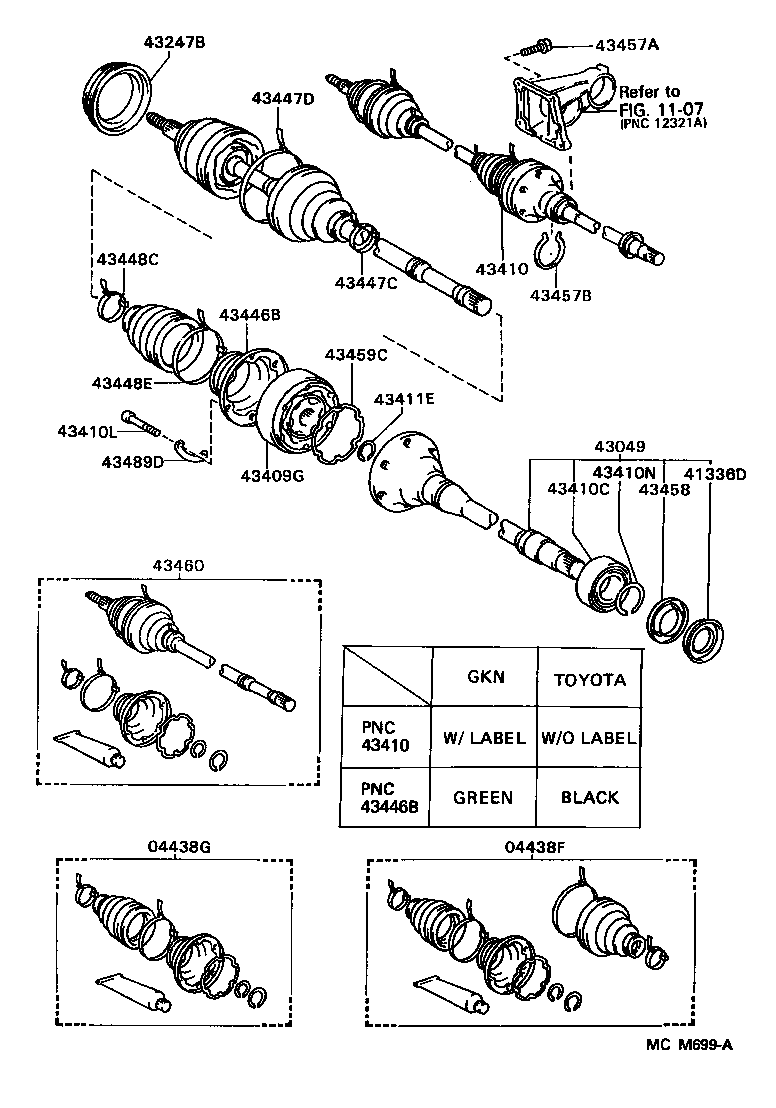

MCM699A 1991-06 → 1993-08

MCM699A 1993-08 → —

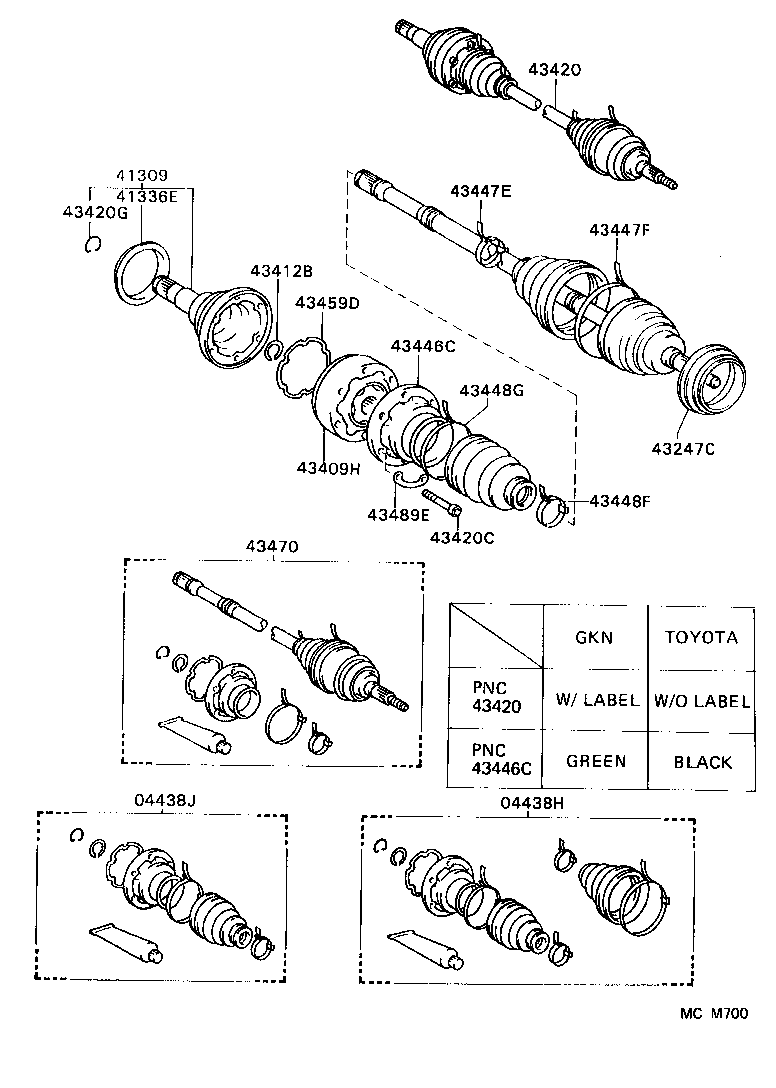

MCM700 1991-06 → 1993-08

MCM700 1993-08 → —

Part groups

PNC	Description
04438F	Boot Kit, Front Drive Shaft, IN & Outboard, RH
04438G	Boot Kit, Front Drive Shaft Inboard Joint, RH
04438H	Boot Kit, Front Drive Shaft, IN & Outboard, LH
04438J	Boot Kit, Front Drive Shaft Inboard Joint, LH
41309	Shaft Sub-assy, Differential Side Gear, LH
41336D	Cover, Front Drive Shaft Dust, RH
41336E	Cover, Front Drive Shaft Dust, LH
43030	Joint Assy, Front Drive Inboard, RH
43040	Joint Assy, Front Drive Inboard, LH
43049	Shaft Sub-assy, Front Drive Flange
43247B	Deflector, Front Wheel Bearing Dust, RH NO.2
43247C	Deflector, Front Wheel Bearing Dust, LH NO.2
43409G	Joint Sub-assy, Front Drive Shaft Cross Groove, RH
43409H	Joint Sub-assy, Front Drive Shaft Cross Groove, LH
43410	Shaft Assy, Front Drive, RH
43410C	Bearing (FOR FRONT DRIVE SHAFT)
43410L	Bolt (FOR FRONT DRIVE SHAFT CROSS GROOVE JOINT RH)
43410N	Ring, Hole Snap (FOR FRONT DRIVE SHAFT RH)
43411E	Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
43411F	Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT OUTER RH)
43412B	Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
43412C	Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT OUTER LH)
43420	Shaft Assy, Front Drive, LH
43420C	Bolt (FOR FRONT DRIVE SHAFT CROSS GROOVE JOINT LH)
43420G	Ring, Hole Snap (FOR FRONT DRIVE SHAFT LH)
43446B	Cover, Front Axle Inboard Joint, RH
43446C	Cover, Front Axle Inboard Joint, LH
43447C	Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
43447D	Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
43447E	Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
43447F	Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
43448C	Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
43448E	Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
43448F	Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
43448G	Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
43457A	Bolt (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
43457B	Ring, Hole Snap (FOR DRIVE SHAFT BEARING BRACKET)
43458	Cover, Front Drive Shaft Dust
43459C	Gasket, Front Drive Shaft Cross Groove Joint, RH
43459D	Gasket, Front Drive Shaft Cross Groove Joint, LH
43460	Shaft Assy, Front Drive Outboard Joint, RH
43470	Shaft Assy, Front Drive Outboard Joint, LH
43489D	Washer, Front Drive Shaft Cross Groove Joint, RH
43489E	Washer, Front Drive Shaft Cross Groove Joint, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
