Toyota Camry (JPP)

1991-06 → 1996-08 · chassis SXV10,VCV10,MCV10 · catalogue 281450 · Europe

Discontinued model Data version 1997-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

10 part groups · 2 illustrations

Illustrations

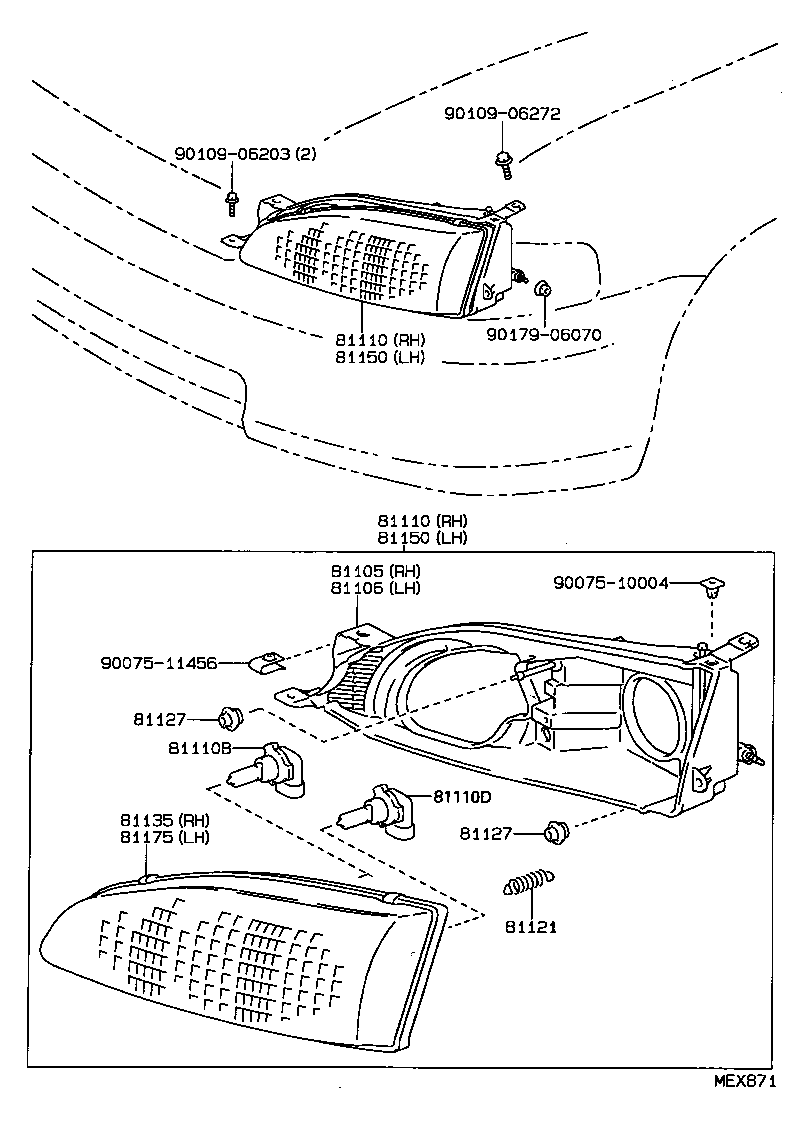

Figure MER724C MER724C 1991-06 → 1994-08 Figure MEX871 MEX871 1994-08 → 1996-08

Part groups

PNCDescription
81105 Housing Sub-assy, Headlamp, RH
81106 Housing Sub-assy, Headlamp, LH
81110 Headlamp Assy, RH
81110B Bulb(FOR HEADLAMP, NO.1)
81110D Bulb(FOR HEADLAMP, NO.2)
81121 Spring, Headlamp Tension
81127 Bearing, Headlamp, NO.1
81135 Unit Assy, Headlamp, RH
81150 Headlamp Assy, LH
81175 Unit Assy, Headlamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
