Toyota Camry (JPP)

1991-06 → 1996-08 · chassis SXV10,VCV10,MCV10 · catalogue 281450 · Europe

Discontinued model Data version 1997-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Unit

9 part groups · 3 illustrations

Illustrations

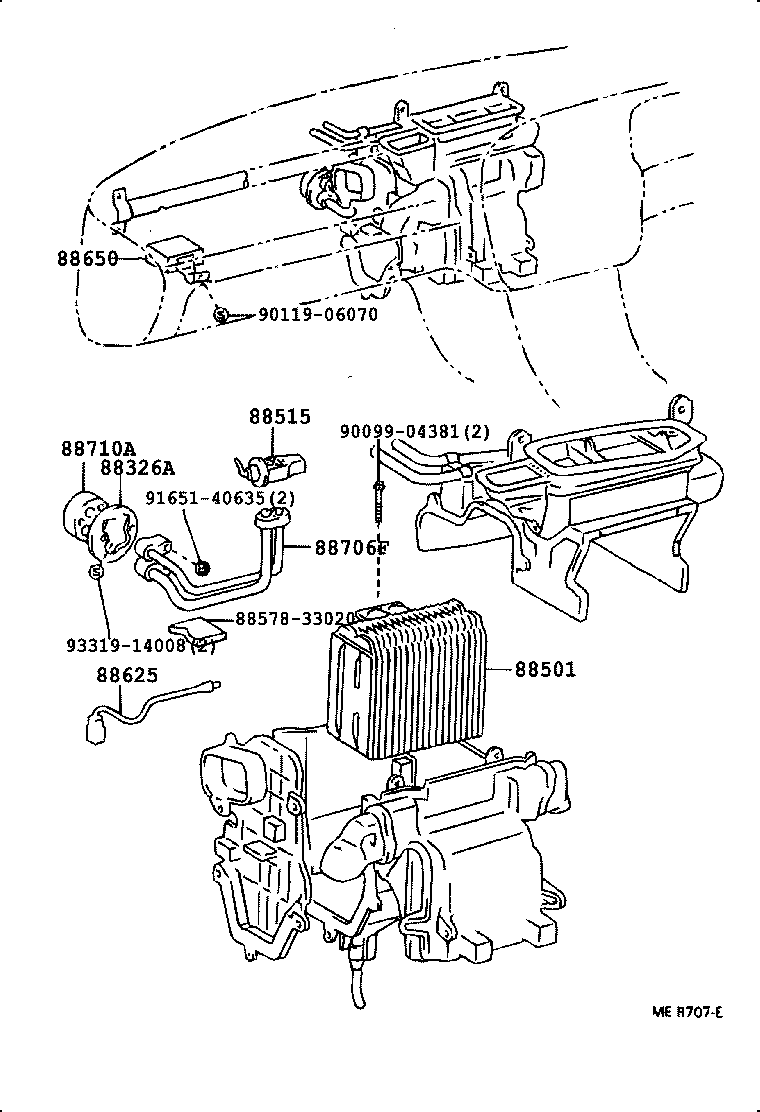

Figure MER704D MER704D 1991-06 → 1996-08 Figure 87B804 87B804 1991-06 → 1996-08 Figure 87B804 87B804 1993-08 → 1996-08

Part groups

PNCDescription
88326A Plate, Cover
88501 Evaporator Sub-assy, Cooler, NO.1
88515 Valve, Cooler Expansion
88605 Harness Sub-assy, Cooler Wiring, NO.1
88625 Thermistor, Cooler, NO.1
88650 Amplifier Assy, Cooler Stabilizer
88706F Tube Sub-assy, Liquid, F
88710A Tube Assy, Air Conditioner
88710J Tube, Air Conditioner Connector
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
