Toyota Camry (JPP)

1996-08 → 2001-07 · chassis SXV2#,MCV2# · catalogue 281460 · Europe

Discontinued model Data version 2001-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transaxle OR Transmission Assy & Gasket Kit (ATM)

3 part groups · 2 illustrations

Illustrations

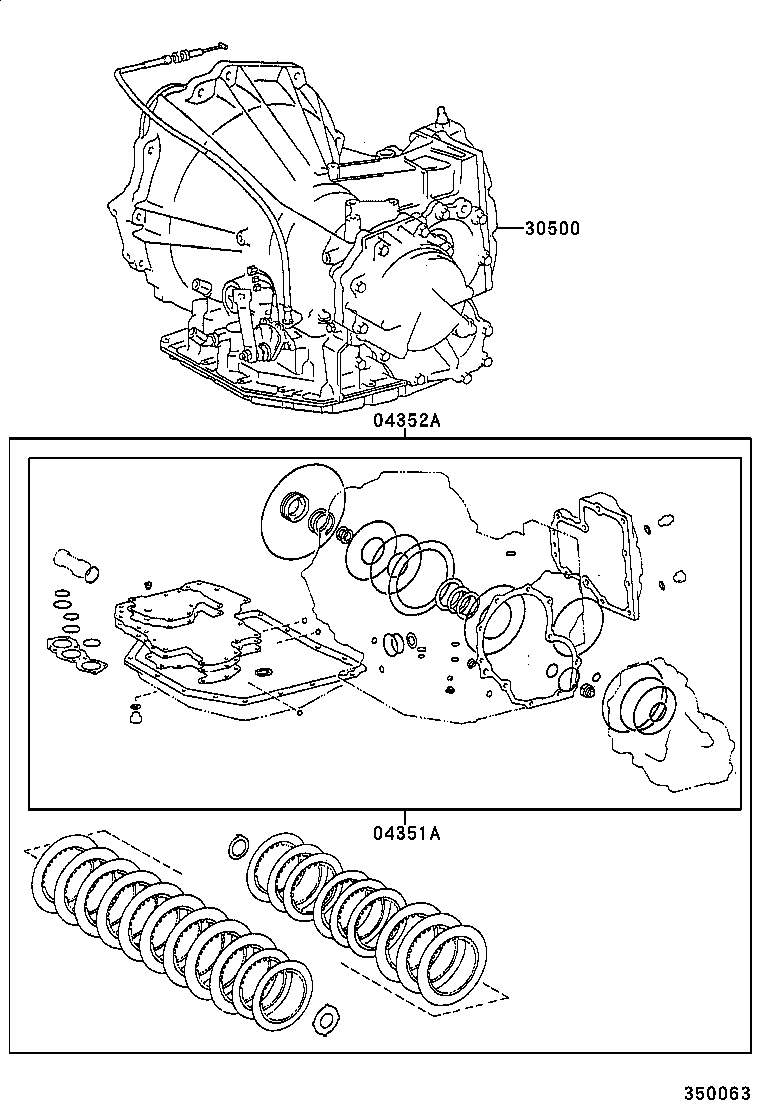

Figure 350062 350062 1996-08 → — Figure 350063 350063 1996-08 → —

Part groups

PNCDescription
04351A Gasket Kit, Transaxle Overhaul(ATM)
04352A Kit, Transaxle Overhaul(ATM)
30500 Transaxle Assy, Automatic
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
