Toyota Camry (JPP)

1996-08 → 2001-07 · chassis SXV2#,MCV2# · catalogue 281460 · Europe

Discontinued model Data version 2001-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt & Child Restraint Seat

16 part groups · 2 illustrations

Illustrations

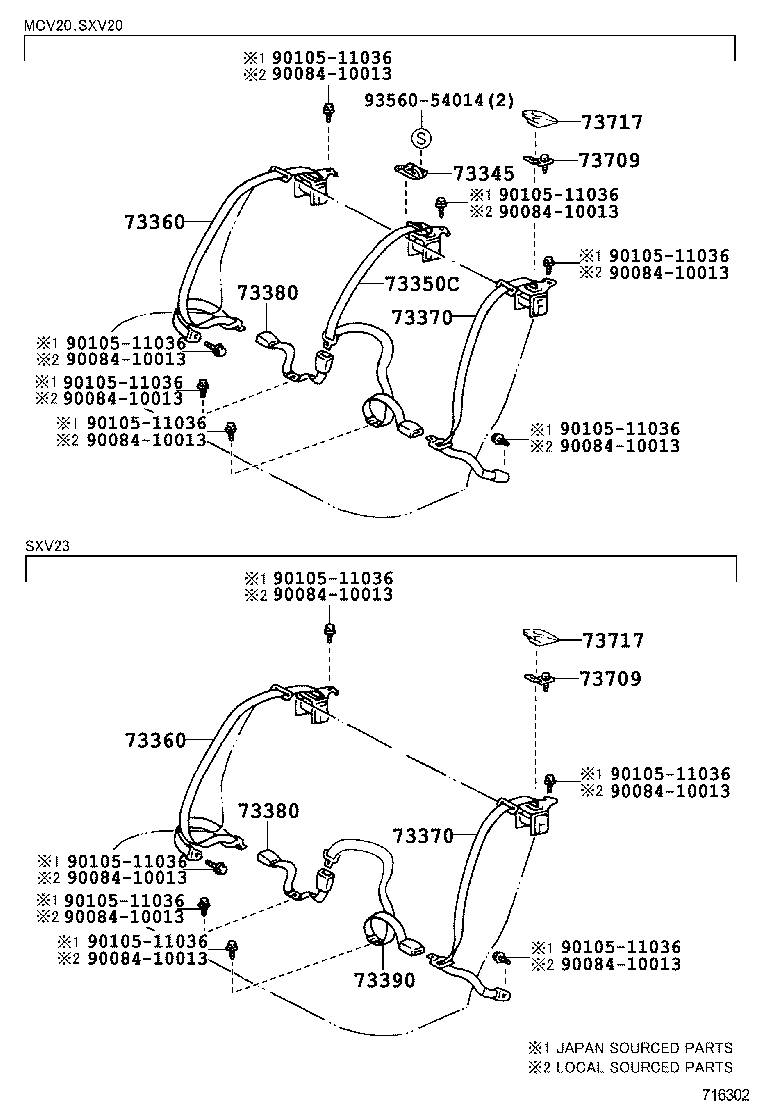

Figure 716303 716303 1996-08 → — Figure 716302 716302 1996-08 → —

Part groups

PNCDescription
73178A Cap, Seat Belt Anchor Cover
73200A Adjuster Assy, Front Shoulder Belt Anchor
73210 Belt Assy, Front Seat Outer, RH
73219 Stopper, Tongue Plate
73220 Belt Assy, Front Seat Outer, LH
73230 Belt Assy, Front Seat Inner, RH
73237A Cover, Shoulder Belt Anchor
73240 Belt Assy, Front Seat Inner, LH
73345 Guide, Rear Seat Shoulder Belt, Center
73350C Belt Assy, Rear Seat, Outer Center
73360 Belt Assy, Rear Seat 3 Point Type, Outer RH
73370 Belt Assy, Rear Seat 3 Point Type, Outer LH
73380 Belt Assy, Rear Seat 3 Point Type, Inner, RH
73390 Belt Assy, Rear Seat 3 Point Type, Inner, LH
73709 Bracket Sub-assy, Tether Anchor
73717 Cover, Child Restraint Seat Tether Anchor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
