Toyota Camry (JPP)

1996-08 → 2001-07 · chassis SXV2#,MCV2# · catalogue 281460 · Europe

Discontinued model Data version 2001-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

38 part groups · 10 illustrations

Illustrations

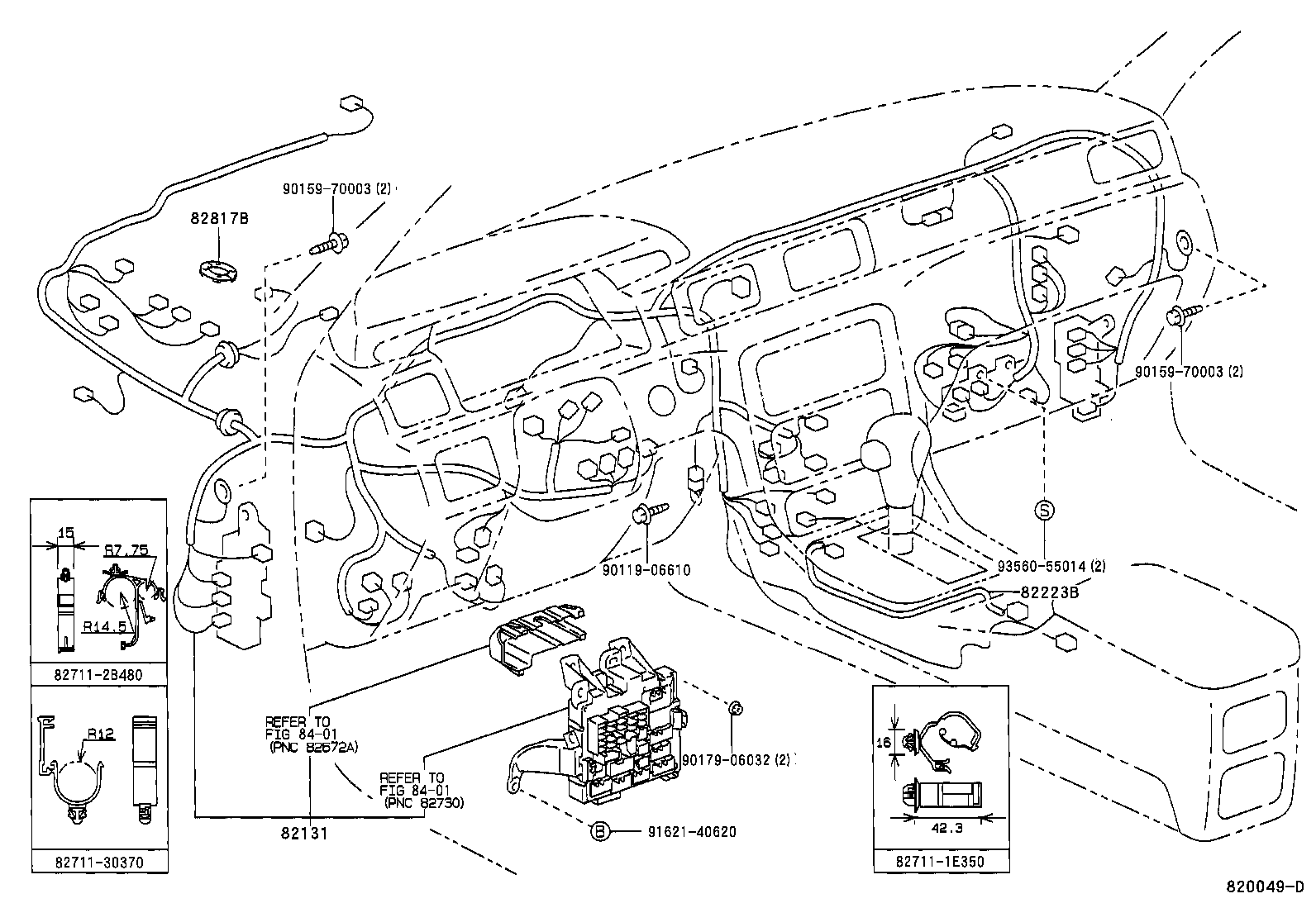

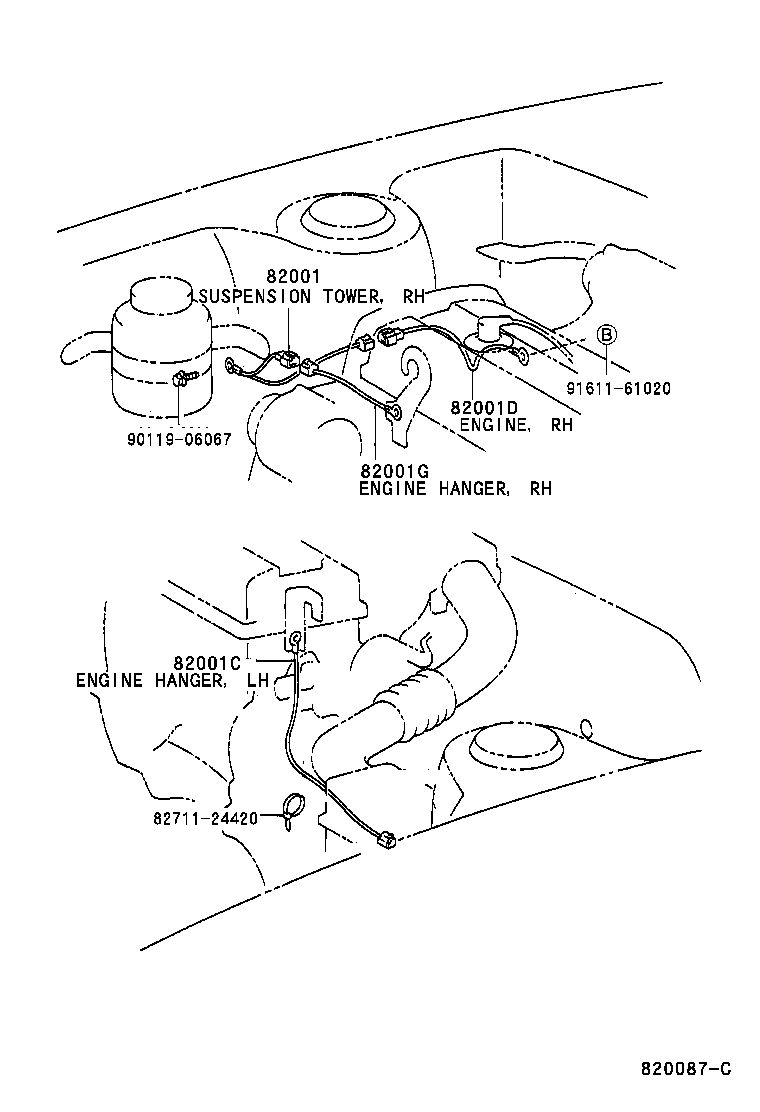

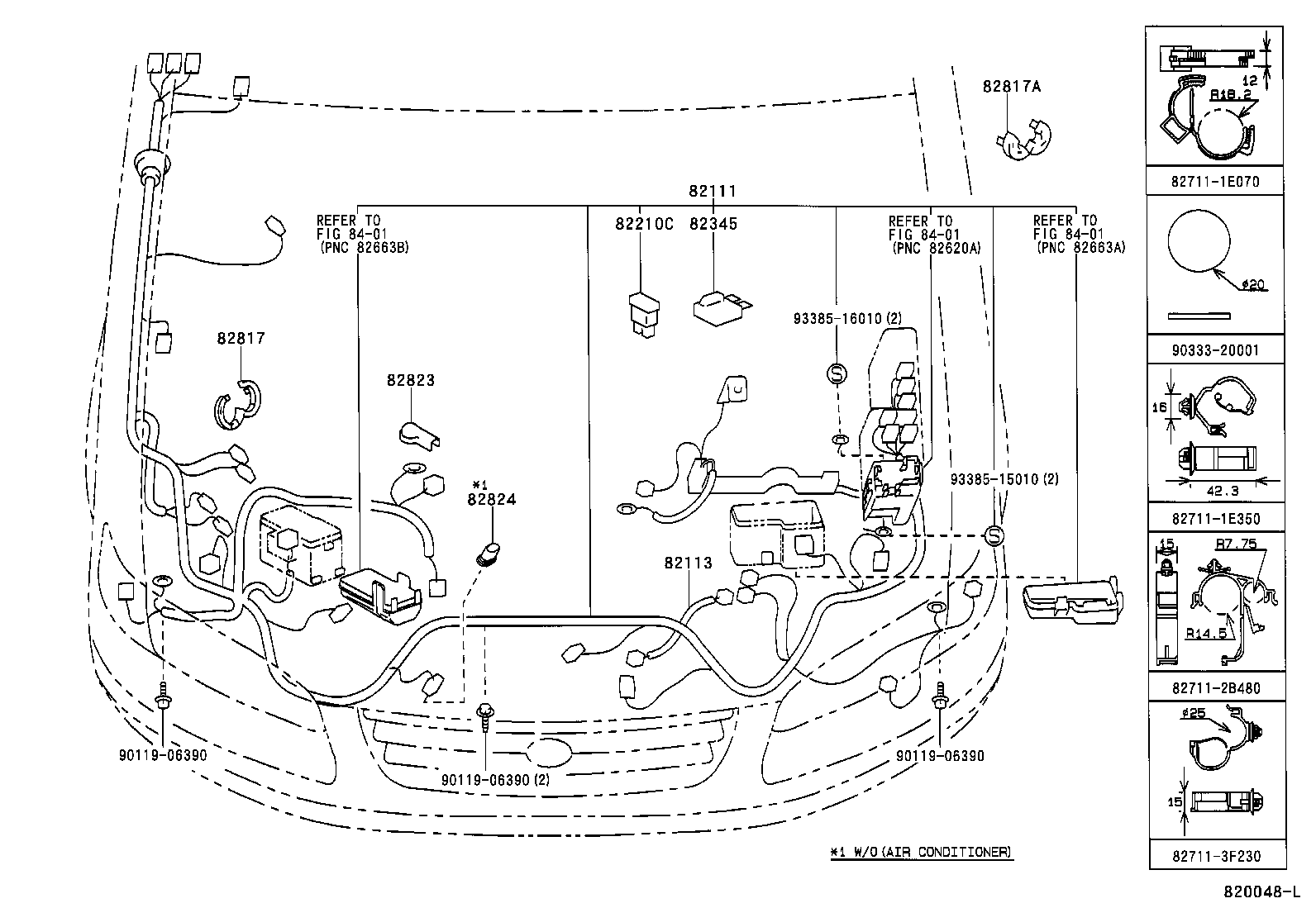

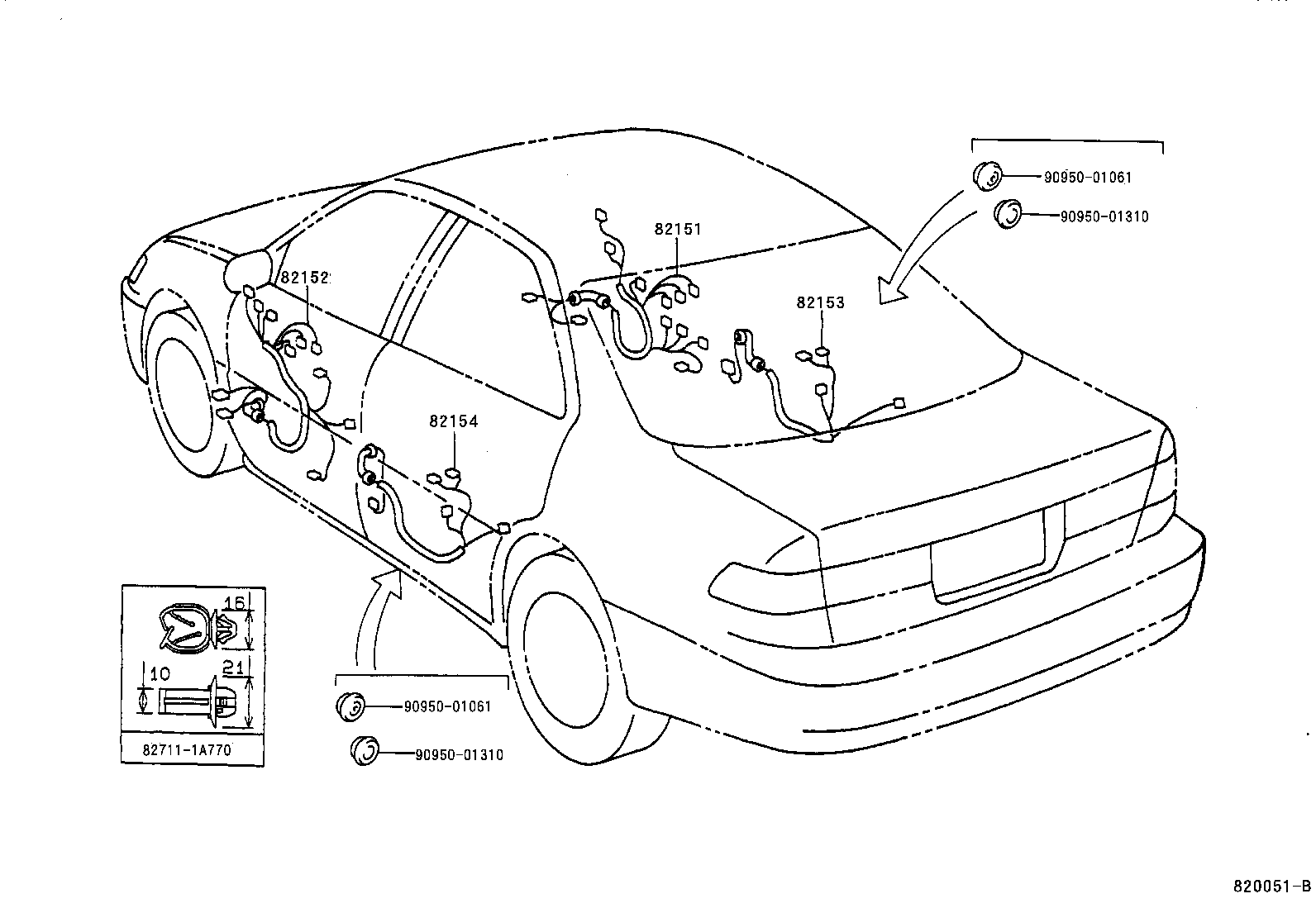

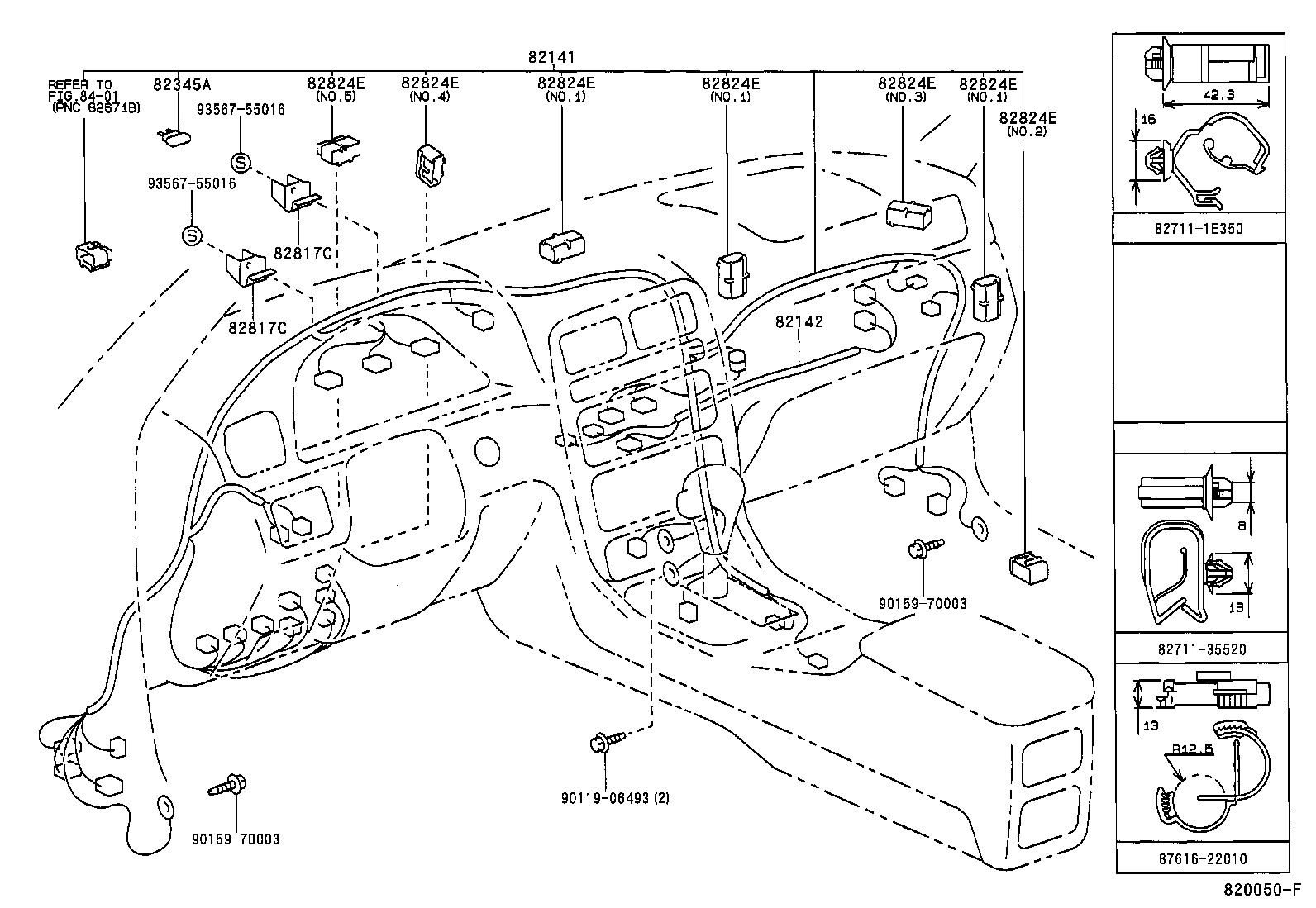

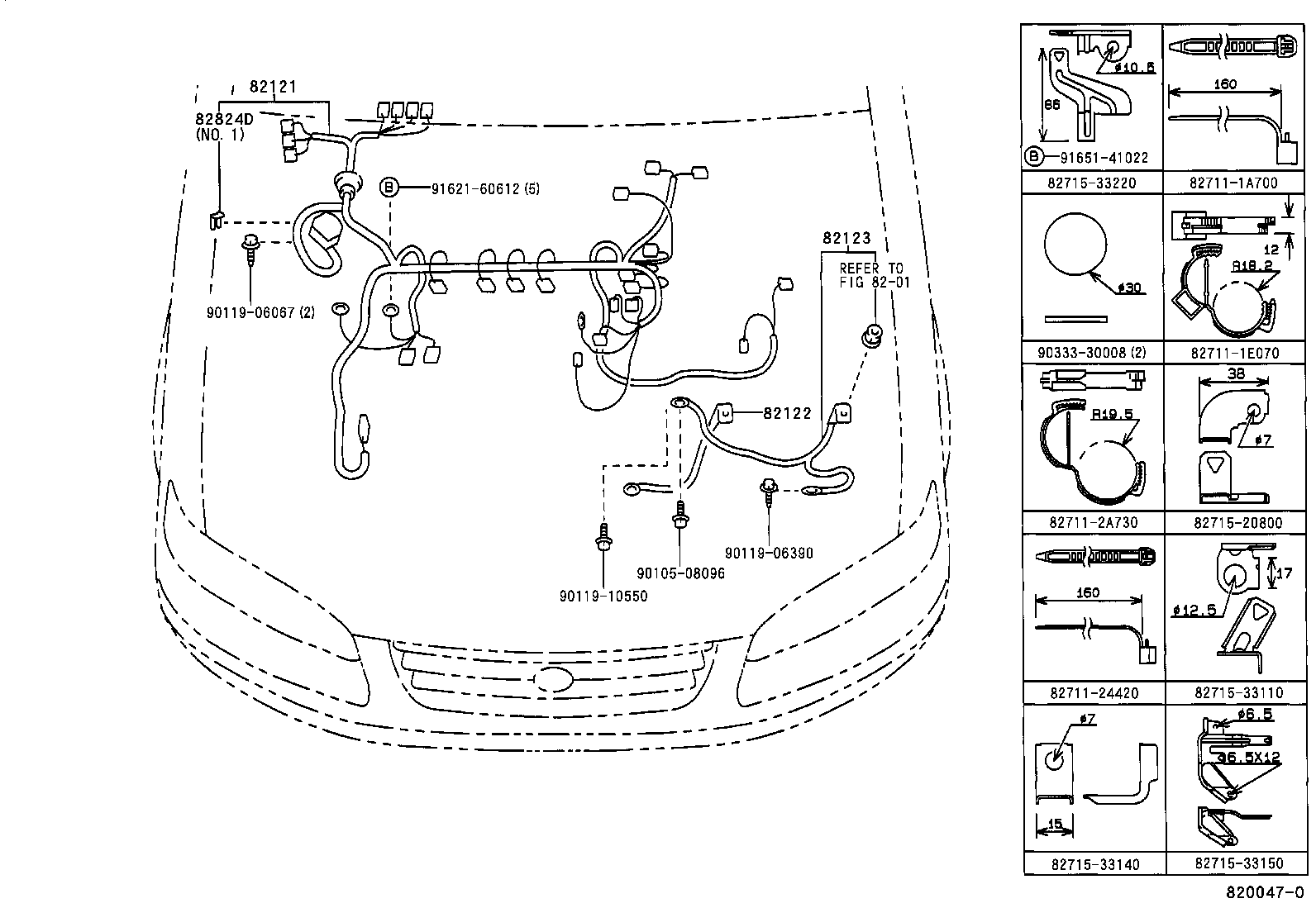

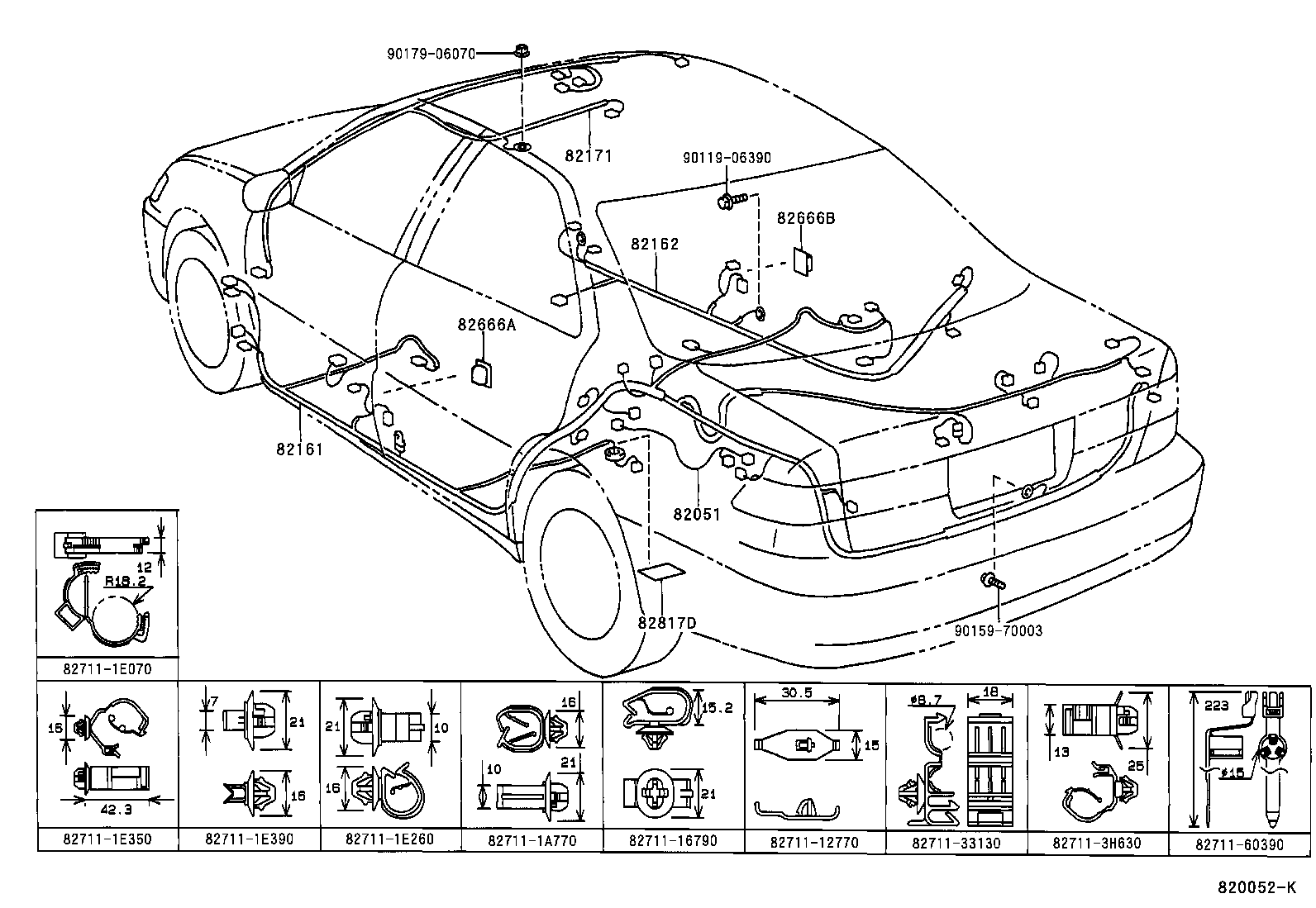

Figure 820046K 820046K 1996-08 → — Figure 820047O 820047O 1996-08 → — Figure 820048L 820048L 1996-08 → — Figure 820049D 820049D 1996-08 → — Figure 820050F 820050F 1996-08 → — Figure 820051B 820051B 1996-08 → — Figure 820052K 820052K 1996-08 → — Figure 820148A 820148A 1996-08 → — Figure 820086B 820086B 1996-08 → — Figure 820087C 820087C 1996-08 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82001C Cable, Bond, NO.2
82001D Cable, Bond, NO.3
82001G Cable, Bond, NO.4
82051 Harness Assy, Fuel Control
82111 Wire, Engine Room Main
82113 Wire, Engine Room, NO.3
82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82131 Wire, Cowl
82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82162 Wire, Floor, NO.2
82167 Wire, Seat, NO.1
82168 Wire, Seat, NO.2
82171 Wire, Roof, NO.1
82210C Fusible Link
82219A Wire, Sensor
82223B Wire, Switch, NO.2
82345 Diode
82345A Diode
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82817D Protector, Wiring Harness, NO.5
82823 Cap, Terminal, NO.1
82824 Connector, Wiring Harness
82824D Connector, Wiring Harness
82824E Connector, Wiring Harness
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
