Toyota Camry
1986-10 → 1988-08 · chassis SV2#,CV20,VZV21 · catalogue 281530 · Europe
Discontinued model
Data version 1989-04

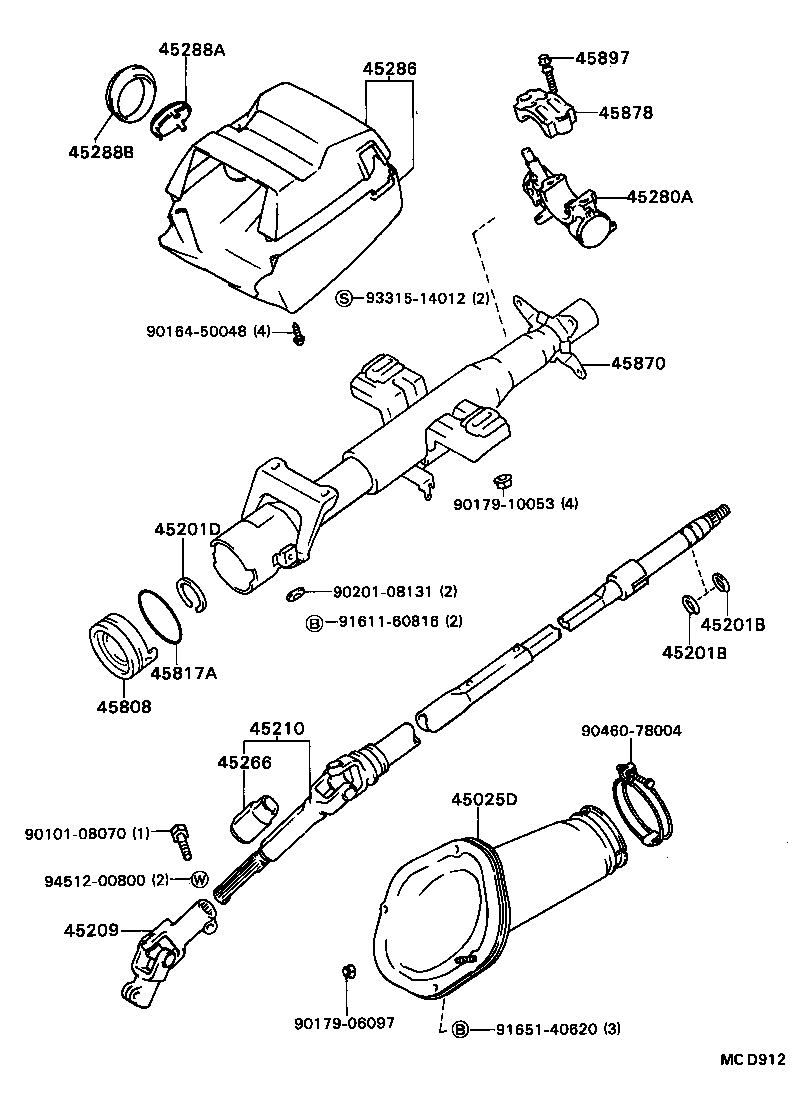

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 45025D — Cover Sub-assy, Steering Column Hole, NO.1 | ||||
| 45025-32050 |
Cover Sub-assy, Steering Column Hole, NO.1
1987-10 → 1988-08
ended
|
CV20,SV21,25 RHD | — | |
| 45025-32050 |
Cover Sub-assy, Steering Column Hole, NO.1
1986-10 → 1987-10
ended
|
CV20,SV21 RHD | — | |
| 45025-32060 |
Cover Sub-assy, Steering Column Hole, NO.1
1986-10 → 1988-08
ended
|
CV20,SV2# LHD | — | |
| 45025-32080 |
Cover Sub-assy, Steering Column Hole, NO.1
1988-02 → 1988-08
ended
|
VZV21 | — | |
| 45201B — Ring, Shaft Snap(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 note |
Ring, Shaft Snap(FOR STEERING MAIN SHAFT)
1987-11 → 1988-08
ended
|
SV20,21 LHD | — | |
| 90520-17042 note |
Ring, Shaft Snap(FOR STEERING MAIN SHAFT)
1987-10 → 1988-08
ended
|
CV20,SV2# | — | |
| 90520-17042 note |
Ring, Shaft Snap(FOR STEERING MAIN SHAFT)
1987-10 → 1988-08
ended
|
CV20,SV25 LHD | — | |
| 90520-17042 note |
Ring, Shaft Snap(FOR STEERING MAIN SHAFT)
1987-10 → 1988-08
ended
|
VZV21 | — | |
| 90520-17042 note |
Ring, Shaft Snap(FOR STEERING MAIN SHAFT)
1987-10 → 1987-11
ended
|
SV20 | — | |
| 90520-17042 note |
Ring, Shaft Snap(FOR STEERING MAIN SHAFT)
1987-10 → 1987-10
ended
|
SV21 LHD | — | |
| 90520-17042 note |
Ring, Shaft Snap(FOR STEERING MAIN SHAFT)
1986-10 → 1987-10
ended
|
CV20,SV2# | — | |
| 90520-17042 note |
Ring, Shaft Snap(FOR STEERING MAIN SHAFT)
1987-10 → 1987-11
ended
|
SV21 LHD | — | |
| 90520-17196 note |
Ring, Shaft Snap(FOR STEERING MAIN SHAFT)
1986-10 → 1987-10
ended
|
CV20,SV2# | — | |
| 90520-17196 note |
Ring, Shaft Snap(FOR STEERING MAIN SHAFT)
1987-10 → 1988-08
ended
|
CV20,SV2# | — | |
| 45201D — Ring(FOR STEERING MAIN SHAFT) | ||||
| 90520-28061 |
Ring(FOR STEERING MAIN SHAFT)
1986-10 → 1988-08
ended
|
CV20,SV2# | — | |
| 96152-00300 note |
Ring(FOR STEERING MAIN SHAFT)
1987-10 → 1987-11
ended
|
SV21 LHD | — | |
| 96152-00300 note |
Ring(FOR STEERING MAIN SHAFT)
1987-11 → 1988-08
ended
|
SV20,21 LHD | — | |
| 96152-00300 note |
Ring(FOR STEERING MAIN SHAFT)
1987-10 → 1988-08
ended
|
CV20,SV25 LHD | — | |
| 96152-00300 |
Ring(FOR STEERING MAIN SHAFT)
1987-10 → 1988-08
ended
|
VZV21 | — | |
| 96152-00300 note |
Ring(FOR STEERING MAIN SHAFT)
1987-10 → 1987-11
ended
|
SV20 | — | |
| 96152-00300 note |
Ring(FOR STEERING MAIN SHAFT)
1987-10 → 1987-10
ended
|
SV21 LHD | — | |
| 96152-00300 note |
Ring(FOR STEERING MAIN SHAFT)
1986-10 → 1987-10
ended
|
CV20,SV2# LHD | — | |
| 45209 — Yoke Sub-assy, Steering Sliding | ||||
| 45209-32010 |
Yoke Sub-assy, Steering Sliding
1986-10 → 1987-10
ended
|
SV2# LHD | — | |
| 45209-32010 |
Yoke Sub-assy, Steering Sliding
1987-10 → 1988-08
ended
|
SV20,21 LHD | — | |
| 45209-32020 |
Yoke Sub-assy, Steering Sliding
1987-10 → 1988-08
ended
|
SV21 RHD;CV20,SV25,VZV21 | — | |
| 45209-32020 note |
Yoke Sub-assy, Steering Sliding
1987-11 → 1988-08
ended
|
SV20,21 LHD | — | |
| 45209-32020 note |
Yoke Sub-assy, Steering Sliding
1987-10 → 1987-11
ended
|
SV20 | — | |
| 45209-32020 note |
Yoke Sub-assy, Steering Sliding
1986-10 → 1987-10
ended
|
CV20,SV2# | — | |
| 45209-32020 note |
Yoke Sub-assy, Steering Sliding
1987-10 → 1987-10
ended
|
SV21 LHD | — | |
| 45209-32020 note |
Yoke Sub-assy, Steering Sliding
1987-10 → 1987-11
ended
|
SV21 LHD | — | |
| 45210 — Shaft Assy, Steering Main | ||||
| 45210-32110 |
Shaft Assy, Steering Main
1986-10 → 1987-10
ended
|
CV20,SV21 RHD | — | |
| 45210-32110 |
Shaft Assy, Steering Main
1987-10 → 1988-08
ended
|
CV20,SV21,25 RHD | — | |
| 45210-32120 |
Shaft Assy, Steering Main
1986-10 → 1987-10
ended
|
SV2# LHD | — | |
| 45210-32120 |
Shaft Assy, Steering Main
1987-10 → 1988-08
ended
|
SV20,21 LHD | — | |
| 45210-32130 |
Shaft Assy, Steering Main
1986-10 → 1987-10
ended
|
CV20 LHD | — | |
| 45210-32130 |
Shaft Assy, Steering Main
1987-10 → 1988-08
ended
|
CV20,SV25 LHD | — | |
| 45210-32140 note |
Shaft Assy, Steering Main
1987-10 → 1988-08
ended
|
CV20,SV25 LHD | — | |
| 45210-32140 note |
Shaft Assy, Steering Main
1987-11 → 1988-08
ended
|
SV20,21 LHD | — | |
| 45210-32140 |
Shaft Assy, Steering Main
1987-10 → 1988-08
ended
|
VZV21 | — | |
| 45210-32140 note |
Shaft Assy, Steering Main
1987-10 → 1987-11
ended
|
SV20 | — | |
| 45210-32140 note |
Shaft Assy, Steering Main
1987-10 → 1987-10
ended
|
SV21 LHD | — | |
| 45210-32140 note |
Shaft Assy, Steering Main
1986-10 → 1987-10
ended
|
CV20,SV2# LHD | — | |
| 45210-32140 note |
Shaft Assy, Steering Main
1987-10 → 1987-11
ended
|
SV21 LHD | — | |
| 45266 — Cover, Steering Intermediate Shaft Dust | ||||
| 45266-20010 |
Cover, Steering Intermediate Shaft Dust
1987-10 → 1988-08
ended
|
SV21 RHD;CV20,SV25,VZV21 | — | |
| 45266-20010 |
Cover, Steering Intermediate Shaft Dust
1987-11 → 1988-08
ended
|
SV20,21 LHD | — | |
| 45266-20010 |
Cover, Steering Intermediate Shaft Dust
1987-10 → 1987-11
ended
|
SV21 LHD | — | |
| 45266-20010 |
Cover, Steering Intermediate Shaft Dust
1987-10 → 1987-11
ended
|
SV20 | — | |
| 45266-20010 |
Cover, Steering Intermediate Shaft Dust
1987-10 → 1987-10
ended
|
SV21 LHD | — | |
| 45266-20010 |
Cover, Steering Intermediate Shaft Dust
1986-10 → 1987-10
ended
|
CV20,SV2# | — | |
| 45280A — Bracket Assy, Steering Column, Upper | ||||
| 45280-20280 |
Bracket Assy, Steering Column, Upper
1986-10 → 1987-10
ended
|
CV20,SV21 RHD | — | |
| 45280-20280 |
Bracket Assy, Steering Column, Upper
1987-10 → 1988-08
ended
|
CV20,SV21,25 RHD | — | |
| 45280-32100 |
Bracket Assy, Steering Column, Upper
1986-10 → 1988-08
ended
|
CV20,SV2# LHD | — | |
| 45280-32110 note |
Bracket Assy, Steering Column, Upper
1987-11 → 1988-08
ended
|
SV20,21 LHD | — | |
| 45280-32110 note |
Bracket Assy, Steering Column, Upper
1987-10 → 1987-10
ended
|
SV21 LHD | — | |
| 45280-32110 note |
Bracket Assy, Steering Column, Upper
1987-10 → 1988-08
ended
|
CV20,SV25 LHD | — | |
| 45280-32110 |
Bracket Assy, Steering Column, Upper
1987-10 → 1988-08
ended
|
VZV21 | — | |
| 45280-32110 note |
Bracket Assy, Steering Column, Upper
1987-10 → 1987-11
ended
|
SV20 | — | |
| 45280-32110 note |
Bracket Assy, Steering Column, Upper
1986-10 → 1987-10
ended
|
CV20,SV2# LHD | — | |
| 45280-32110 note |
Bracket Assy, Steering Column, Upper
1987-10 → 1987-11
ended
|
SV21 LHD | — | |
| 45286 — Cover, Steering Column | ||||
| 45286-32909-01 note |
Cover, Steering Column
1986-10 → 1987-10
ended
|
CV20,SV21 RHD | — | |
| 45286-32909-01 note |
Cover, Steering Column
1987-10 → 1988-08
ended
|
CV20,SV21,25 RHD | — | |
| 45286-32909-02 note |
Cover, Steering Column
1987-10 → 1988-08
ended
|
CV20,SV21 WG RHD | — | |
| 45286-32909-05 note |
Cover, Steering Column
1987-10 → 1988-08
ended
|
CV20,SV21,25 RHD | — | |
| 45286-32910-01 note |
Cover, Steering Column
1986-10 → 1987-10
ended
|
CV20,SV2# LHD | — | |
| 45286-32913-01 note |
Cover, Steering Column
1986-10 → 1987-10
ended
|
CV20,SV2# LHD | — | |
| 45286-32917-01 note |
Cover, Steering Column
1987-10 → 1988-08
ended
|
CV20,SV20,21,VZV21 LHD | — | |
| 45288A — Spacer, Column Cover | ||||
| 45288-30010 |
Spacer, Column Cover
1986-10 → 1987-10
ended
|
CV20 RHD XL | — | |
| 45288-30010 |
Spacer, Column Cover
1987-10 → 1988-08
ended
|
CV20 RHD XL | — | |
| 45288-32040 |
Spacer, Column Cover
1986-10 → 1987-10
ended
|
CV20,SV2# LHD (XL,XLI) | — | |
| 45288-32040 |
Spacer, Column Cover
1987-10 → 1988-08
ended
|
SV25 LHD;CV20,SV20,21 LHD (XL,XLI) | — | |
| 45288B — Cover, Steering Column, Upper | ||||
| 45288-32030-01 note |
Cover, Steering Column, Upper
1986-10 → 1987-10
ended
|
CV20,SV2# LHD | — | |
| 45288-32031-01 note |
Cover, Steering Column, Upper
1987-10 → 1988-08
ended
|
CV20,SV2# LHD | — | |
| 45808 — Stopper Sub-assy, Steering Shaft Thrust | ||||
| 45808-32010 |
Stopper Sub-assy, Steering Shaft Thrust
1986-10 → 1987-10
ended
|
CV20,SV2# | — | |
| 45808-32010 |
Stopper Sub-assy, Steering Shaft Thrust
1987-10 → 1987-10
ended
|
SV21 LHD | — | |
| 45808-32010 |
Stopper Sub-assy, Steering Shaft Thrust
1987-10 → 1988-08
ended
|
CV20,SV2#,VZV21 | — | |
| 45817A — Ring, O(FOR STEERING SHAFT THRUST STOPPER) | ||||
| 90301-54002 |
Ring, O(FOR STEERING SHAFT THRUST STOPPER)
1986-10 → 1987-10
ended
|
CV20,SV2# | — | |
| 90301-54002 |
Ring, O(FOR STEERING SHAFT THRUST STOPPER)
1987-10 → 1987-10
ended
|
SV21 LHD | — | |
| 90301-54002 |
Ring, O(FOR STEERING SHAFT THRUST STOPPER)
1987-10 → 1988-08
ended
|
CV20,SV2#,VZV21 | — | |
| 45870 — Tube Assy, Steering Column | ||||
| 45870-32020 |
Tube Assy, Steering Column
1986-10 → 1987-10
ended
|
CV20 RHD XL | — | |
| 45870-32020 |
Tube Assy, Steering Column
1987-10 → 1988-08
ended
|
CV20 RHD XL | — | |
| 45870-32070 |
Tube Assy, Steering Column
1986-10 → 1988-08
ended
|
CV20,SV2# LHD | — | |
| 45870-32080 note |
Tube Assy, Steering Column
1986-10 → 1987-10
ended
|
CV20,SV21 RHD | — | |
| 45870-32080 note |
Tube Assy, Steering Column
1987-10 → 1988-08
ended
|
CV20 RHD XL | — | |
| 45870-32080 |
Tube Assy, Steering Column
1987-10 → 1988-08
ended
|
CV20,SV21,25 RHD (GL,GLI) | — | |
| 45870-32110 note |
Tube Assy, Steering Column
1987-10 → 1987-11
ended
|
SV20 | — | |
| 45870-32110 note |
Tube Assy, Steering Column
1987-10 → 1987-10
ended
|
SV21 LHD | — | |
| 45870-32110 note |
Tube Assy, Steering Column
1986-10 → 1987-10
ended
|
CV20,SV2# LHD | — | |
| 45870-32110 |
Tube Assy, Steering Column
1987-10 → 1988-08
ended
|
VZV21 | — | |
| 45870-32110 note |
Tube Assy, Steering Column
1987-10 → 1988-08
ended
|
CV20,SV25 LHD | — | |
| 45870-32110 note |
Tube Assy, Steering Column
1987-11 → 1988-08
ended
|
SV20,21 LHD | — | |
| 45870-32110 note |
Tube Assy, Steering Column
1987-10 → 1987-11
ended
|
SV21 LHD | — | |
| 45878 — Bracket, Steering Column Upper Support | ||||
| 45878-32030 |
Bracket, Steering Column Upper Support
1987-10 → 1988-08
ended
|
CV20,SV21,25 RHD | — | |
| 45878-32030 |
Bracket, Steering Column Upper Support
1986-10 → 1987-10
ended
|
CV20,SV21 RHD | — | |
| 45878-32040 |
Bracket, Steering Column Upper Support
1986-10 → 1988-08
ended
|
CV20,SV2# LHD | — | |
| 45897 — Bolt, Steering Lock Set | ||||
| 45897-12020 |
Bolt, Steering Lock Set
1986-10 → 1988-08
ended
|
CV20,SV2# | — | |
| 45897-32010 note |
Bolt, Steering Lock Set
1986-10 → 1987-10
ended
|
CV20,SV2# LHD | — | |
| 45897-32010 note |
Bolt, Steering Lock Set
1987-10 → 1987-10
ended
|
SV21 LHD | — | |
| 45897-32010 note |
Bolt, Steering Lock Set
1987-10 → 1987-11
ended
|
SV20 | — | |
| 45897-32010 note |
Bolt, Steering Lock Set
1987-10 → 1987-11
ended
|
SV21 LHD | — | |
| 45897-32010 |
Bolt, Steering Lock Set
1987-10 → 1988-08
ended
|
VZV21 | — | |
| 45897-32010 note |
Bolt, Steering Lock Set
1987-10 → 1988-08
ended
|
CV20,SV25 LHD | — | |
| 45897-32010 note |
Bolt, Steering Lock Set
1987-11 → 1988-08
ended
|
SV20,21 LHD | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
