Toyota Camry

1986-10 → 1988-08 · chassis SV2#,CV20,VZV21 · catalogue 281530 · Europe

Discontinued model Data version 1989-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

22 part groups · 5 illustrations

Illustrations

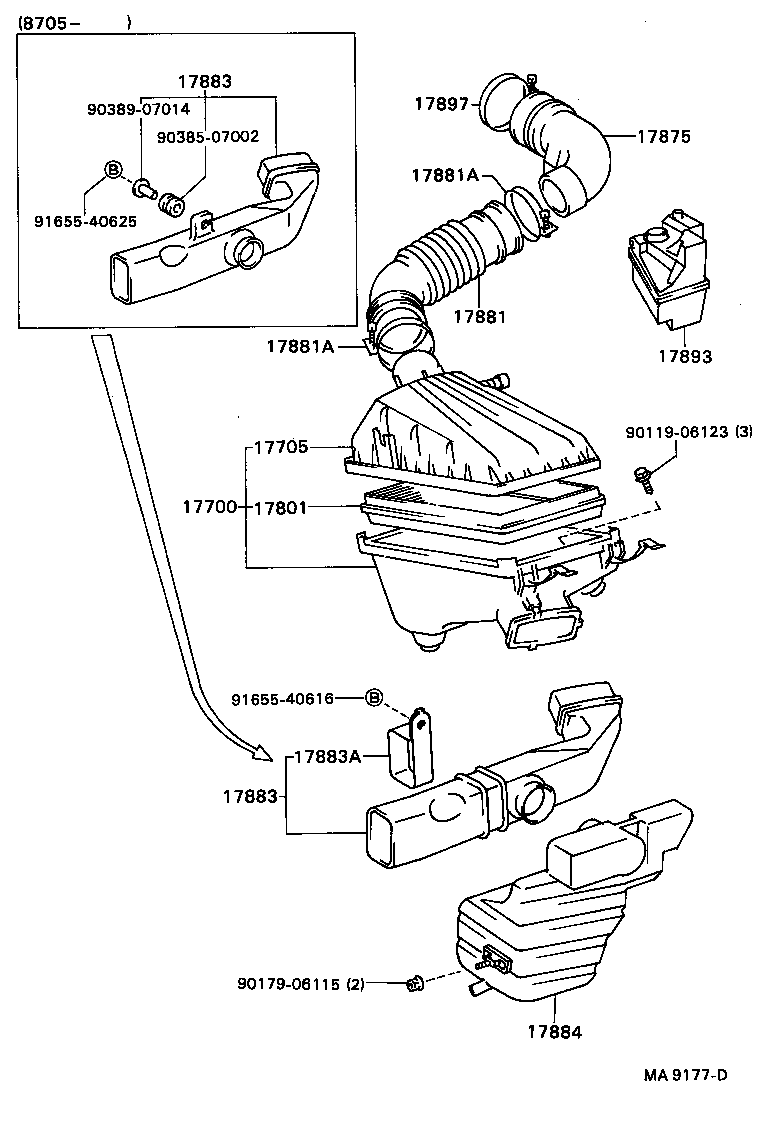

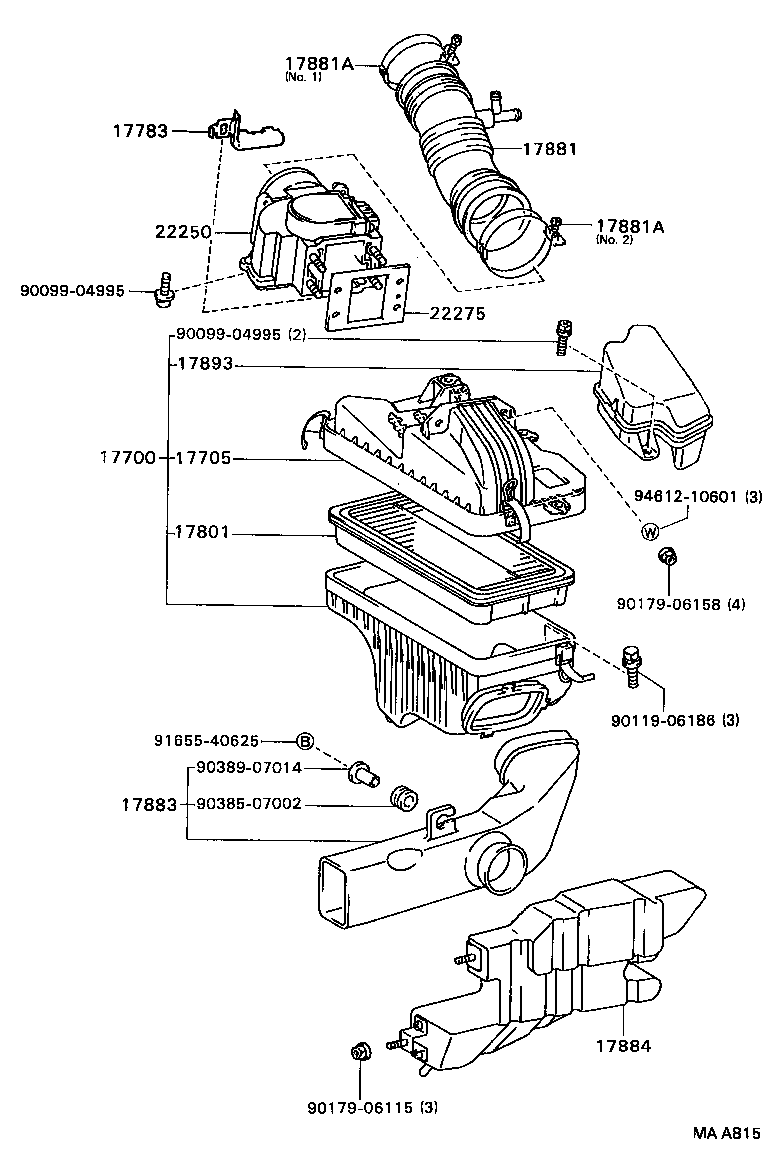

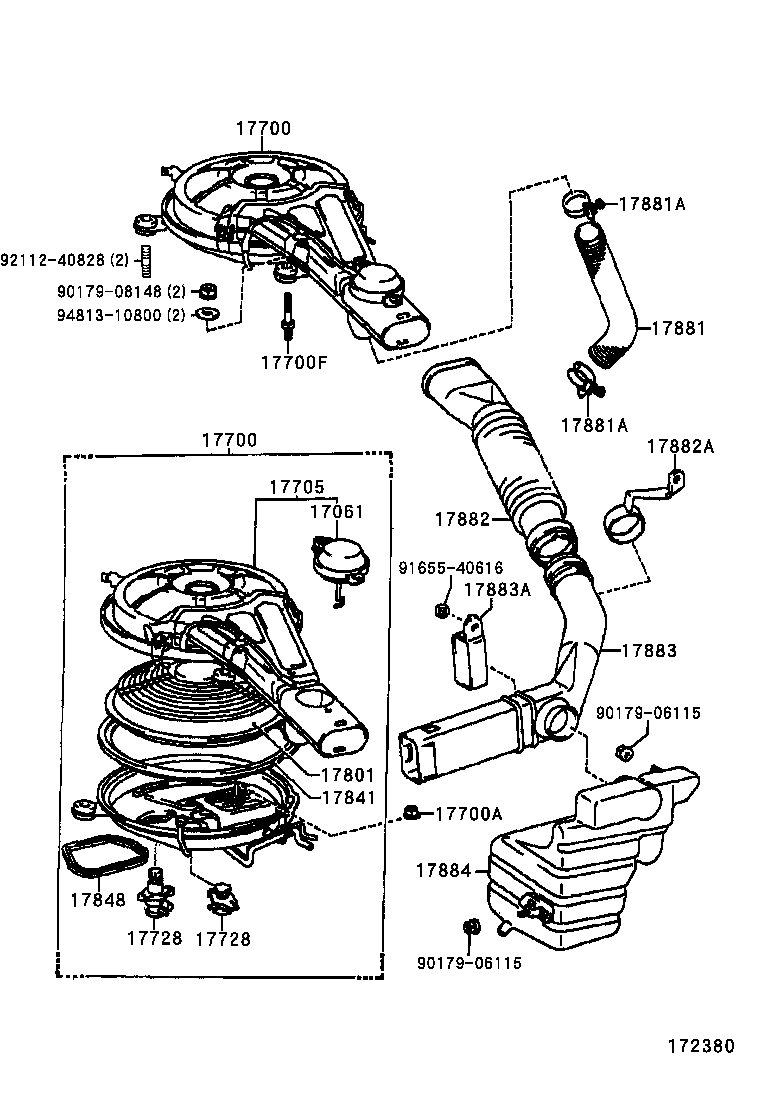

Figure MA9079B MA9079B 1986-10 → — Figure 172380 172380 1986-10 → — Figure MA9177D MA9177D 1986-10 → — Figure MA9178B MA9178B 1986-10 → — Figure MAA815 MAA815 1988-02 → —

Part groups

PNCDescription
17061 Diaphragm Sub-assy
17700 Cleaner Assy, Air
17700A Nut, Wing(FOR AIR CLEANER)
17700F Bolt, Stud(FOR AIR CLEANER SETTING)
17705 Cap Sub-assy, Air Cleaner
17728 Valve, Thermostatic
17783 Plate, Air Cleaner Baffle
17801 Element Sub-assy, Air Cleaner Filter
17841 Gasket, Filter Element
17848 Gasket, Air Cleaner TO Carburetor
17875 Pipe, Intake Air Connector
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882 Hose, Air Cleaner, NO.2
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17883 Hose, Air Cleaner, NO.3
17883A Clamp(FOR AIR CLEANER HOSE, NO.3)
17884 Hose, Air Cleaner, NO.4
17893 Resonator, Intake Air
17897 Clamp, Hose(FOR AIR CLEANER)
22250 Meter Assy, Intake Air Flow
22275 Gasket, Air Flow Meter
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
