Toyota Camry

1986-10 → 1988-08 · chassis SV2#,CV20,VZV21 · catalogue 281530 · Europe

Discontinued model Data version 1989-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clutch Pedal & Flexible Hose

24 part groups · 3 illustrations

Illustrations

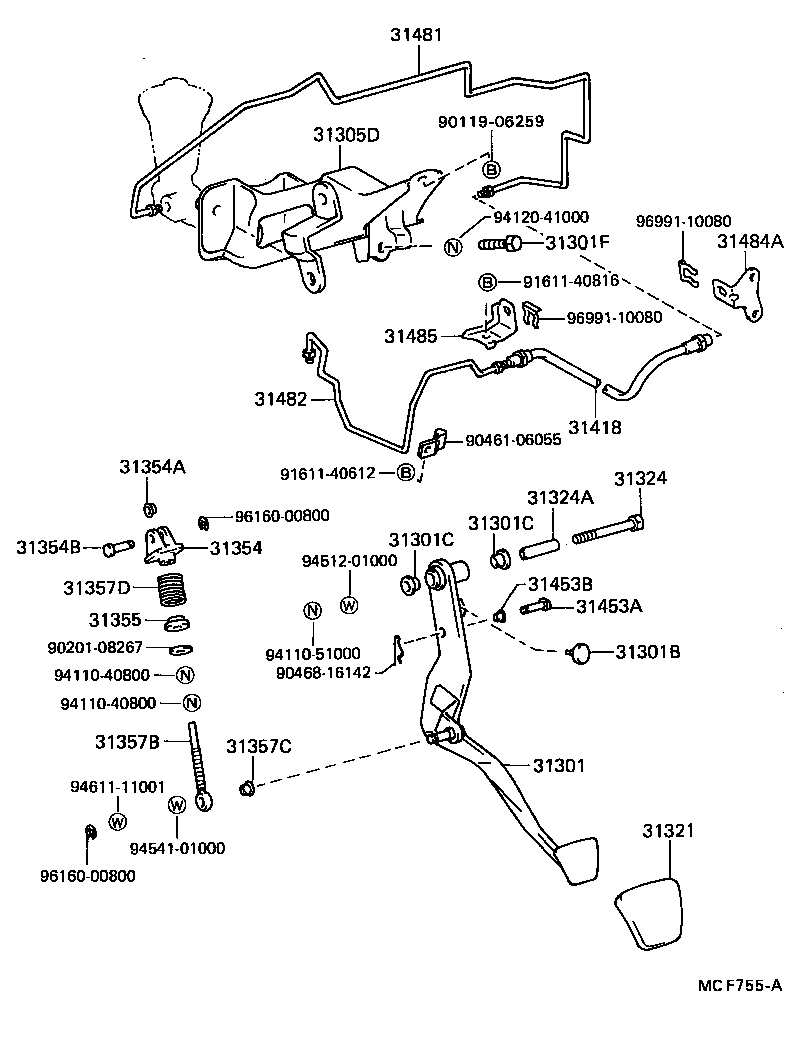

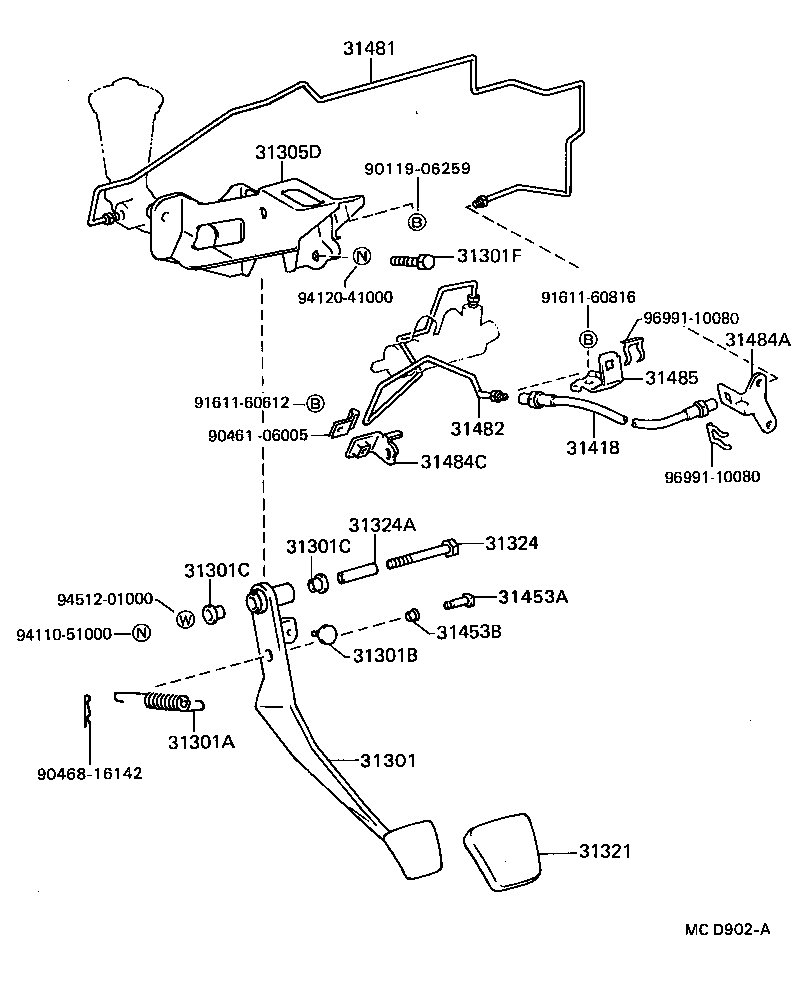

Figure MCD532 MCD532 1986-10 → — Figure MCD902A MCD902A 1986-10 → — Figure MCF755A MCF755A 1988-02 → —

Part groups

PNCDescription
31301 Pedal Sub-assy, Clutch
31301A Spring(FOR CLUTCH PEDAL)
31301B Cushion, NO.1(FOR CLUTCH PEDAL)
31301C Bush(FOR CLUTCH PEDAL)
31301F Bolt(FOR CLUTCH PEDAL STOPPER)
31305D Support Sub-assy, Clutch Pedal
31321 Pad, Clutch Pedal
31324 Shaft, Clutch Pedal
31324A Collar, Clutch Pedal Shaft
31354 Seat, Clutch Pedal Spring, Upper
31354A Bush(FOR CLUTCH PEDAL SPRING SEAT UPPER)
31354B Pin, W/Hole(FOR CLUTCH PEDAL SPRING SEAT UPPER)
31355 Seat, Clutch Pedal Spring, Lower
31357B Rod, Over Center Adjusting
31357C Bush(FOR OVER CENTER ADJUSTING ROD)
31357D Spring, Compression(FOR OVER CENTER ADJUSTING ROD)
31418 Hose, Clutch
31453A Pin, W/Hole(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
31453B Bush(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
31481 Tube, Clutch Master Cylinder TO Flexible Hose
31482 Tube, Clutch Release Cylinder TO Flexible Hose
31484A Bracket, Flexible Hose, NO.1(FOR CLUTCH)
31484C Bracket, Clutch Tube, NO.1
31485 Bracket, Flexible Hose, NO.2(FOR CLUTCH)
