Toyota Camry

1986-10 → 1988-08 · chassis SV2#,CV20,VZV21 · catalogue 281530 · Europe

Discontinued model Data version 1989-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

12 part groups · 2 illustrations

Illustrations

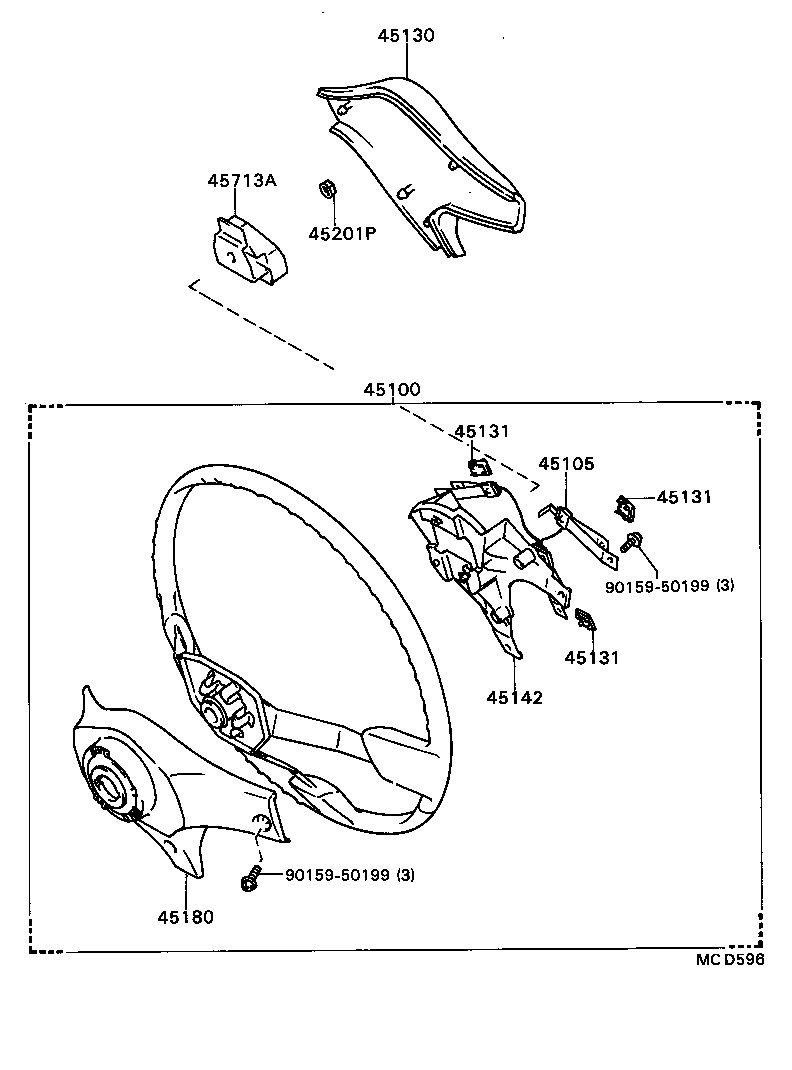

Figure MCD595 MCD595 1986-10 → — Figure MCD596 MCD596 1986-10 → —

Part groups

PNCDescription
45100 Wheel Assy, Steering
45105 Plate Sub-assy, Horn Button Contact, NO.1
45105C Collar(FOR HORN BUTTON CONTACT PLATE)
45130 Button Assy, Horn
45131 Button, Horn, NO.1
45137A Plate, Horn Button Contact, NO.2
45142 Seat, Horn Button Contact, NO.1
45146 Spring, Horn Button Contact
45156A Seat, Horn Contact Spring Set
45180 Cover Sub-assy, Steering Wheel
45201P Nut, Steering Wheel Set
45713A Damper, Steering Shake
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
