Toyota Camry

1986-10 → 1988-08 · chassis SV2#,CV20,VZV21 · catalogue 281530 · Europe

Discontinued model Data version 1989-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Master Cylinder

12 part groups · 3 illustrations

Illustrations

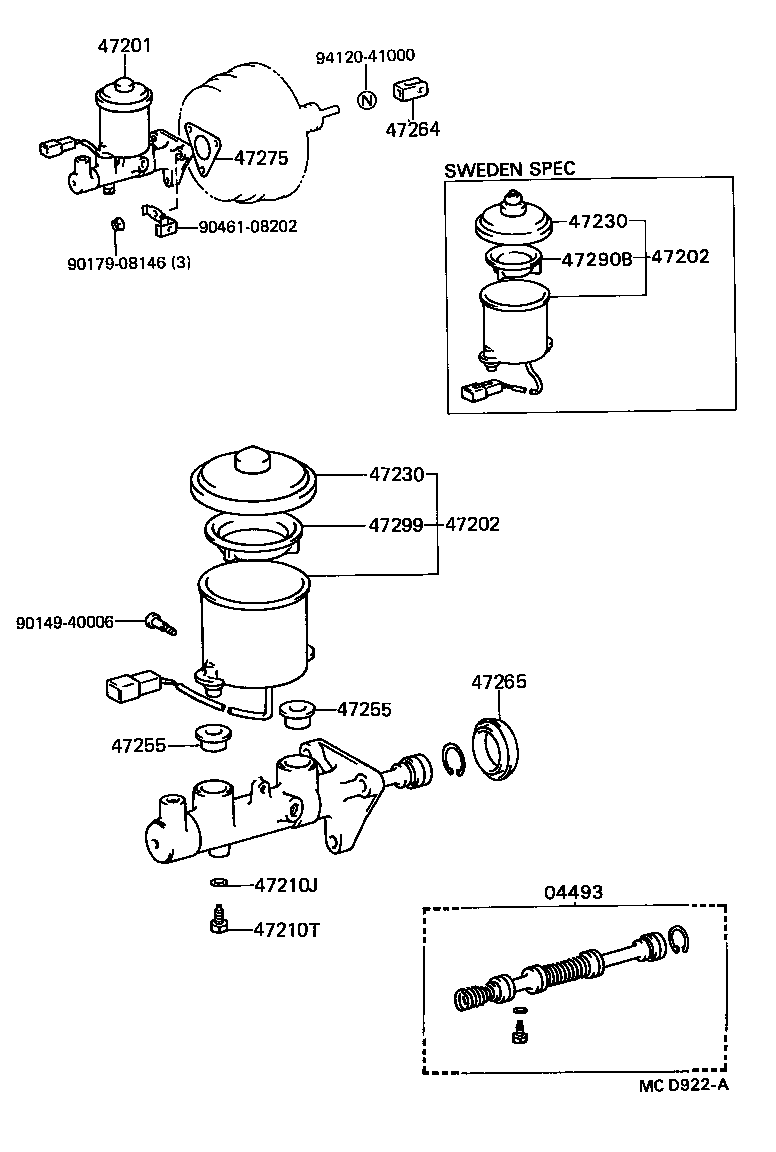

Figure MCD921A MCD921A 1986-10 → — Figure MCD922A MCD922A 1986-10 → — Figure MCE192 MCE192 1987-08 → —

Part groups

PNCDescription
04493 Cylinder Kit, Brake Master
47201 Cylinder Sub-assy, Brake Master
47202 Reservoir Sub-assy, Brake Master Cylinder
47210J Gasket(FOR MASTER CYLINDER)
47210T Bolt(FOR BRAKE MASTER CYLINDER)
47230 Cap Assy, Brake Master Cylinder Reservoir Filler
47255 Grommet, Master Cylinder Reservoir
47264 Clevis, Master Cylinder Push Rod
47265 Boot, Master Cylinder
47275 Gasket, Brake Master Cylinder
47290B Strainer Assy, Brake Master Cylinder Reservoir
47299 Strainer, Brake Master Cylinder Reservoir
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
